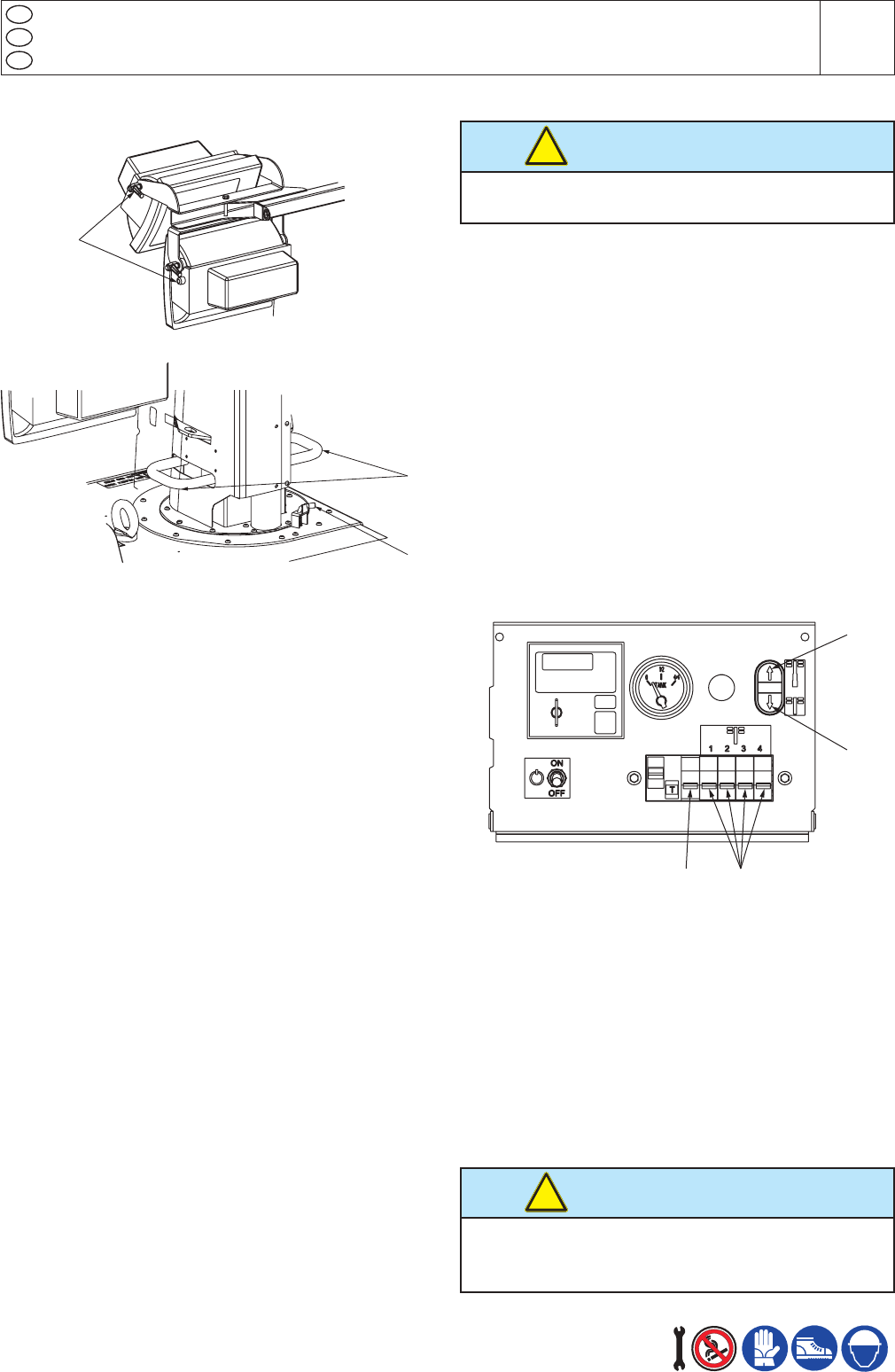

ORIENTATION OF FLOODLIGHTS AND MAST

The oodlights beam can be oriented, according to

the needs, by acting in the following two ways:

• by adjusting the inclination of each oodlight

• by rotating the mast in the desired direction.

To adjust the angle of the oodlights loosen the

clamping lever (1), turn the oodlight to the desired

position and lock again.

To rotate the mast lift the pin (2) and turn it in such

a way as to keep it extracted. Direct the mast in the

desired direction by acting on the handles (3). Un-

lock the pin (2) and slightly rotate the mast until the

pin gets into a hole, thereby locking of the rotation

of the mast.

RAISING AND LOWERING OF THE MAST

ATTENTION

Before starting the engine, make sure that switches

of the lamps on the panel are all in OFF position.

Start-up

Floodlights orientation and mast raising/lowering

23.1

REV.0-10/13

ATTENTION

After switch off, the metal halide lamps require a

cooling time of about 15 minutes before subse-

quent switch on.

Start the generator with the key on the front panel,

following the instructions in the section "START AND

STOP (EP6)".

Put the circuit breaker (A) in ON position.

Activate the raise of the mast through the relevant

button on the control panel (B) until the mast is fully

extended.

Turn on the lamps by means of the circuit breakers

(D) on the front panel.

After use, turn off the lamps before actuating the

lowering of the mast.

Lower the mast by pressing the appropriate button

EMERGENCY LOWERING OF THE MAST

In case of emergency due to engine failure, or due

to failure of the hydraulic or the electrical system,

use the bypass tap of the solenoid valve to lower

the mast. When the mast is completely down, close

the tap again.
