Start-up
Preliminary checks and positioning
M
23
REV.0-10/13
18/10/13 M23_TF-GB
I
GB
F

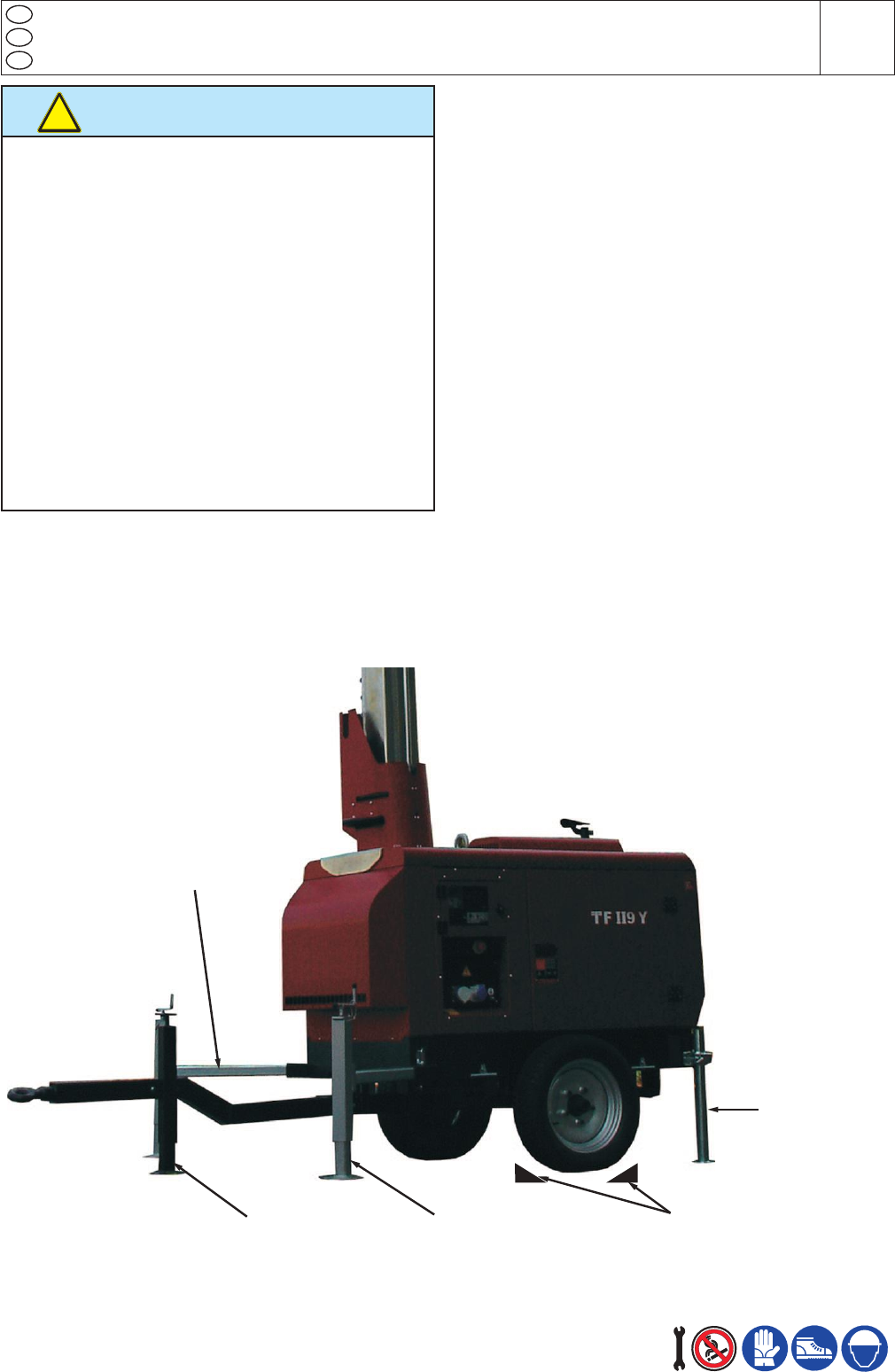

A Wheel chocks
B. Outriggers extension arm
C. Front outrigger
D. Rear outrigger
E. Jack
ATTENTION
Before operating the lighting tower make sure
that all safety regulations concerning installation
and use are satised, as indicated in the relevant
section of this manual!
In particular, be sure that:
• the surface on which the lighting tower is placed
is at and free of obstacles
• the wind speed does not exceed 80 km/h
• there are no obstacles or overhead power lines
above the lighting tower
• the status of the lighting tower is adequate, in
general
• the lifting ropes of the mast are in perfect con-
dition.
!
PRELIMINARY CHECKS
• Check the engine oil level, hydraulic oil and radia-
tor uid
• Check the fuel level
POSITIONING OF THE OUTRIGGERS AND LE-
VELLING OF THE TOWER
• Block the wheels using the hand brake (road trai-
ler) or chocks (site-tow)
• Raise the locking pins of the extension arms of
the front outriggers and extract them until the pins
block again the arms in their extended position.
• Lower the rear outriggers and secure them with
the locking lever
• Lower the front outriggers and adjust the lighting
tower position by acting on their handles, looking
at the bubble level on the machine, until the hori-
zontal position is reached.
• Lower the jack of the drawbar (site-tow) or the
jockey wheel (road trailer) until it is resting on the
ground.
