M40DV-PFC Peninsula Gas Fireplace
Installation
Operation
Lighting Instructions
See Pages 15-16.
Burner Adjustment
The M40DV-PFC is equipped with an adjustable burner, allowing you
to raise or lower the flames. To adjust the flames, locate the black knob
marked 'Hi-Lo', in the centre of the gas control valve (See Figure 24).
The front burners are not adjustable.
n To raise the flame height, turn the black knob (located behind the
lower trim) counterclockwise.
n To lower the flame height, turn clockwise.

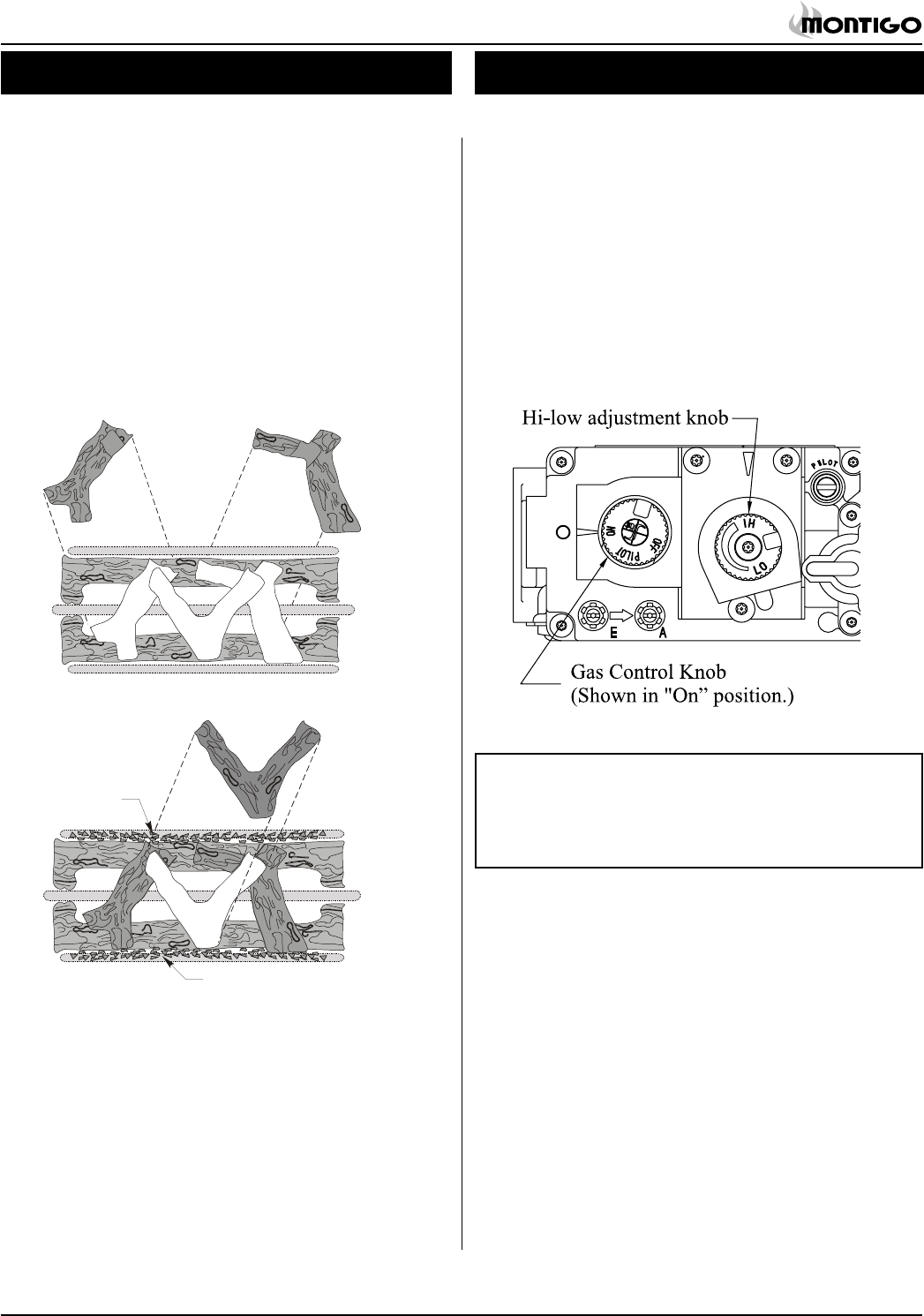

Figure 24. 'Hi-Lo' Adjustment on the M40DV-PFC's gas valve.
Note: M40DV-PFC-I (electronic ignition) or M40DV-PFC-MH
(mobile home) models do not feature hi/lo adjustment.
For electronic ignition (HSI) models see figure 21, for
mobile home approved models see Appendix B.
Figure 23b. Completed Installation.
Figure 23a. Log Installation.
Log 'A'
Log 'B'
Log 'C'
Log 'D'
Log 'E'
Ember material
Ember
material
Installing the Logs and Embers
Bottom Logs
The M40DV-PFC is supplied with five (5) fibre logs. The two large
bottom logs (logs "A" and "B") are mounted on the burner grate by
placing them into the slots.
Top Logs
Place logs "C" and "D" into their mating positions on the large logs
as shown in Figure 23a below. Log "E" is mounted on top of logs "C"
and "D" as shown in Figure 23b.
WARNING:WARNING:
WARNING:WARNING:
WARNING: If logs are not placed properly, excessive
sooting will result.
Installing the Ember Material
The ember material is supplied in two packages. Place the material
evenly along both ember burner tubes, next to logs 'A' and 'B'. Refer to
figure 23b. Ensure that the burner carries over properly after placing
the embers.
