Specifications

P/N XG0205
Page 10
M40DV-PFC Peninsula Gas Fireplace
Installation

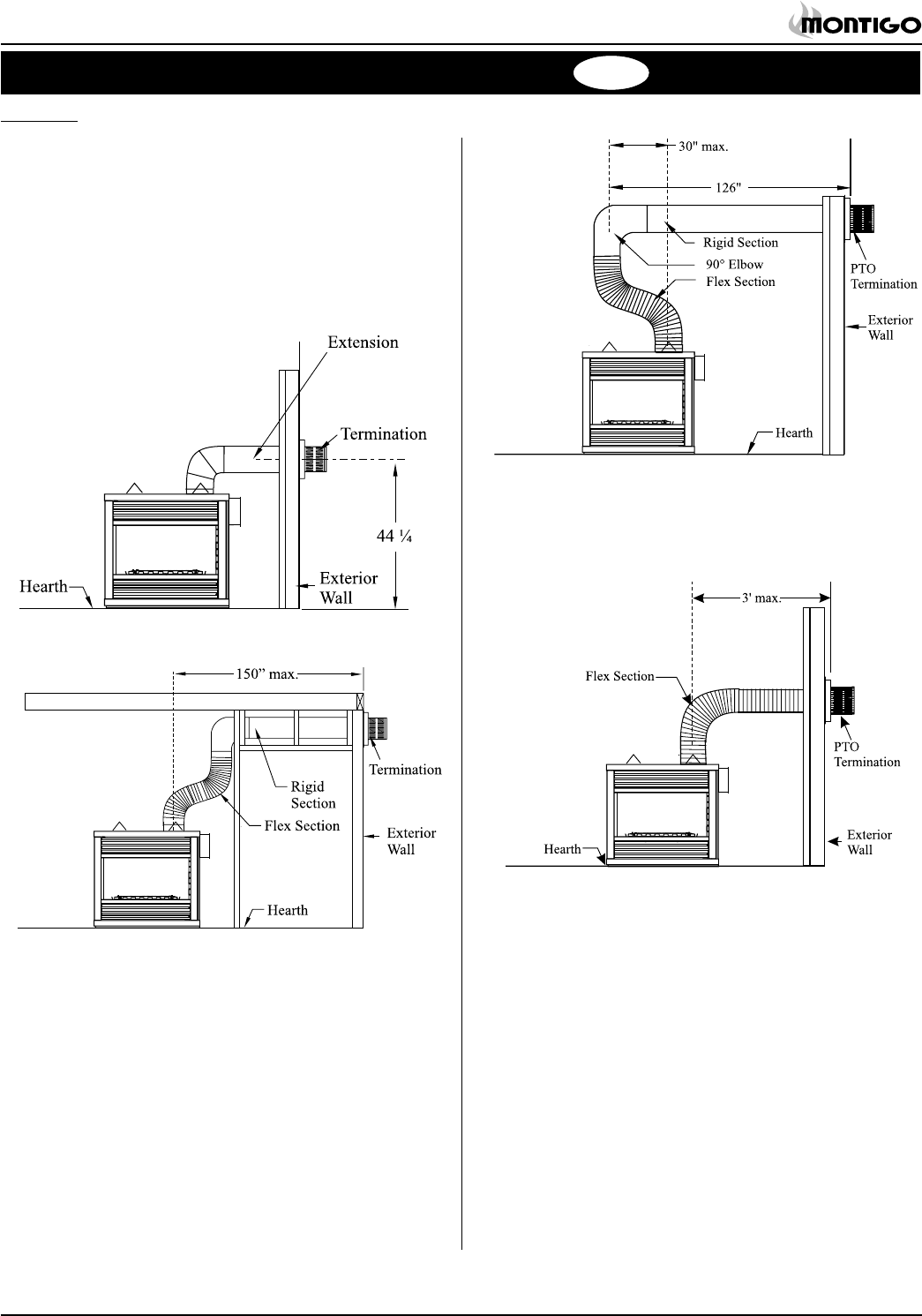

Figure 14b. Retracted Installation.
Figure 14a. Extended installation.
Figure 13. Short Horizontal Installation.
Example:
A 10' section and an elbow used in conjunction with 3 ft. flex section
(PFL-3) will, when extended in a five foot chase, allow for a maximum
horizontal run of twelve and one-half feet from the centre of the
fireplace to outside wall and a minimum of 7'6" when retracted in
opposite direction. (See Figure 14a and 14b.)
"D" flex sections and "E" solid sections may be used in conjunction with
one another to obtain different possible horizontal length installations.
NOTE: Flex section must not exceed maximum horizontal length of 3
feet. (See Figure 15.)
Top Vent
Figure 15. Horizontal flex installation.
