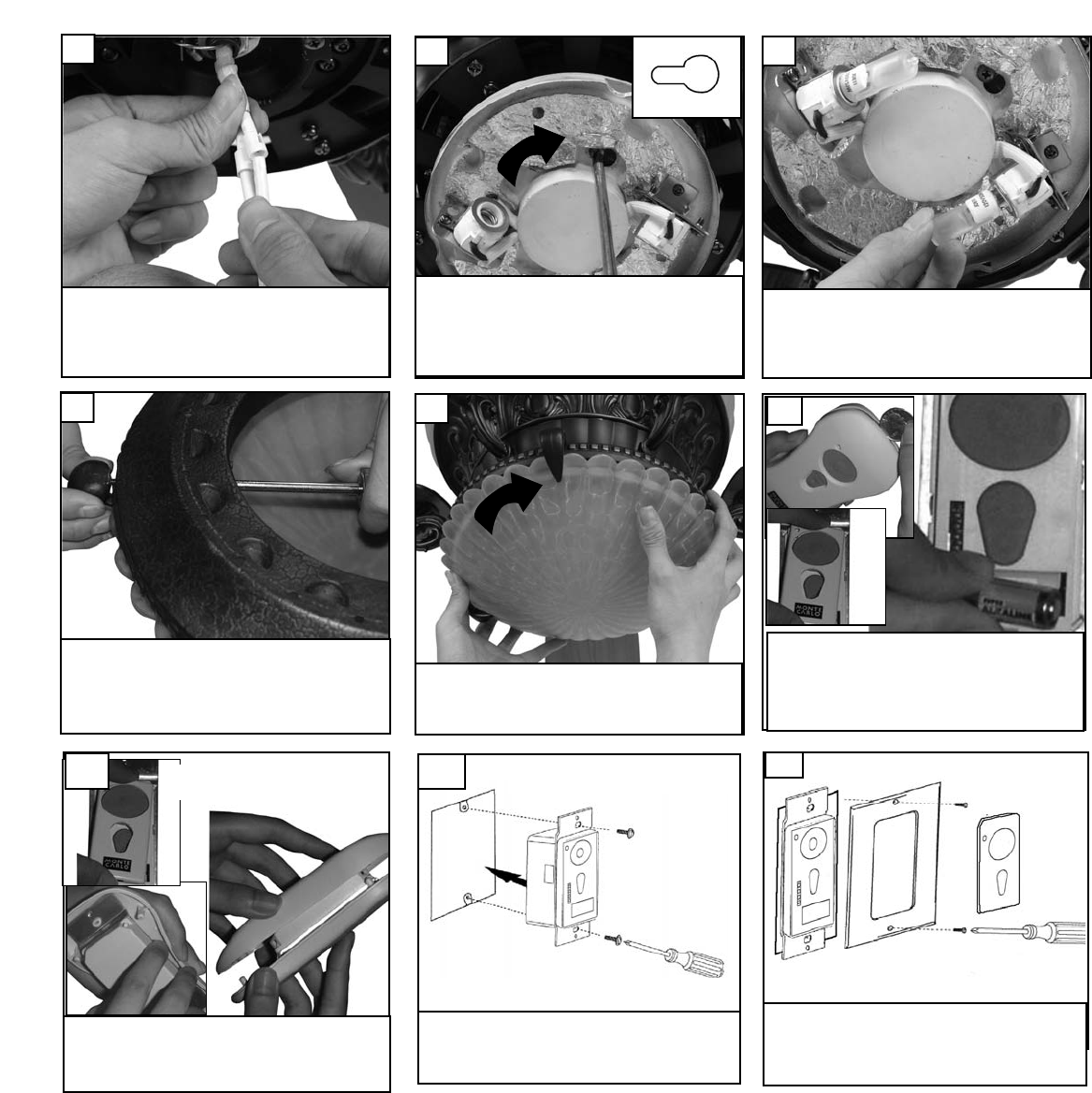

Installation Guide

I
nstall the 2x50 watt halogen bulbs.
Do not touch bulb surface as oily
r
esidue from skin can cause the bulb
to explode.
L
ift light kit to the fan motor assembly. Align
t
he 3 screws with the key hole slot holes in the
light kit (see inset). Rotate the light kit as
s
hown. Then install the screw removed in the
p
revious step though the closed hole. Tighten
all 3 screws securely.
32
33
Twist light kit into place by turning
direction of arrow.
35
This step is for glass replacement
only. Remove 1 glass holder and place
glass in decorative body of light kit.
Replace glass holder to hold glass in
place.
34
Plug white wire from fan to white
wire from light kit. Then plug black
wire from fan to black wire from light
kit.
31
Remove cover by snaping off from top or bot-
tom. R
emo
ve battery cover. Install 12V battery
into w
all remote. Duracell MN21 / Eveready
A23 / GP 23A all 12V.Attach cover of remote
by placing over buttons and snap the battery
cover in place.
Place face plate o
v
er battery compartment and
buttons. Place remote over 2 pins on front
cover. Attach cover of remote by placing over 4
pins and snaping into place.
37
36
HAND HELD INSTALL
Install w
all control unit to outlet box
using machine screws pro
vided.
38
Attach front cover to wall control
with screws provided. Snap battery
cover in place.
39
WALL MOUNT INSTALL
