Spec Sheet
HELPFUL TIPS
For questions about your
appliance, please call 1-800-626-2000.
Product Specication Created 10/19PAGE 4 OF 4
2" (5.1) min
2 1/2"
(6.4) min
21"
(53.3)
9 1/4"
(23.5)
2"
(5.1) min
3/4" thick platform
required
2 7/8"
(7.4) max
Junction box
can protrude
from back wall
of installation
(Not cabinet wall)
C
L
GAS
31 1/4"
(79.4)
27 1/4"
(69.2)
ZET9050SHSS
SIDE-BY-SIDE INSTALLATION
FRONT VIEW OF CUTOUTS
STANDARD INSTALLATION
SIDE VIEW
STANDARD INSTALLATION
SIDE VIEW
FRONT VIEW
ELEC. ELEC.
ELEC.
Wall oven
Cooktop
GAS
ELEC.
Wall oven
2" (5.1) min
2 1/2"
(6.4) min
21"
(53.3)
9 1/4"
(23.5)
2"
(5.1) min
3/4" thick platform
required
2 7/8"
(7.4) max
Junction box
can protrude
from back wall
of installation
(Not cabinet wall)
C
L
GAS
31 1/4"
(79.4)
27 1/4"
(69.2)
ZET9050SHSS
SIDE-BY-SIDE INSTALLATION
FRONT VIEW OF CUTOUTS
STANDARD INSTALLATION
SIDE VIEW
STANDARD INSTALLATION
SIDE VIEW
FRONT VIEW
ELEC. ELEC.
ELEC.
Wall oven
Cooktop
GAS
ELEC.
Wall oven

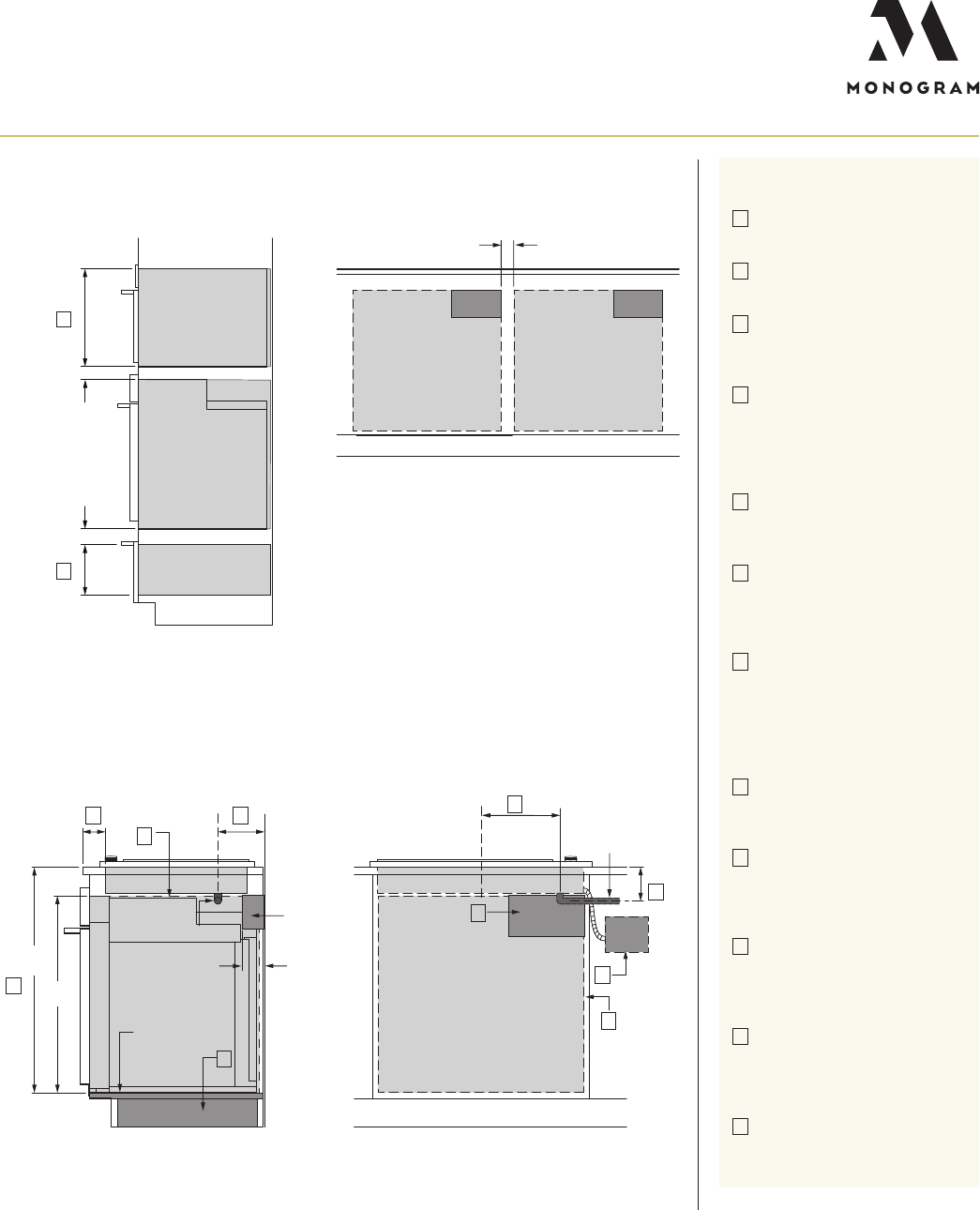

INSTALLATION WITH ADVANTIUM
AND WARMING DRAWER
SIDE BY SIDE INSTALLATION
A
Dimensions per Advantium or
Microwave Oven requirements
B
Dimension per Warming Drawer
requirements
C
Note this oven is only approved to
be installed under specific models
as labeled on this unit.
D
Support platform made of 3/4"
(1.9 cm) wood is required. Must
be capable of supporting 220 lbs
(99 kg). Support Platform base
to be same height as toe kick.
E
Junction box location for wall
oven. (May also be located in
adjacent cabinet).
F
Gas regulator and electric
connections for cooktops must be
located in an adjacent accessible
location to the right
G
Top and/or side fillers may be
necessary if unit is positioned
between existing cabinets. Be
sure they are attached securely,
since they will anchor the oven
in the cabinet.
H
For flush oven installations, the
cooktop cutout must be set back
2 1/2" (6.4 cm) plus the cleat setback.
I
Dimension varies based on model.
example:
ZGU36 5 1/2" (14.0 cm) (from wall)
ZGU30 4 5/16" (11.0 cm) (from wall)
J
Dimension varies based on model.
example:
ZGU36 0" (centerline)
ZGU30 12 1/16" (30.6 cm) (centerline)
K
Dimension varies based on model
ZGU36: 5 1/2" (13.9 cm) requires use
of a 90° 1/2" FPT x 1/2" FL brass
street elbow ZGU30: 5" (12.7 cm)
L
From the top surface of the
countertop to the top surface of
the wall oven support platform
UNDER COOKTOP INSTALLATION
C
D
I
J
E
F
G
H
L
K
23 1/2" (59.7) min
cutout depth
27 1/4"
(69.2)
32 1/2" (82.6)
Recommended and
16 1/4" (41.3) min
Cutout location
from floor
2"
(5.1) min
2"
(5.1) min
STANDARD
INSTALLATION
STANDARD INSTALLATION
SIDE VIEW
ZET1FHSS
A
B
For more details, refer to the installation instructions for this product on Monogram.com.
Dimensions in parentheses are in centimeters unless otherwise noted.
