Datasheet
This document was generated on 07/16/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0937698628
Status:
Active
Overview: Magnetic Jacks
Description: MXMag Gigabit Ethernet 8 Core Non-PoE Single-Port RJ45 Connector, 21.40mm
Depth, 1.80mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with
Green/Yellow-Green/Yellow LEDs, Industrial Temperature, Pin in Paste Capable, with
Pick-and-Place Option, with 2kV Shield Connection, Tape and Reel
Documents:
3D Model Packaging Specification 934620002-K (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification 934620001-N (PDF) Product Literature (PDF)
General
Product Family Modular Jacks/Plugs
Series 93769
Component Type PCB Jack
Depth 21.40mm
Magnetic Yes
Overview Magnetic Jacks
Performance Category 1000Mb
Power over Ethernet (PoE) Non-PoE
Product Literature Order No 987651-2501
Product Name Magnetic Jack, MXMag, RJ45
UPC 889056789097
Physical
Color - Resin Black
Durability (mating cycles max) 2500
Inverted / Top Latch Yes
Jack Height 14.10mm
Keying to Mating Part None
Lightpipes/LEDs LEDs
Material - Metal Phosphor Bronze
Material - Plating Mating Gold over Palladium Nickel
Material - Plating Termination Tin
Material - Resin Liquid Crystal Polymer
Net Weight 6.473/g
Orientation Right Angle (Side Entry)
PCB Locator Yes
PCB Retention None
PCB Thickness - Recommended 1.57mm
Packaging Type Embossed Tape on Reel
Panel Mount Spring Tabs
Plating min - Mating 0.051µm (Au), 1.016µm (PdNi)
Port Configuration 1x1
Positions / Loaded Contacts 8/8
Surface Mount Compatible (SMC) Yes
Temperature Range - Operating -40° to +85°C
Termination Interface: Style Through Hole
Wire/Cable Type N/A
Electrical
Current - Maximum per Contact 0.5A
Grounding to PCB Yes
Grounding to Panel Yes
Shielded Yes

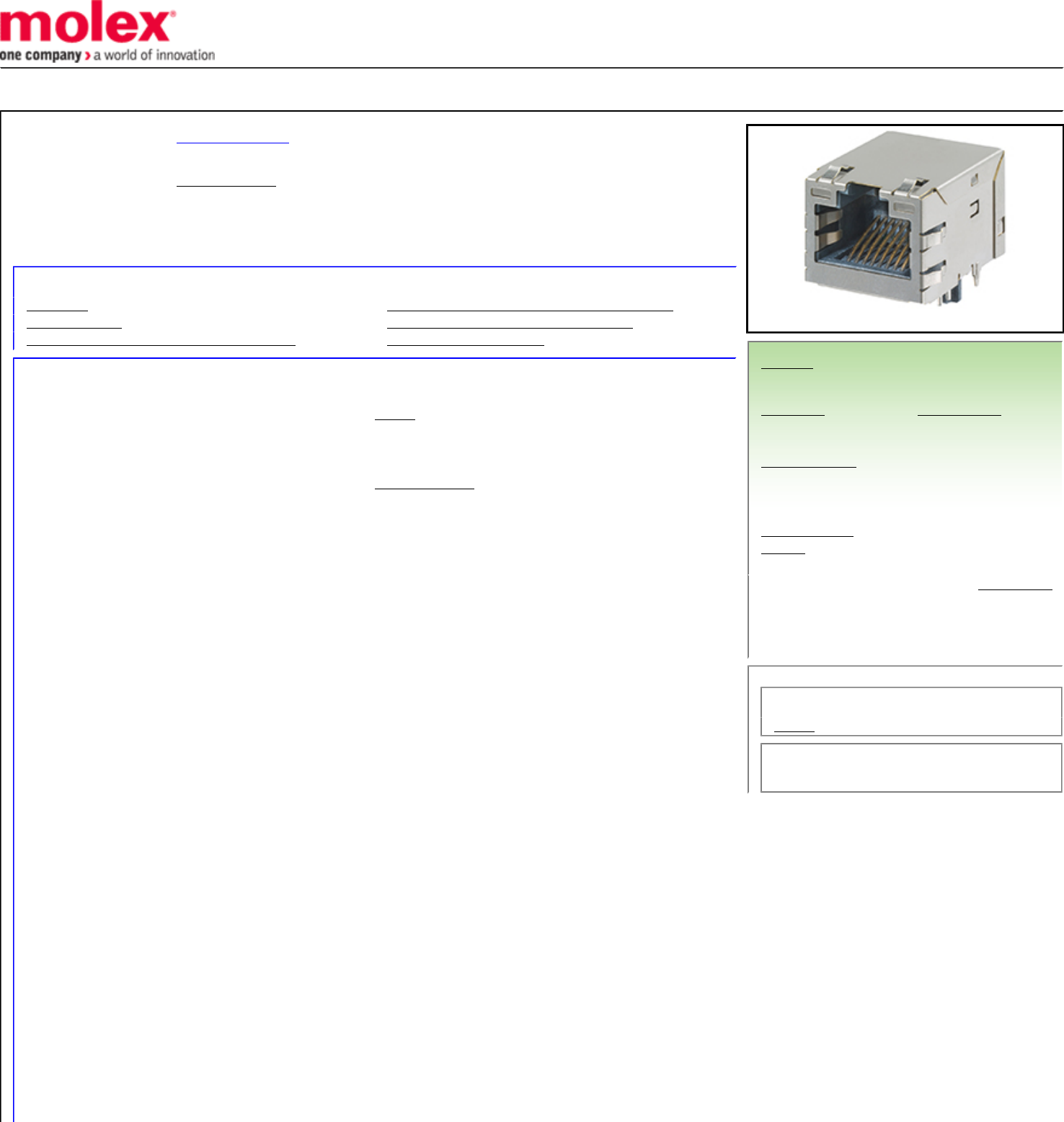

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant with
Exemption 7(c)-I
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS 50 Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
93769 Series
Mates With
IEC 60603 / TIA-1096-A
