Datasheet

This document was generated on 05/30/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0901190110
Status:
Active
Overview: C-Grid III Interconnects
Description: C-Grid III Crimp Terminal, 22-24 AWG, Reel, 0.38µm Selective Gold (Au)
Documents:
3D Model Packaging Specification PK-90119-100 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-99020-0001-001 (PDF)
General
Product Family Crimp Terminals
Series 90119
Application Signal, Wire-to-Board
Comments Left-hand feed, Left-hand feed
Crimp Quality Equipment Yes
Overview C-Grid III Interconnects
Packaging Alternative 901192110 (Loose)
Product Name C-Grid III
UPC 800753721500
Physical
Gender Female
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Net Weight 0.073/g
Packaging Type Reel
Plating min - Mating 0.381µm
Plating min - Termination 3.048µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.02-1.47mm
Wire Size AWG 22, 24
Wire Size mm² N/A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Reference - Drawing Numbers
Packaging Specification PK-90119-100
Product Specification PS-99020-0001-001
Sales Drawing SD-90119-001

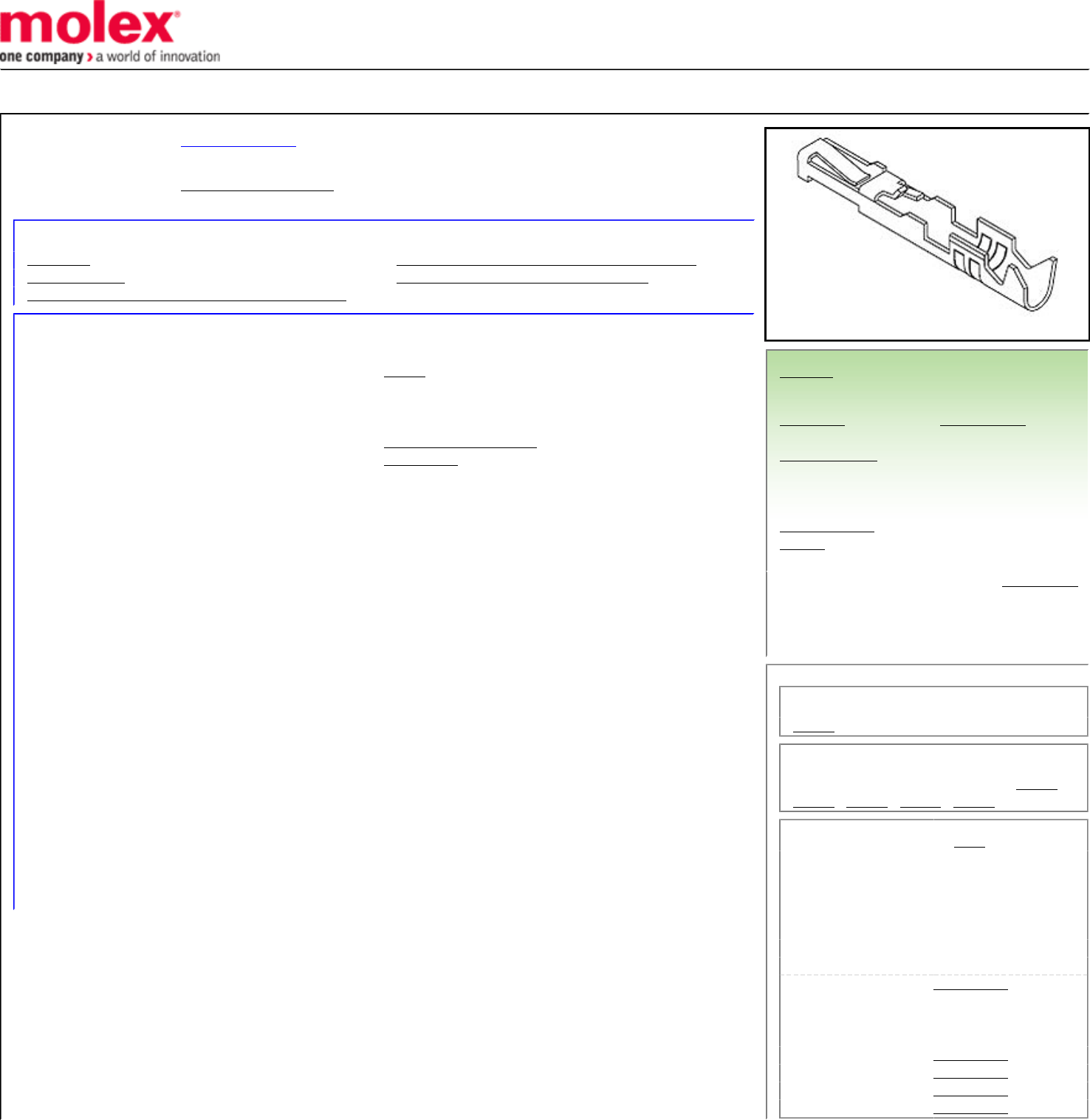

Series image - Reference only
EU ELV
Compliant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Compliant
RoHS Phthalates Not Contained
Search Parts in this Series
90119 Series
Use With
C-Grid III Modular Crimp Housing 90156 ,
90123 , 90142 , 90143 , 90160
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Hand Crimp Tool For
C-Grid III Female
Crimp Terminals,
22-24AWG
638258100
T2 Terminator Die 638514100
FineAdjust Applicator638614100
Extraction Aid 690080003
Insertion Tool 690080140
