Datasheet

This document was generated on 07/22/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0787270001
Status:
Active
Overview: micro-SIM Card Sockets
Description: 1.40mm Height Push-Pull micro-SIM Card Socket with Detect Switch, Surface Mount, 6
Circuits, Low-Halogen, Lead-Free
Documents:
Drawing (PDF) Packaging Specification PK-78727-001 (PDF)
3D Model RoHS Certificate of Compliance (PDF)
Product Specification PS-78727-001-001 (PDF)
General
Product Family Memory Card Sockets
Series 78727
Overview micro-SIM Card Sockets
Product Name micro-SIM
Style Push-Pull
UPC 884982781894
Physical
Card Detection Switch Closed
Card Entry Location Front
Circuits (Loaded) 6
Circuits (maximum) 6
Durability (mating cycles max) 500
Ejector Button Side N/A
Material - Contact Copper Alloy
Material - Plating Mating Gold over Nickel
Material - Shell Stainless Steel
Net Weight 333.639/mg
PCB Locator No
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface 2.54mm
Temperature Range - Operating -40° to +85°C
Termination Interface: Style Surface Mount
Electrical
Current - Maximum per Contact 0.5A
Shielded Yes
Voltage - Maximum 10V DC
Solder Process Data
Duration at Max. Process Temperature (seconds) 003
Lead-freeProcess Capability REFLOW
Max. Cycles at Max. Process Temperature 003
Process Temperature max. C 260
Material Info
Reference - Drawing Numbers
Packaging Specification PK-78727-001
Product Specification PS-78727-001-001
Sales Drawing SD-78727-001-000

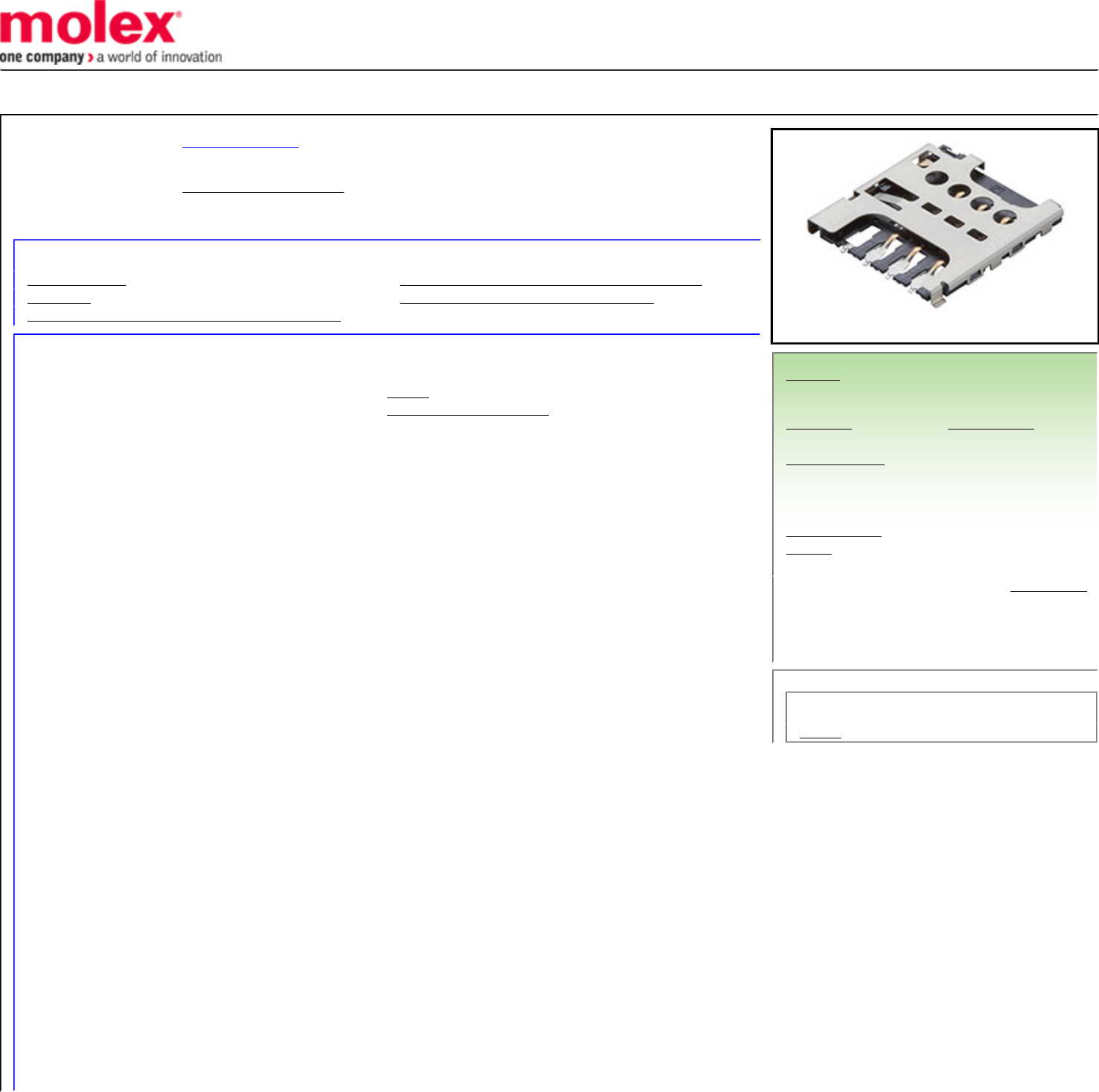

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
78727 Series
