Datasheet
This document was generated on 09/25/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
5023520600
Status:
Active
Overview: DuraClik Connector System
Description: DuraClik Wire-to-Board Header, Single Row, Right-Angle, 6 Circuits, Tin (Sn) Plating,
Natural
Documents:
3D Model Packaging Specification PK-502352-002-JP-001
(PDF)
Drawing (PDF) Packaging Specification SPK-502352-001-001 (PDF)
Product Specification PS-502351-001-001 (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
UL E29179
General
Product Family PCB Headers
Series 502352
3D Viewer Yes
Application Automotive, Signal, Wire-to-Board
CURRENT-MAX-NUMERIC 3.0
Comments The Operating Temperature Range when used with
DuraClik series 502351 is -40°C to +105°C. It is -40°C
to 125°C when used with DuraClik ISL series 560123
or TPA series 505151., The Operating Temperature
Range when used with DuraClik series 502351 is -40°C
to +105°C. It is -40°C to 125°C when used with DuraClik
ISL series 560123 or TPA series 505151.
Overview DuraClik Connector System
PITCH-MATING-NUMERIC 2.00
Product Name DuraClik
UPC 800756731735
Physical
Breakaway No
Circuits (Loaded) 6
Circuits (maximum) 6
Color - Resin Natural
Durability (mating cycles max) 30
First Mate / Last Break No
Flammability SC-0
Glow-Wire Capable No
Keying to Mating Part Yes
Lock to Mating Part Yes
Mated Height 6.40mm
Material - Metal Copper Alloy
Material - Plating Mating Tin over Nickel
Material - Resin Polyamide
Net Weight 0.772/g
Number of Rows 1
Orientation Right Angle
PCB Locator No
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface 2.00mm
Polarized to Mating Part Yes
Polarized to PCB Yes

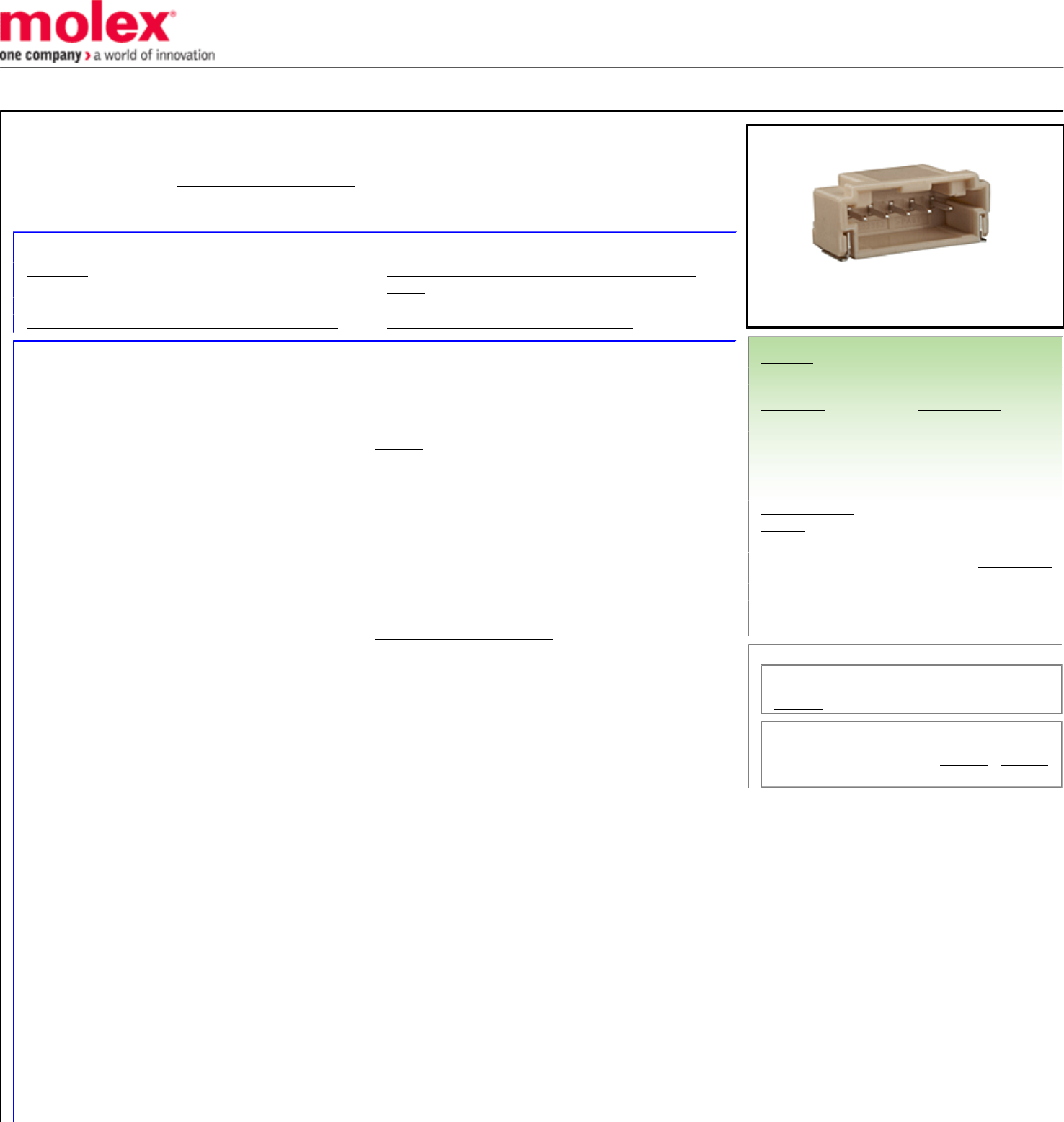

Series image - Reference only
EU ELV
Compliant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/71/2019 (16 July
2019)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Compliant
RoHS Phthalates Not Contained
Search Parts in this Series
502352 Series
Mates With
DuraClik Crimp Housings 502351 , 560123 ,
505151
