Datasheet

This document was generated on 07/19/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0430310003
Status:
Active
Overview: Micro-Fit Connector System
Description: Micro-Fit 3.0 Crimp Terminal, Male, with 0.76µm Select Gold (Au) Plated Phosphor
Bronze Contact, 20-24 AWG, Reel
Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Test Summary TS-43045-002-001 (PDF) Product Literature (PDF)
Test Summary TS-46235-001-001 (PDF)
General
Product Family Crimp Terminals
Series 43031
Application Power, Wire-to-Wire
Crimp Quality Equipment Yes
Overview Micro-Fit Connector System
Packaging Alternative 430310009 (Loose)
Product Literature Order No 987650-5984
Product Name Micro-Fit 3.0
UPC 800754369435
Physical
Gender Male
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Net Weight 0.061/g
Packaging Type Reel
Plating min - Mating 0.762µm
Plating min - Termination 2.540µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.85mm max.
Wire Size AWG 20, 22, 24
Wire Size mm² N/A
Electrical
Current - Maximum per Contact 8.5A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Reference - Drawing Numbers
Sales Drawing SD-43031-XXXX
Test Summary TS-43045-002-001, TS-46235-001-001

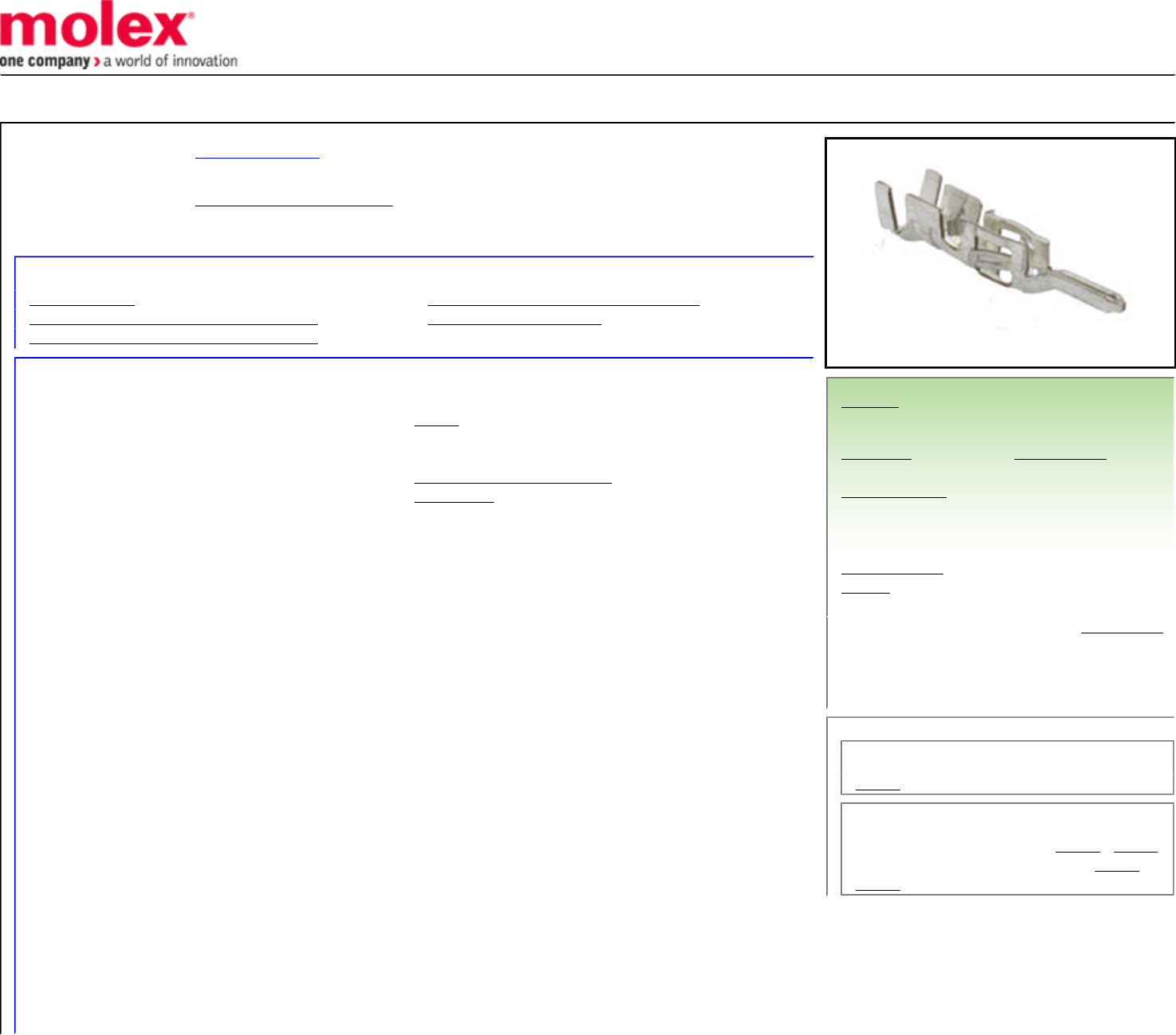

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
43031 Series
Use With
Micro-Fit 3.0 Plug Housings 43020 , 43640
<br>Micro-Fit BMI Plug Housings 44300 ,
46625
