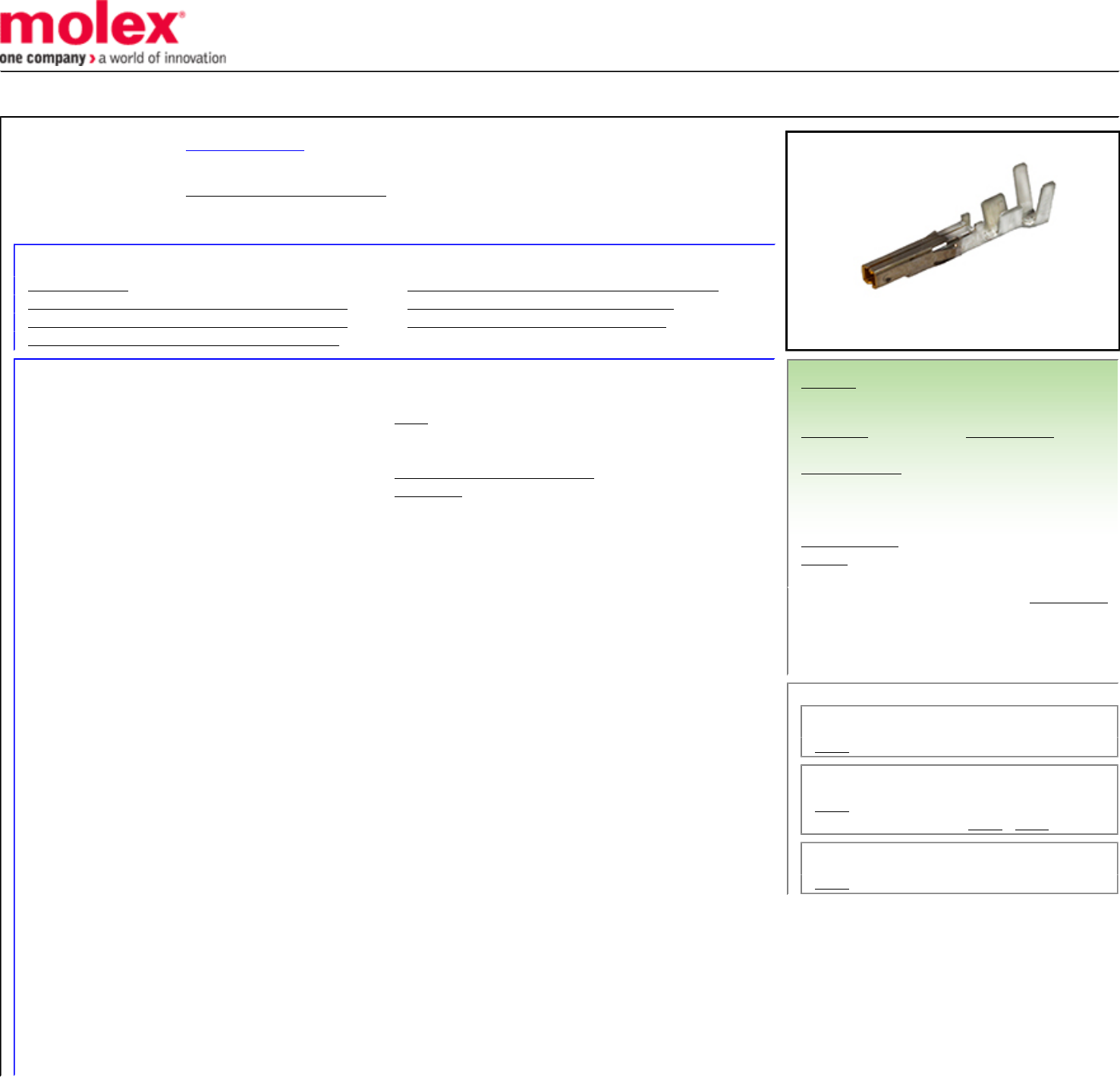

Datasheet

This document was generated on 07/19/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0039000429
Status:
Active
Overview: Mini-Fit Jr. Power Connectors
Description: Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel
(Ni), 18-24 AWG, Bag
Documents:
Drawing (PDF) Product Specification PS-5556-002-001 (PDF)
Product Specification PS-51010-007-001 (PDF) Test Summary TS-5556-002-001 (PDF)
Product Specification PS-52034-005-001 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-5556-001-001 (PDF)
General
Product Family Crimp Terminals
Series 5556
Application Power, Wire-to-Board, Wire-to-Wire
Crimp Quality Equipment Yes
Overview Mini-Fit Jr. Power Connectors
Packaging Alternative 39000428 (Reel)
Product Name Mini-Fit
UPC 822348149407
Physical
Durability (mating cycles max) 30
Gender Female
Material - Metal Brass
Material - Plating Mating Gold
Material - Plating Termination Tin
Net Weight 0.130/g
Packaging Type Bag
Plating min - Mating 0.762µm
Plating min - Termination 2.540µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.30-3.10mm
Wire Size AWG 18, 20, 22, 24
Wire Size mm² N/A
Electrical
Current - Maximum per Contact 9.0A
Voltage - Maximum 600V
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Engineering Number 5556GSL7F
Reference - Drawing Numbers
Product Specification PS-51010-007-001, PS-52034-005-001,
PS-5556-001-001, PS-5556-002-001
Sales Drawing SD-5556-006-001
Test Summary TS-5556-002-001
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
5556 Series
Mates With
5558 Mini-Fit Crimp Male Terminals. Mini-Fit
Jr. Header, Dual Row, 5566 , 5569
Use With
5557 Mini-Fit Jr. Receptacle Housing
