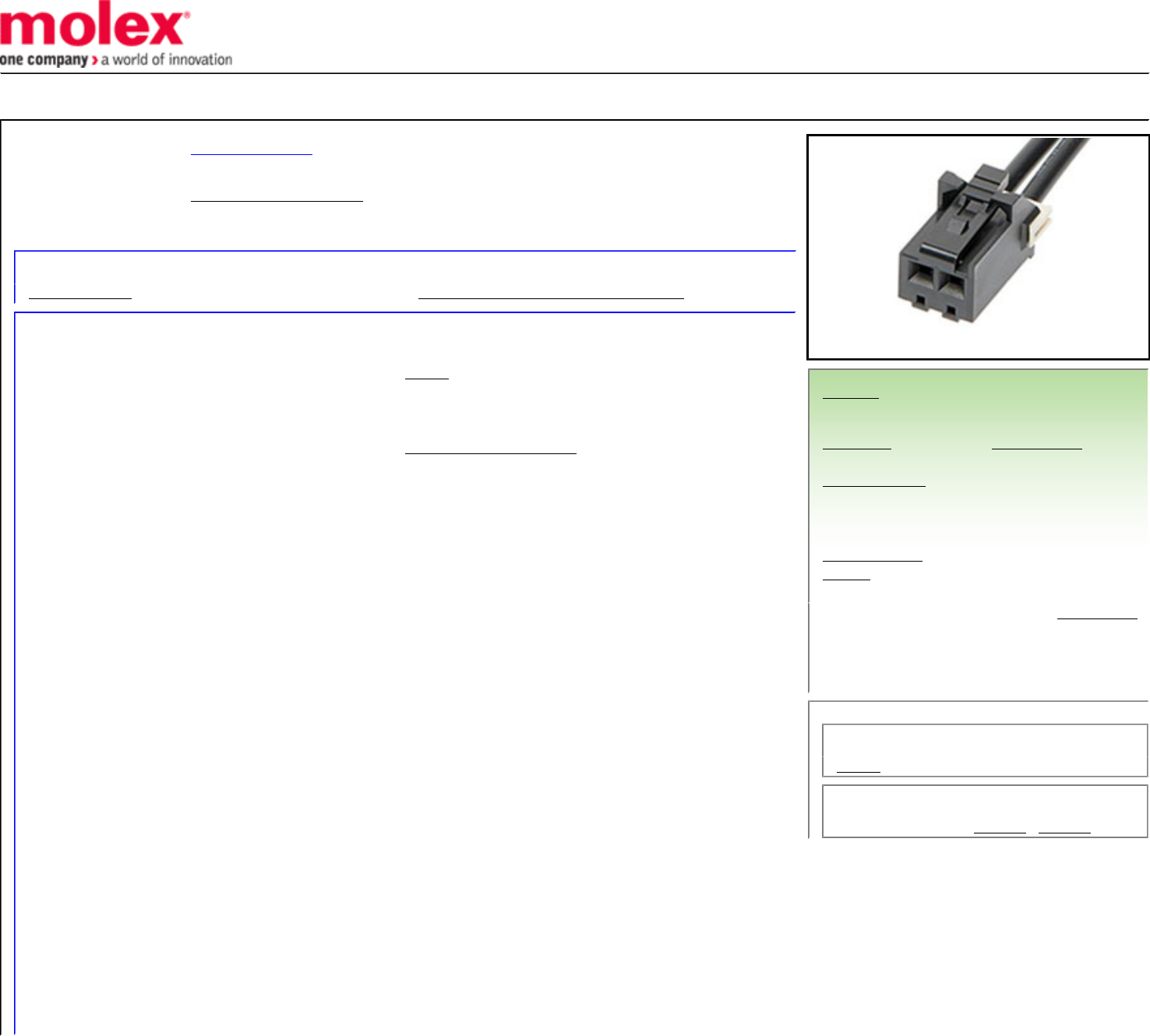

Datasheet

This document was generated on 07/29/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0369210200
Status:
Active
Overview: L1NK Connector System
Description: L1NK 396-to-L1NK 396 Off-the-Shelf (OTS) Cable Assembly, 3.96mm Pitch, Single
Row, 75.00mm Length, 2 Circuits, Black
Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)
General
Product Family Cable Assemblies
Series 36921
Assembly Configuration Dual Ended Connectors
Connector to Connector L1NK 396-to-L1NK 396
Overmolded No
Overview L1NK Connector System
Product Name L1NK 396
UPC 193264109807
Physical
Cable Length 75.00mm
Circuits (Loaded) 2
Color - Resin Black
Gender Female-Female
Lock to Mating Part Yes
Material - Metal Copper Alloy
Material - Plating Mating Tin
Material - Plating Termination Tin
Material - Resin Nylon
Net Weight 6.292/g
Packaging Type Bag
Pitch - Mating Interface 3.96mm
Plating min - Mating 5.080µm
Plating min - Termination 5.080µm
Single Ended No
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 3.12mm
Wire Size AWG 18
Wire/Cable Type UL 1015
Electrical
Current - Maximum per Contact 13.0A
Voltage - Maximum 600V DC
Material Info
Reference - Drawing Numbers
Sales Drawing 369210200-000
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
36921 Series
Mates With
L1NK 396 Headers 207478 , 207479
