Datasheet

This document was generated on 09/21/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0022011062
Status:
Active
Overview: KK® Interconnect System - Molex
Description: 2.50mm Pitch KK Wire-to-Board Housing, Female, Friction Lock, for 2759/5159 Crimp
Terminals, 6 Circuits
Documents:
3D Model Product Specification PS-5045-004 (PDF)
Drawing (PDF) Product Specification PS-5051-005-001 (PDF)
Product Specification 50510002-PS-000 (PDF) Product Specification PS-5051-006-001 (PDF)
Product Specification PS-5045-001 (PDF) Product Specification PS-5102-004-001 (PDF)
Product Specification PS-5045-002 (PDF) Packaging Specification SPK-5051-001-001 (PDF)
Product Specification PS-5045-003 (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
UL E29179
General
Product Family Crimp Housings
Series 5051
Application Signal, Wire-to-Board
Overview KK® Interconnect System - Molex
Product Name KK
UPC 800753593961
Physical
Circuits (maximum) 6
Color - Resin Natural
Flammability 94V-0
Gender Receptacle
Glow-Wire Capable No
Material - Resin Nylon
Net Weight 775.100/mg
Number of Rows 1
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface 2.50mm
Stackable No
Temperature Range - Operating -40° to +105°C
Material Info
Engineering Number 5051-06
Reference - Drawing Numbers
Packaging Specification SPK-5051-001-001
Product Specification 50510002-PS-000, PS-5045-001, PS-5045-002,
PS-5045-003, PS-5045-004, PS-5051-005-001,
PS-5051-006-001, PS-5102-004-001
Sales Drawing SD-5051-001

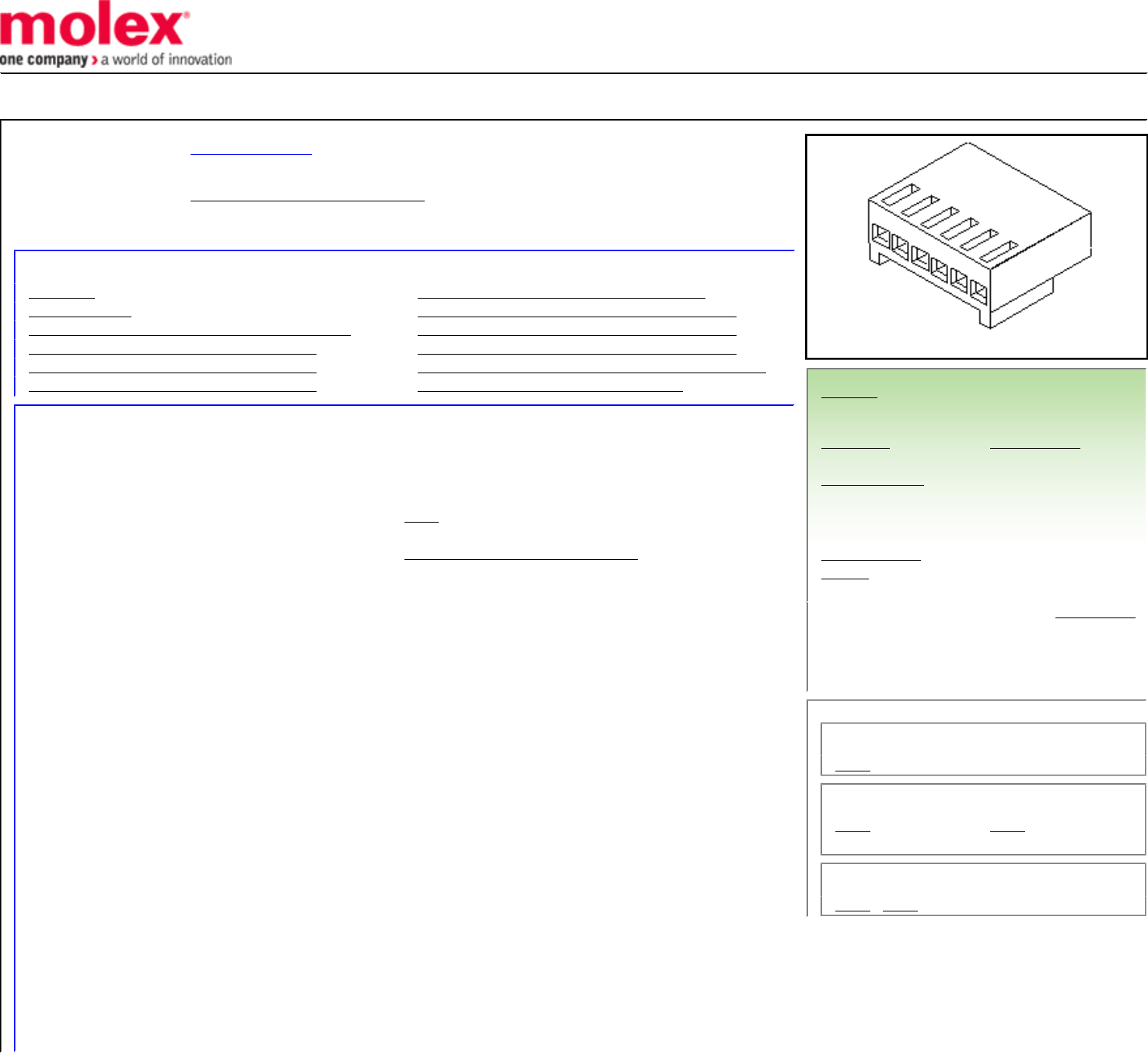

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/71/2019 (16 July
2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
5051 Series
Mates With
5045 Vertical Header, 5046 Right Angle
Header
Use With
2759 , 5159
