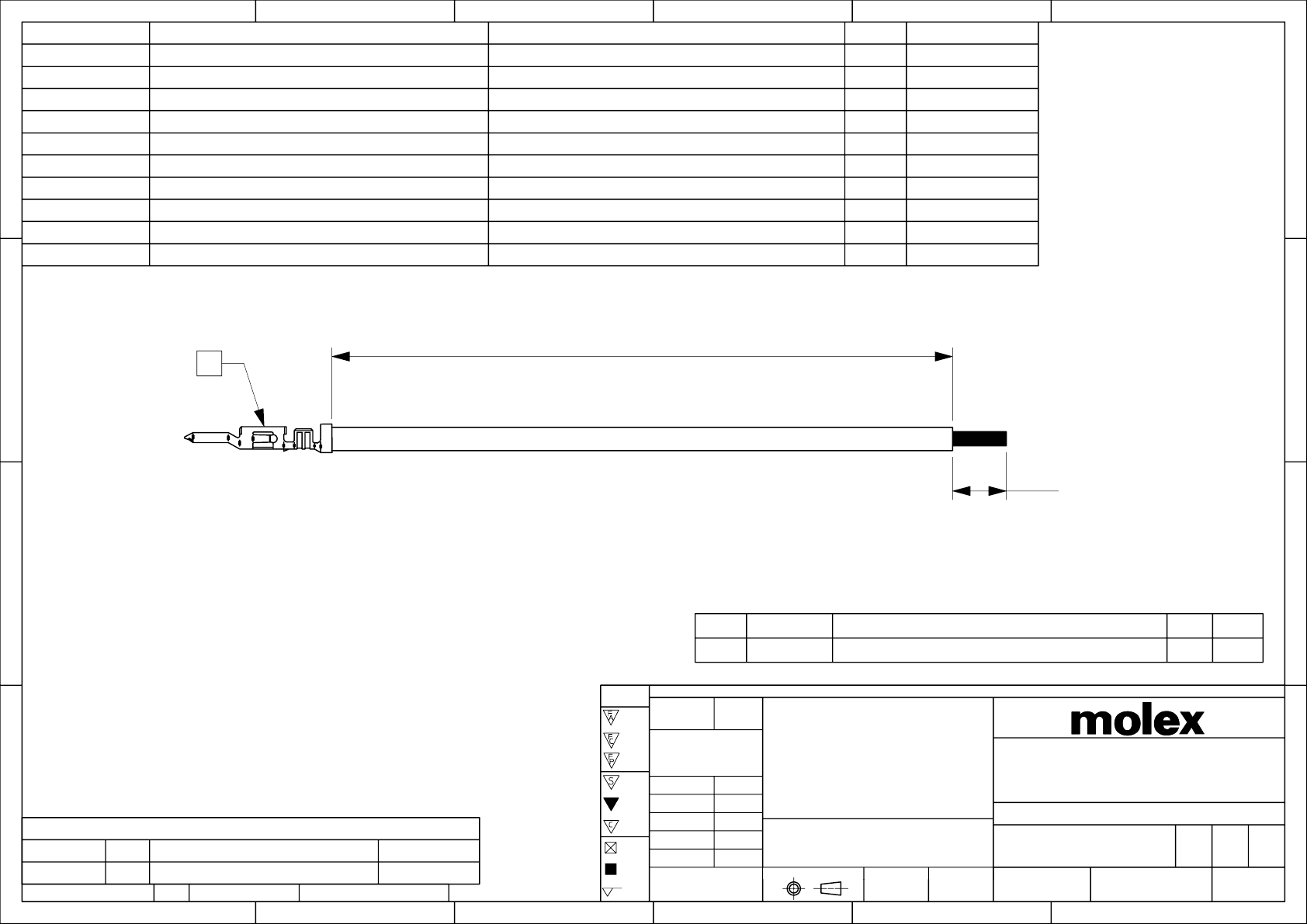

PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
2153431101
PSD
000
A
MATERIAL NUMBER
CUSTOMER SHEET NUMBER
SEE TABLE GENERAL MARKET 1 OF 1
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
NTS
GENERAL TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL
±
°
4 PLACES
±
3 PLACES
±
2 PLACES
±
1 PLACE
±
0 PLACES
±
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
FORMAT: master-tb-prod-A4
REVISION: H
DATE: 2018/01/18
DOCUMENT STATUS
P1
RELEASE DATE
2020/02/28 07:50:34
C
PART NUMBER
TITLE
CABLE DESCRIPTION
L
CABLE COLOR
21534-31101
MINI-FIT JR. M-S 75MM 20 AWG BK Sn
1X20AWG DISC PVC BK UL1015 HOOKUP
75
±
3
BLACK
21534-31102
MINI-FIT JR. M-S 150MM 20 AWG BK Sn
1X20AWG DISC PVC BK UL1015 HOOKUP
150
±
5
BLACK
21534-31103
MINI-FIT JR. M-S 225MM 20 AWG BK Sn
1X20AWG DISC PVC BK UL1015 HOOKUP
225
±
5
BLACK
21534-31104
MINI-FIT JR. M-S 300MM 20 AWG BK Sn
1X20AWG DISC PVC BK UL1015 HOOKUP
300
±
5
BLACK
21534-31105
MINI-FIT JR. M-S 450MM 20 AWG BK Sn
1X20AWG DISC PVC BK UL1015 HOOKUP
450
±
5
BLACK
21534-32101
MINI-FIT JR. M-S 75MM 20 AWG RD Sn
1X20AWG DISC PVC RD UL1015 HOOKUP
75
±
3
RED
21534-32102
MINI-FIT JR. M-S 150MM 20 AWG RD Sn
1X20AWG DISC PVC RD UL1015 HOOKUP
150
±
5
RED
21534-32103
MINI-FIT JR. M-S 225MM 20 AWG RD Sn
1X20AWG DISC PVC RD UL1015 HOOKUP
225
±
5
RED
21534-32104
MINI-FIT JR. M-S 300MM 20 AWG RD Sn
1X20AWG DISC PVC RD UL1015 HOOKUP
300
±
5
RED
21534-32105
MINI-FIT JR. M-S 450MM 20 AWG RD Sn
1X20AWG DISC PVC RD UL1015 HOOKUP
450
±
5
RED
A
NOTES:
1. Crimping to be done as per Molex standards.
2. The product specification relies on the terminals & wire spec.
3. Free ends must be stripped, twisted & tinned. The length of
tinning is 5±1mm. Tinning dia must be 1.25mm Max.
5
±
1
L
ITEM
PART# DESCRIPTION QTY UOM
A
39000040
MiniFit Term Crp male Bs Tin 18-24 5558T
1
PC
