Datasheet
CURRENT REV DESC:
EC NO:
629716
DRWN:
ARAJU
2019/12/11
CHK'D:
RDESAI01
2019/12/30
APPR:
RDESAI01
2019/12/30
INITIAL REVISION:
DRWN:
ARAJU
2019/12/11
APPR:
RDESAI01
2019/12/30
THIRD ANGLE PROJECTION
DRAWING SERIES
A4-SIZE
214922
SEE TABLE

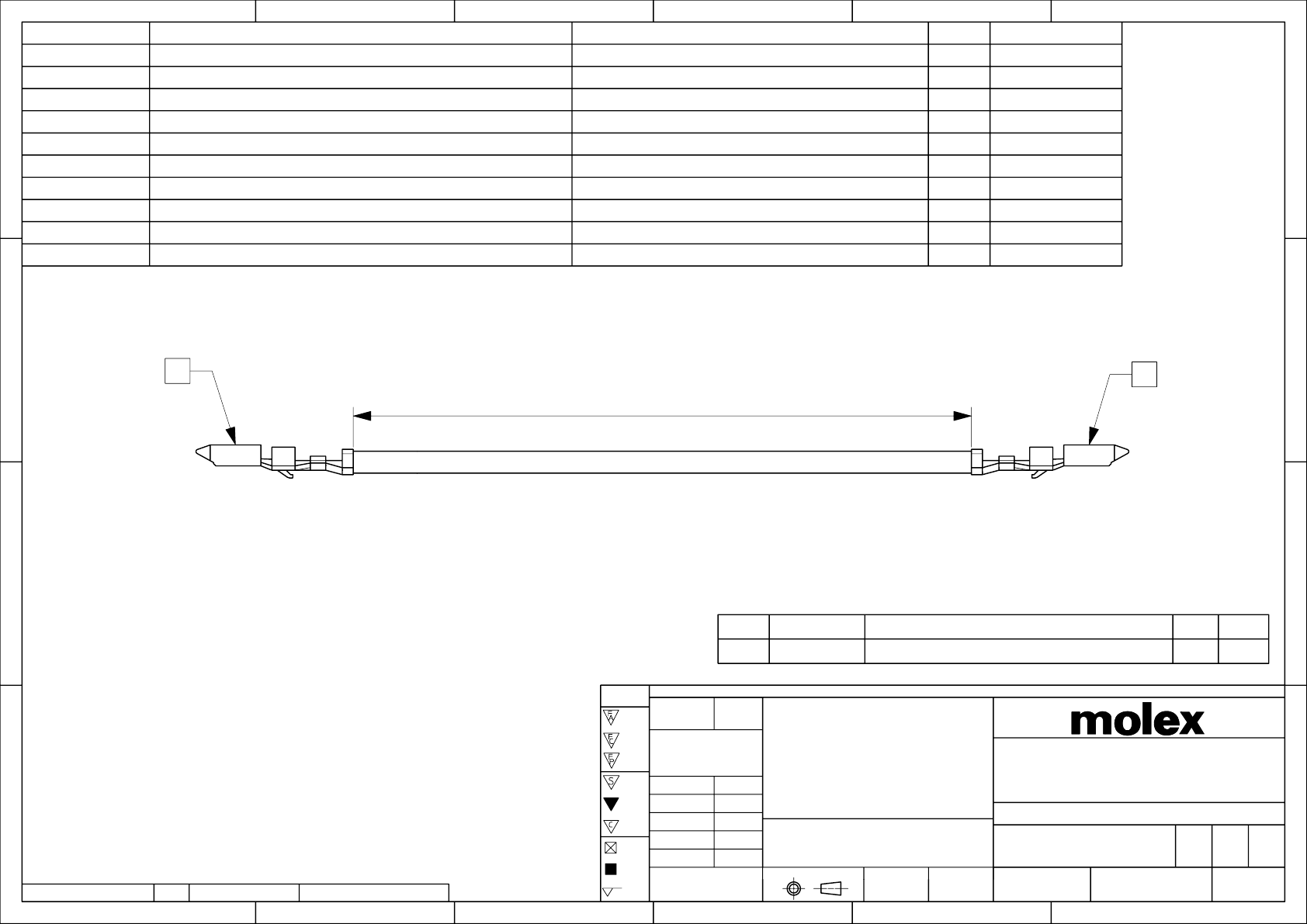

PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
2149221221
PSD
000
A
MATERIAL NUMBER
CUSTOMER SHEET NUMBER
SEE TABLE GENERAL MARKET 1 OF 1
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
NTS
GENERAL TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL
±
°
4 PLACES
±
3 PLACES
±
2 PLACES
±
1 PLACE
±
0 PLACES
±
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
FORMAT: master-tb-prod-A4
REVISION: H
DATE: 2018/01/18
DOCUMENT STATUS
P1
RELEASE DATE
2019/12/30 09:48:19
C
NOTES:
1. Crimping to be done as per Molex standards.
2. The product specification relies on the terminals & wire spec.
ITEM
PART# DESCRIPTION QTY UOM
A
501258000
PicoBlade1.25 Crimp Plug Term Chain
2
PC
PART NUMBER
TITLE
CABLE DESCRIPTION
L
CABLE COLOR
214922-1221
PICOBLADE PRECRIMP 26AWG RD M-M L=75 Sn
1X26AWG DISC PVC RD UL1061 HOOKUP
75
±
3
RED
214922-1222
PICOBLADE PRECRIMP 26AWG RD M-M L=150 Sn
1X26AWG DISC PVC RD UL1061 HOOKUP
150
±
5
RED
214922-1223
PICOBLADE PRECRIMP 26AWG RD M-M L=225 Sn
1X26AWG DISC PVC RD UL1061 HOOKUP
225
±
5
RED
214922-1224
PICOBLADE PRECRIMP 26AWG RD M-M L=300 Sn
1X26AWG DISC PVC RD UL1061 HOOKUP
300
±
5
RED
214922-1225
PICOBLADE PRECRIMP 26AWG RD M-M L=450 Sn
1X26AWG DISC PVC RD UL1061 HOOKUP
450
±
5
RED
214922-1211
PICOBLADE PRECRIMP 26AWG BK M-M L=75 Sn
1X26AWG DISC PVC BK UL1061 HOOKUP
75
±
3
BLACK
214922-1212
PICOBLADE PRECRIMP 26AWG BK M-M L=150 Sn
1X26AWG DISC PVC BK UL1061 HOOKUP
150
±
5
BLACK
214922-1213
PICOBLADE PRECRIMP 26AWG BK M-M L=225 Sn
1X26AWG DISC PVC BK UL1061 HOOKUP
225
±
5
BLACK
214922-1214
PICOBLADE PRECRIMP 26AWG BK M-M L=300 Sn
1X26AWG DISC PVC BK UL1061 HOOKUP
300
±
5
BLACK
214922-1215
PICOBLADE PRECRIMP 26AWG BK M-M L=450 Sn
1X26AWG DISC PVC BK UL1061 HOOKUP
450
±
5
BLACK
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
L
A
A
