Datasheet

This document was generated on 02/15/2020
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
2045320301
Status:
Active
Overview: Micro-Lock Plus Wire-to-Board Connector System
Description: Micro-Lock Plus Receptacle Housing, 1.25mm Pitch, Single Row, with Positive Lock, 3
Circuits, Low-Halogen, Black
Documents:
3D Model Product Specification 2045320001-PS-000 (PDF)
3D Model (PDF) Application Specification AS-505565-001-001 (PDF)
Drawing (PDF) Packaging Specification 2045329200-200 (PDF)
Product Specification 2045320000-PS-000 (PDF) Datasheet (PDF)
Product Specification 2045320000-PS-001 (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family Crimp Housings
Series 204532
Application Signal, Wire-to-Board
Overview Micro-Lock Plus Wire-to-Board Connector System
Product Name Micro-Lock Plus
UPC 191128418256
Physical
Circuits (maximum) 3
Color - Resin Black
Gender Receptacle
Glow-Wire Capable No
Keying to Mating Part None
Lock to Mating Part Yes
Material - Resin Polyester
Net Weight 78.170/mg
Number of Rows 1
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface 1.25mm
Pitch - Termination Interface 1.25mm
Polarized to Mating Part Yes
Temperature Range - Operating -40° to +105°C
Material Info
Reference - Drawing Numbers
Application Specification AS-505565-001-001
Packaging Specification 2045329200-200
Product Specification 2045320000-PS-000, 2045320000-PS-001,
2045320001-PS-000
Sales Drawing 2045320000-SD-000

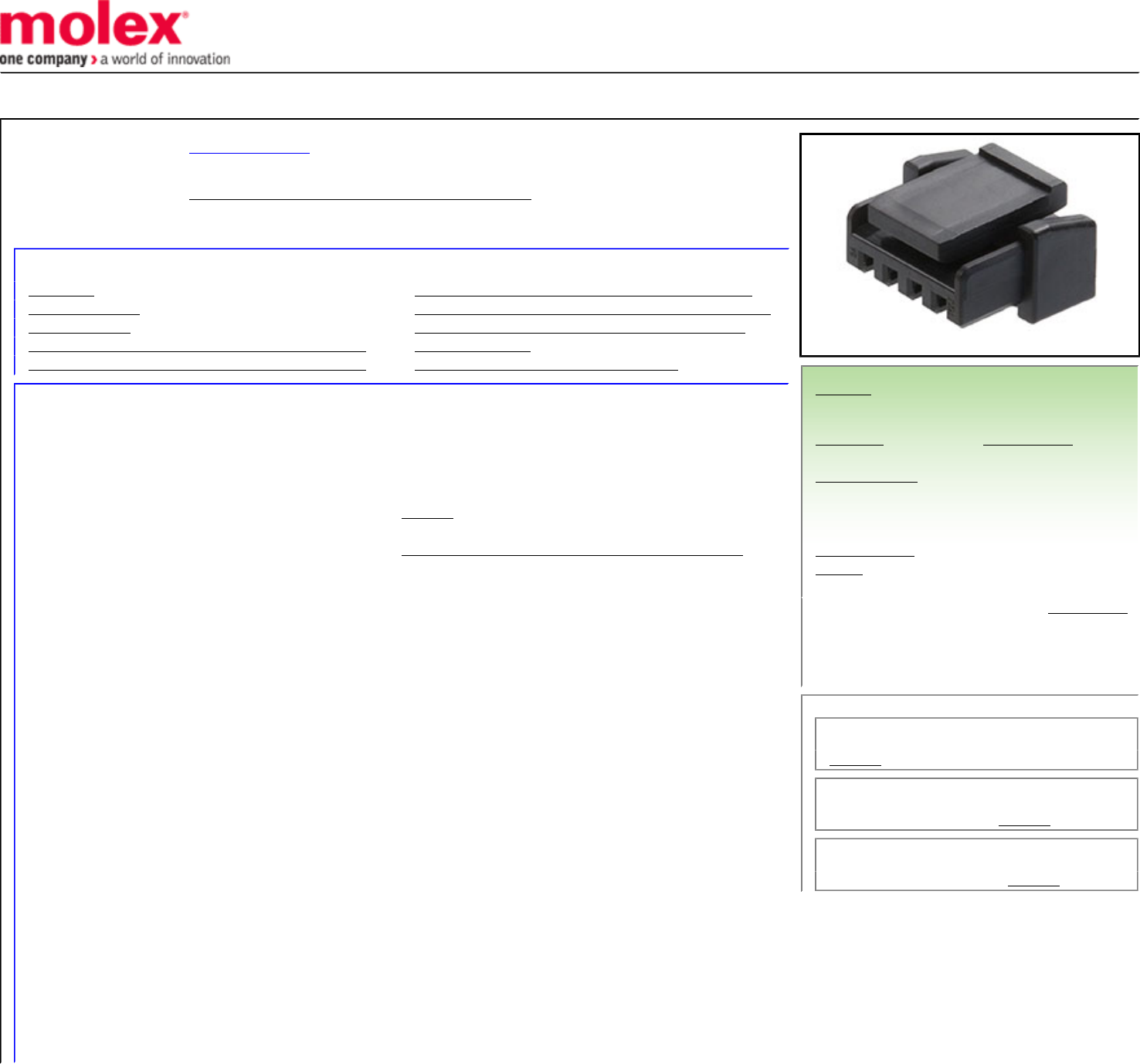

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ECHA_01_2020 (16
January 2020
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
204532 Series
Mates With
Micro-Lock Plus Header 205957
Use With
Micro-Lock Plus Terminal 505431
