Datasheet

This document was generated on 07/26/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
2043650018
Status:
Active
Overview: Coeur CST High-Current Interconnect System
Description: Coeur CST High-Current Female Surface Mount Socket, 3.40mm Diameter, with
1.00mm Float
Documents:
Drawing (PDF) Packaging Specification 2043130018-PK-000 (PDF)
Product Specification 2043130018-PS-000 (PDF) RoHS Certificate of Compliance (PDF)
Application Specification 2043130018-AS-000 (PDF)
General
Product Family PCB Receptacles
Series 204365
Application Power
Comments Current and voltage performances are dependent
upon application variables <br><br>Embossed
Tape & Reel and Tray packaging available.
Contact Molex for information., Current and voltage
performances are dependent upon application variables
<br><br>Embossed Tape & Reel and Tray packaging
available. Contact Molex for information.
Datasheet Order No 987651-8619
Overview Coeur CST High-Current Interconnect System
Product Name Coeur CST
UPC 191130519460
Physical
Circuits (Loaded) 1
Circuits (maximum) 1
Diameter 3.40mm
Durability (mating cycles max) 200
Glow-Wire Capable No
Material - Metal Copper Alloy
Material - Plating Mating Gold
Material - Plating Termination Silver
Net Weight 4.794/g
Number of Rows 1
Orientation Vertical
PCB Retention Yes
Packaging Type Tray
Pitch - Mating Interface N/A
Polarized to PCB No
Temperature Range - Operating -40° to +105°C
Termination Interface: Style Surface Mount
Electrical
Current - Maximum per Contact 75.0A
Voltage - Maximum 600V
Solder Process Data
Duration at Max. Process Temperature (seconds) 600
Lead-freeProcess Capability SMC&WAVE
Max. Cycles at Max. Process Temperature 002
Process Temperature max. C 205
Material Info

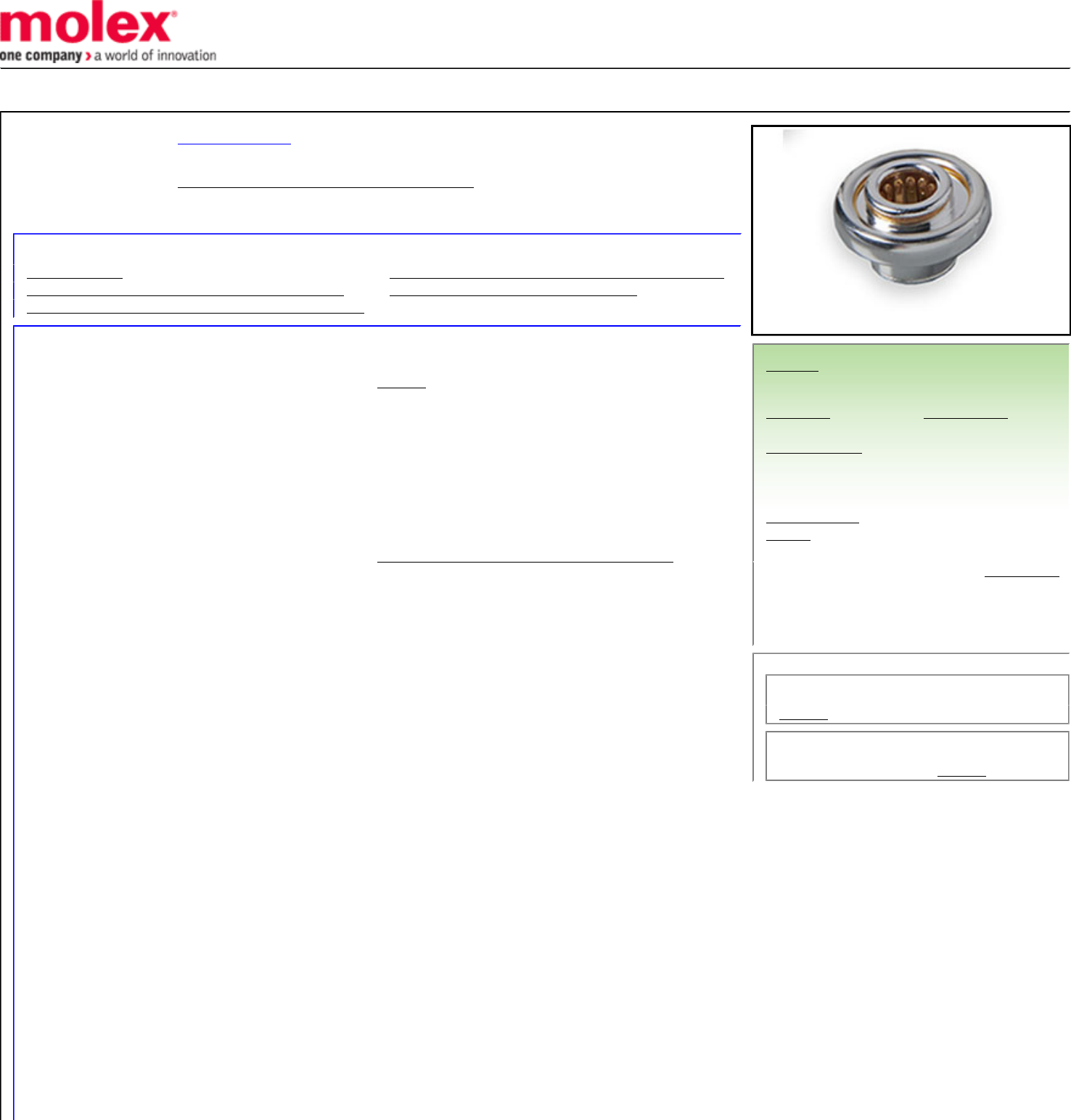

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
204365 Series
Mates With
Coeur CST 3.40mm Pin 203263
