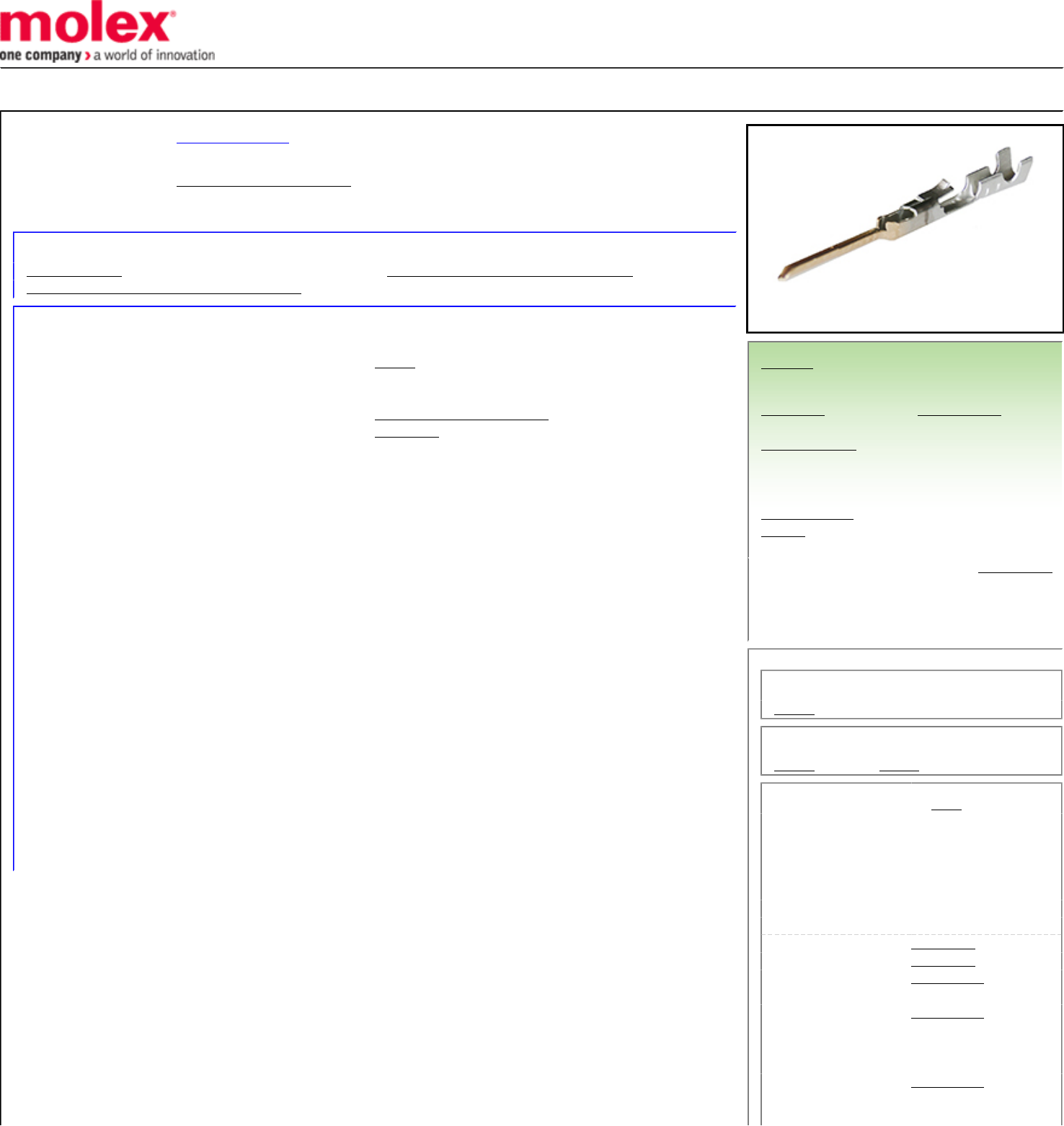

Datasheet

This document was generated on 08/16/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0016020078
Status:
Active
Overview: C-Grid Connector Products
Description: SL Crimp Terminal, Series 70021, Male, with 0.76µm Selective Gold (Au) Plated
Contact, 24-30 AWG, Reel
Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-70021-001 (PDF)
General
Product Family Crimp Terminals
Series 70021
Application Signal, Wire-to-Wire
Crimp Quality Equipment Yes
Overview C-Grid Connector Products
Packaging Alternative 16020110 (Loose)
Product Name SL
UPC 800753595972
Physical
Gender Male
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Net Weight 0.099/g
Packaging Type Reel
Plating min - Mating 0.762µm
Plating min - Termination 1.905µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.52mm max.
Wire Size AWG 24, 26, 28, 30
Wire Size mm² N/A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Engineering Number 70021-0008
Reference - Drawing Numbers
Product Specification PS-70021-001
Sales Drawing 700210000-SD-000
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/71/2019 (16 July
2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
70021 Series
Use With
70066 Housing, 70107 Housing
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Insertion Tool 11020022
Extraction Tool 11030036
Hand Crimp Tool For
SL Crimp Terminals
638258800
FineAdjust Applicator
for Male Crimp
Terminal, 24-30
AWG Wire
639003400
FineAdjust Applicator
for Crimp Terminal,
Male, 28 AWG, 41
639014500
