Datasheet

This document was generated on 07/15/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
1510340012
Status:
Active
Overview: EXTreme Guardian System
Description: 11.00mm Pitch EXTreme Guardian Power Receptacle Assembly, 6 AWG, PBT, 2
Circuits
Documents:
Drawing (PDF) Packaging Specification PK-151034-0001 (PDF)
Product Specification PS-151053-0000-001 (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family Crimp Housings
Series 151034
Application Power, Wire-to-Board
Overview EXTreme Guardian System
Product Name EXTreme Guardian
UPC 887191678467
Physical
Circuits (maximum) 2
Color - Resin Black
Flammability 94V-0
Gender Receptacle
Glow-Wire Capable No
Lock to Mating Part Yes
Material - Resin PBT
Net Weight 13.116/g
Number of Rows 1
Packaging Type Tray
Panel Mount No
Pitch - Mating Interface 11.00mm
Temperature Range - Operating -40° to +105°C
Electrical
Current - Maximum per Contact 80.0A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Reference - Drawing Numbers
Packaging Specification PK-151034-0001
Product Specification PS-151053-0000-001
Sales Drawing SD-151034-0001-001

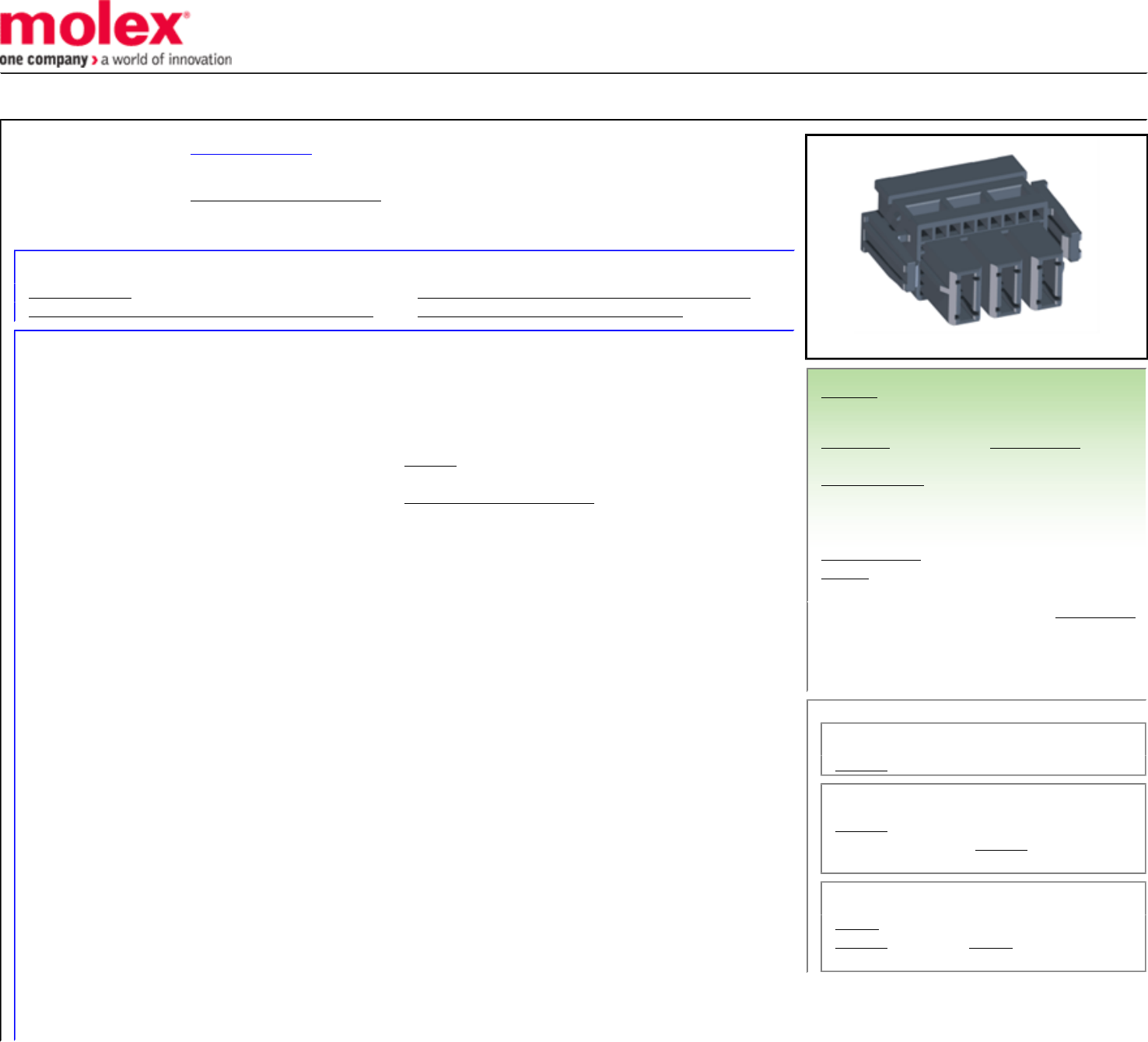

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
151034 Series
Mates With
151035 EXTreme Guardian Power Right-
Angle PCB Header, 151053 EXTreme
Guardian Power Vertical PCB Header
Use With
46818 Power Harness Crimp Receptacle,
151076 TPA Clips, 46819 High-Power
Terminals
