Brochure

Specications
(Friction Lock version 2.50mm pitch)
(Positive Lock version with TPA 3.00mm pitch)
REFERENCE INFORMATION
Packaging: Tape and Reel (terminals)
Bag (housing)
UL File No.: E29179
Mates With: 36877
Use With: UL1007 and 1061 wires or equivalent
Terminal Used: 36876
Designed In: Millimeters
RoHS: Yes
ELECTRICAL
Voltage (max.): 8V
Current (max.): 8.0A for 20AWG wires
Contact Resistance (max.): 3.5 milliohms
Dielectric Withstanding Voltage: 1700V AC/minute
Insulation Resistance (min.): 1000 Megohm
MECHANICAL
Contact Insertion Force (max.): 10N
Contact Retention to Housing (min.): 30N
Mating Force (max.): 27N
Unmating Force (min.): 7N
Durability (max.): 25 cycles
PHYSICAL
Housing: PA66 UL 94V-0 (non-glow wire capable)
Contact: Tin brass
Plating:
Contact Area: Pre-plated Tin
Operating Temperature: -40 to +105°C
REFERENCE INFORMATION
Packaging: Tape and Reel (terminals)
Bag (housing)
UL File No.: E29179
VDE File No.: 219197
Mates With: 150170/150201
Use With: UL1007 and 1061 wires or equivalent
Terminal Used: 150200
Designed In: Millimeters
RoHS: Yes
Halogen Free: PA66 - Yes or PA6 - No
Glow Wire Capable and Compliant
with: IEC60335-1
ELECTRICAL
Voltage (max.): 5V
Current (max.): 5.0A for 20AWG wires
Contact Resistance (max.): 10 milliohm
Dielectric Withstanding Voltage: 1700V AC/minute
Insulation Resistance (min.): 1000 Megohm
MECHANICAL
Contact Insertion Force (max.): 15N
Contact Retention to Housing (max.): 25N
Mating Force (max.): 27N
Unmating Force (min.): 5N
Durability (max.): 25 cycles
PHYSICAL
Housing: PA66 UL 94V-0 (non-glow wire capable)
PA6 UL 94V-2 (glow wire capable)
Contact: Tin brass
Plating:
Contact Area: Pre-plated tin
Operating Temperature: -40 to +105°C

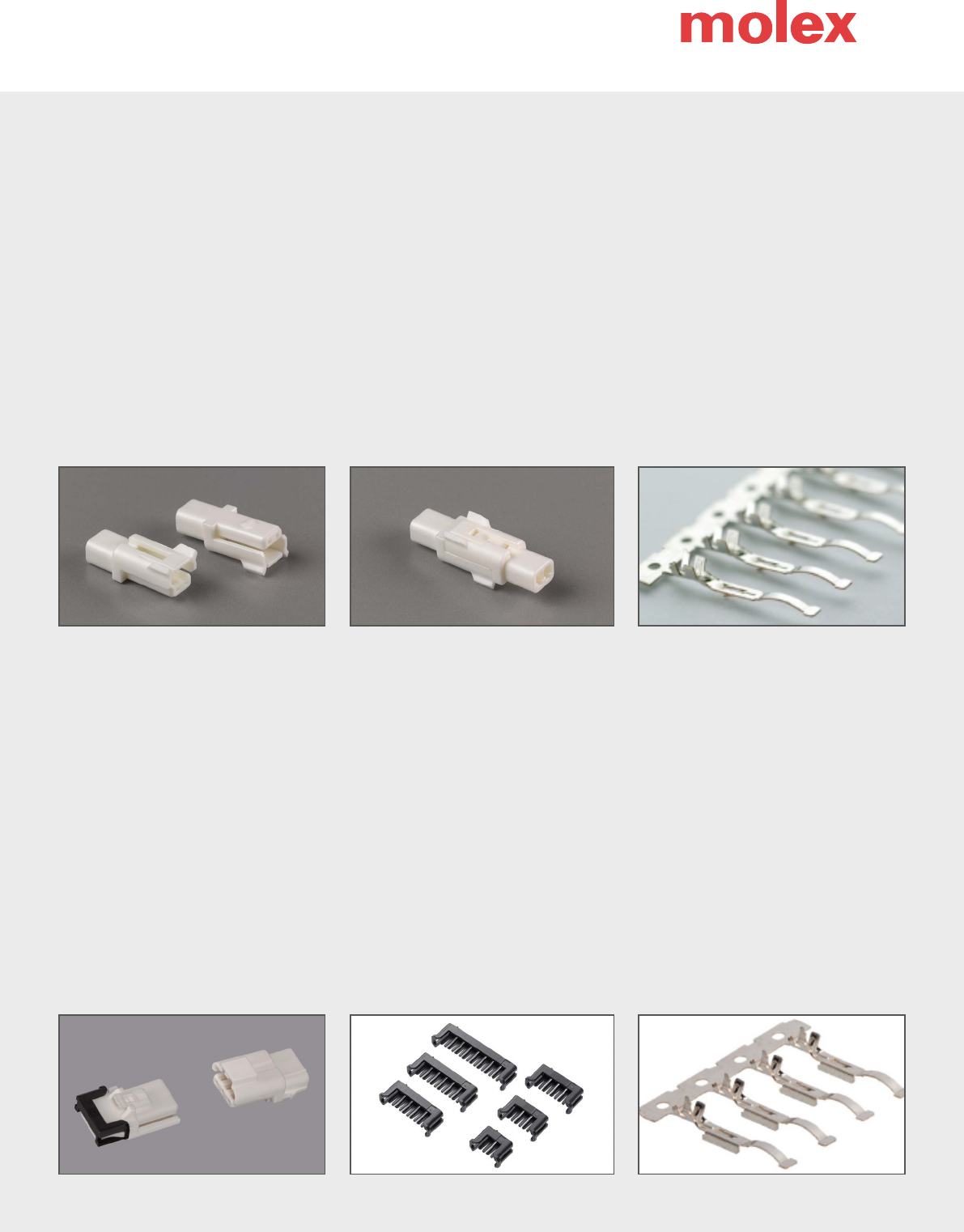

Ditto Wire-to-Wire Connectors
2.50mm pitch Housings
with Friction Lock
3.00mm pitch Housings
with TPA Retainer
2.50mm pitch Mating Condition
Ditto Positive Lock TPA
Ditto Positive Lock Terminals
3.00mm pitch Terminal
