Datasheet

This document was generated on 06/07/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0009503031
Status:
Active
Overview: KK® Interconnect System - Molex
Description: KK 3.96mm Crimp Terminal Housing, Friction Ramp, 3 Circuits, Natural
Documents:
3D Model Packaging Specification PK-2139-001-001 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-08-50-001 (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family Crimp Housings
Series 2139
Application Power, Wire-to-Board
Overview KK® Interconnect System - Molex
Product Name KK 396
UPC 800753614017
Physical
Circuits (maximum) 3
Color - Resin Natural
Flammability 94V-2
Gender Receptacle
Glow-Wire Capable No
Lock to Mating Part Yes
Material - Resin Nylon
Net Weight 0.784/g
Number of Rows 1
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface 3.96mm
Temperature Range - Operating See Product Specification
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Engineering Number 2139-3A
Reference - Drawing Numbers
Packaging Specification PK-2139-001-001
Product Specification PS-08-50-001
Sales Drawing SD-2139

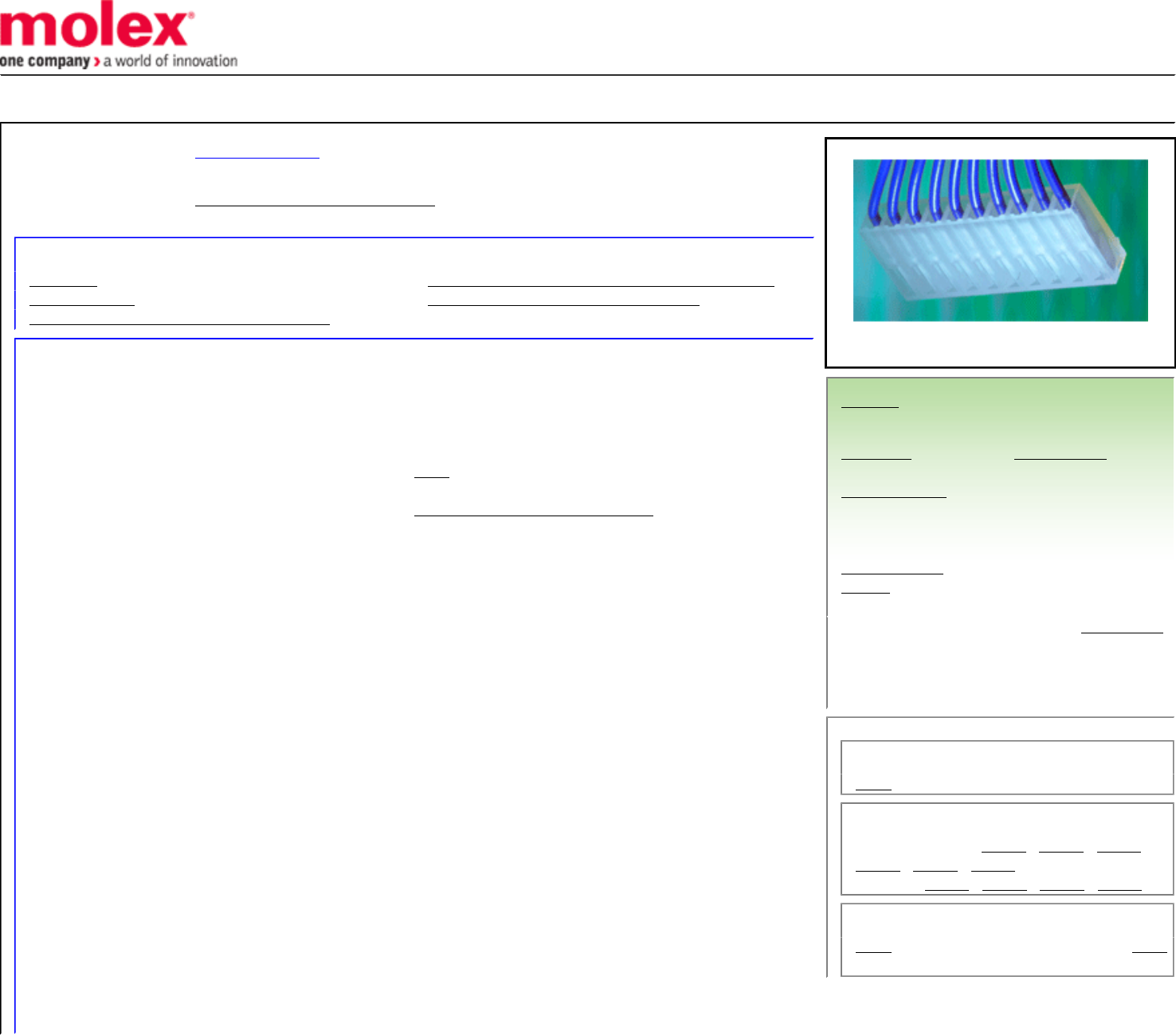

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
2139 Series
Mates With
KK 396 Headers: 41771 , 41772 , 41791 ,
41792 , 42491 , 42492 , KK 396 Breakaway
Headers: 41661 , 41662 , 41671 , 41672
Use With
2478 Crimp Terminals for 18-24 AWG, 2578
Crimp Terminals for 22-26 AWG
