Datasheet

This document was generated on 06/07/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0008500187
Status:
Active
Overview: KK® Interconnect System - Molex
Description: KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Brass Tin (Sn)
Documents:
Drawing (PDF) Packaging Specification PK-2759-002-001 (PDF)
Product Specification PS-40-02-001 (PDF) RoHS Certificate of Compliance (PDF)
General
Product Family Crimp Terminals
Series 6838
Application Power
Crimp Quality Equipment Yes
Overview KK® Interconnect System - Molex
Packaging Alternative 08500189 (Loose)
Product Name KK 396, Trifurcon
UPC 800753614475
Physical
Gender Female
Material - Metal Brass
Material - Plating Mating Tin
Material - Plating Termination Tin
Net Weight 0.194/g
Packaging Type Reel
Plating min - Mating 2.540µm
Plating min - Termination 2.540µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 2.79mm max.
Wire Size AWG 18, 20
Wire Size mm² N/A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Engineering Number 6838-(P909)
Reference - Drawing Numbers
Packaging Specification PK-2759-002-001
Product Specification PS-40-02-001
Sales Drawing SD-6838-001

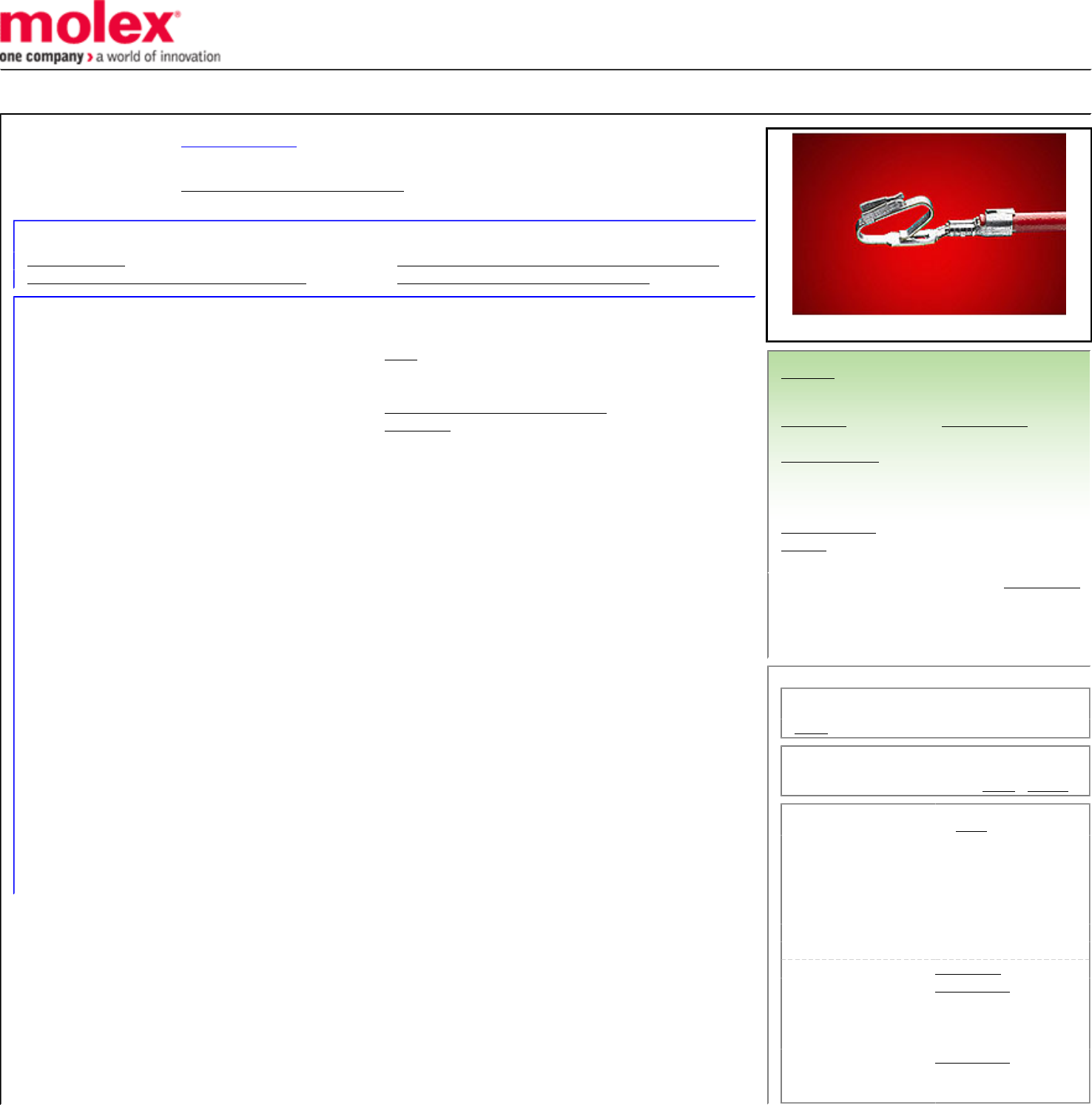

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
6838 Series
Use With
KK Crimp Terminal Housing 6442 , 41695
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Extraction Tool 11030016
Hand Crimp Tool for
3.96mm Pitch KK
Crimp Terminals,
18-24 AWG
638279500
Mini-Mac Applicator
for KK and Trifurcon
Crimp Terminals
638885000
