Datasheet

This document was generated on 06/07/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0002092103
Status:
Active
Overview: Standard .093" Pin and Socket Connectors
Description: 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male,
with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
Documents:
Drawing (PDF) Packaging Specification PK-1190-003 (PDF)
Product Specification PS-02-09 (PDF) RoHS Certificate of Compliance (PDF)
Packaging Specification PK-1190-001-001 (PDF)
General
Product Family Crimp Terminals
Series 1190
Application Power, Wire-to-Wire
Crimp Quality Equipment Yes
Overview Standard .093" Pin and Socket Connectors
Packaging Alternative 02092101 (Reel)
Product Name Standard .093"
UPC 800753746107
Physical
Durability (mating cycles max) 25
Gender Male
Material - Metal Brass
Material - Plating Mating Tin
Material - Plating Termination Tin
Net Weight 0.312/g
Packaging Type Bag
Plating min - Mating 0.508µm
Plating min - Termination 0.508µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.65-4.06mm
Wire Size AWG 14, 16, 18, 20
Wire Size mm² N/A
Solder Process Data
Lead-freeProcess Capability N/A
Material Info
Engineering Number 1190-(P901)L
Reference - Drawing Numbers
Packaging Specification PK-1190-001-001, PK-1190-003
Product Specification PS-02-09
Sales Drawing SD-1190-X

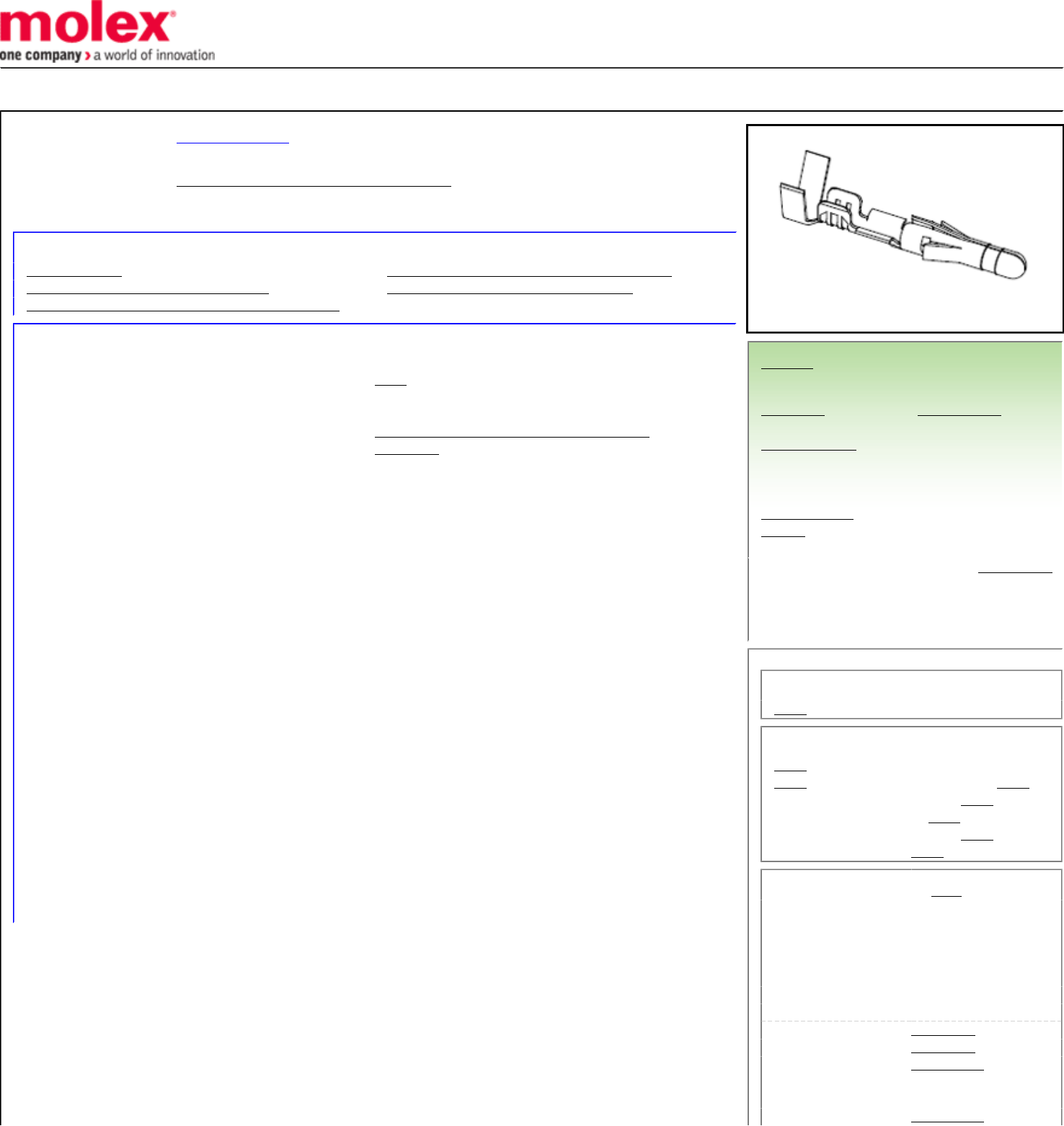

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/88/2018 (15
January 2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
1190 Series
Use With
1619 Plug or Receptacle Housing,
1545 Plug or Receptacle Housing, 1396
Plug or Receptacle Housing, 1490 Plug
or Receptacle Housing, 2629 Plug or
Receptacle Crimp Housings, 1261 Plug or
Receptacle Housing, 1292 Plug or Recept
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Insertion Tool 11020003
Extraction Tool 11030006
Hand Crimper -
DISTRIBUTION
ONLY
638111000
Hand Crimp Tool 638191100
