Operating instructions

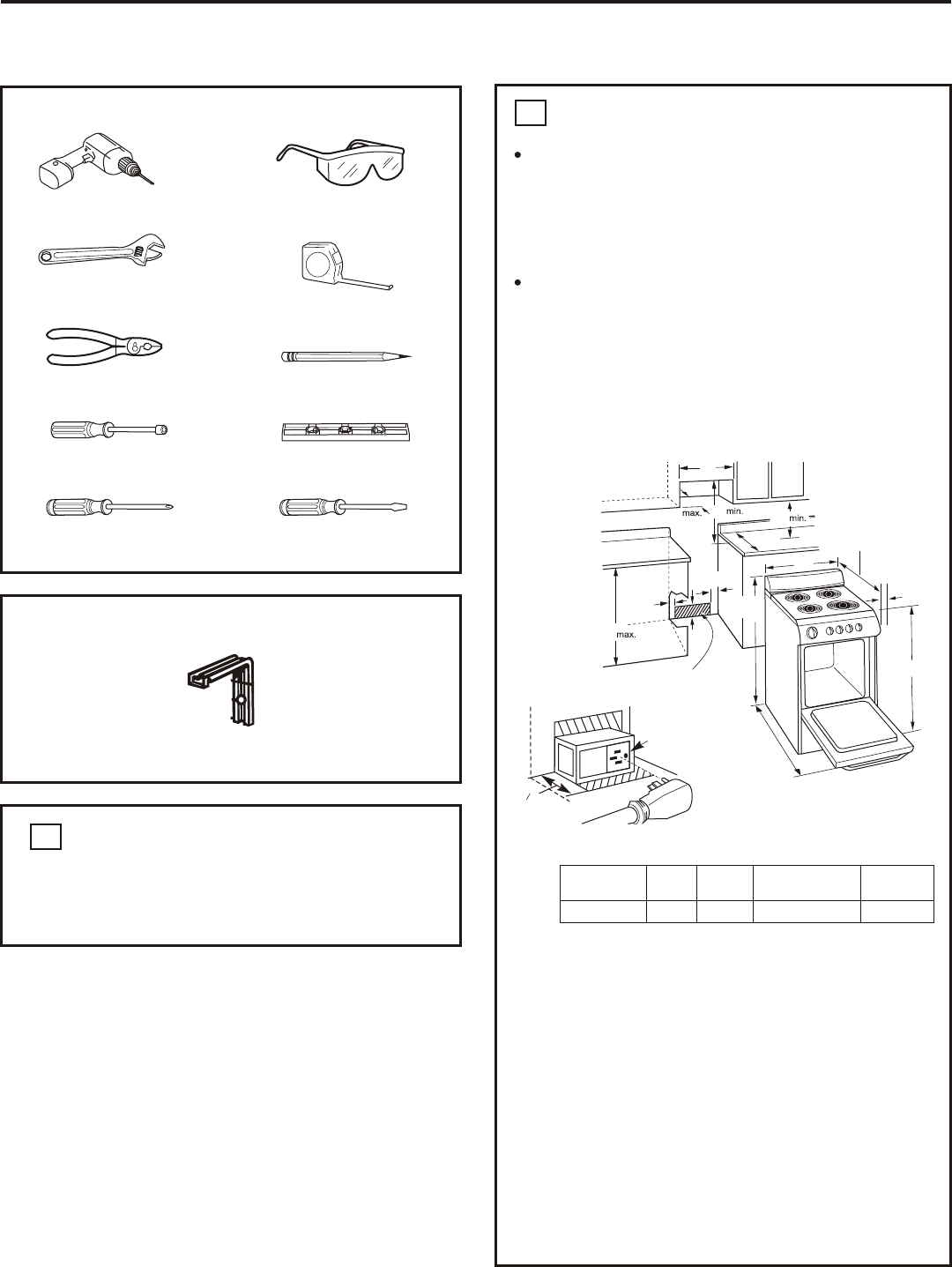

Installation Instructions
PREPARE TO INSTALL THE RANGE
Allow 2” spacing from the range to adjacent
vertical walls above the cooktop surface. Allow
30” minimum clearance between the surface
units and the bottom of unprotected wood or
metal top cabinet, and 18” minimum between
the countertop and adjacent cabinet bottom.
PREPARE THE OPENING
To eliminate the risk of burns or fire when
reaching over hot surface elements, cabinet
storage space above the cooktop should be
avoided. lf cabinet storage space is to be
provided above the cooktop, the risk can be
reduced by ¡nstalling a range hood that
protrudes at least 5” beyond the front of the
cabinets. Cabinets installed above a cooktop
may be no deeper than 13”.
Flooring under the range
Your range, Iike many other household items,
is heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting.
When moving the range on this type of
flooring, it should be installed on a 1/4”
thick sheet of plywood (or similar material)
as foIlows:
When the floor covering ends at the front
of the range, the area that the range will
rest on should be built up with plywood
to the same level or higher than the floor
covering. This wiIl allow the range to be
moved for cleaning or servicing.
Recommended acceptable electrical outlet
area. Orient theelectrical receptacle so
the length is parallel to the floor
B
13”
30”
18”
24”
26” from wall
to front of
control panel
From
combustible
walls above
cooking
surface
2”
5”
2½”
36”
36”
C
Surface
mount
outlet
Outlet-box
Wall
D
(depth
with door
open)
Cord
Floor
2 ”
1
4
Wall Mounted
Models A B
C
D
MCAS724 40 ½” 24 ”
/
3
8
2” (5,08 cm) 41” (104,14cm)
(recommended)
Pencil
Level
PhiIIips Screwdriver
Screwdriver
Remove packaging materials. Failure to
remove packaging materials could result
in damage to the appliance.
TOOLS YOU WILL NEED
Drili with 1/8” Bit
Safety Glasses
Adjustable Wrench
Tape Measure
Pliers
1/4” Nut Driver
FIat-bIade
PARTS INCLUDED
Anti-Tip Bracket Kit
REMOVE SHIPPING MATERIALS
1
2
13
A
24”
