DESCRIPTION

• Brass construction with chrome plated finish

• 1/2" IPS connections

• 8" widespread

OPERATION

• 4" wrist blade handles with hot and cold color indicators*

*Smooth handle models have hot and cold color indicator

at torx head screw

• 1/4 turn to open (clockwise to close)

• Vandal resistant torx head screws

CARTRIDGE

• Brass shell, ceramic disc cartridge

• Nonmetallic/nonferrouse and ceramic material

STANDARDS

• Third party certified to meet A112.18.1/CSA B125.1 and

all applicable spec i fi ca tions referenced therein

• Certified to NSF 61/9

• Contains no more than 0.25% weighted average

lead content

• Complies with California Proposition 65 and with the

Federal Safe Drinking Water Act

• ADA for lever handles

WARRANTY

• Warranted for 5 years against material or manufacturing

defects

4-3/4"

(121mm)

4-1/8"

(104mm)

2-1/2"

(64mm)

Escut. Dia.

15-3/4"

(400mm)

(76mm)

(204mm)

2-1/2”

(64mm)

(50mm)

(204mm)

13-1/4"

(337mm)

1-1/2"

(38mm)

MAX.

NOTE: Designed to be installed through

3 holes - 1" min. dia.

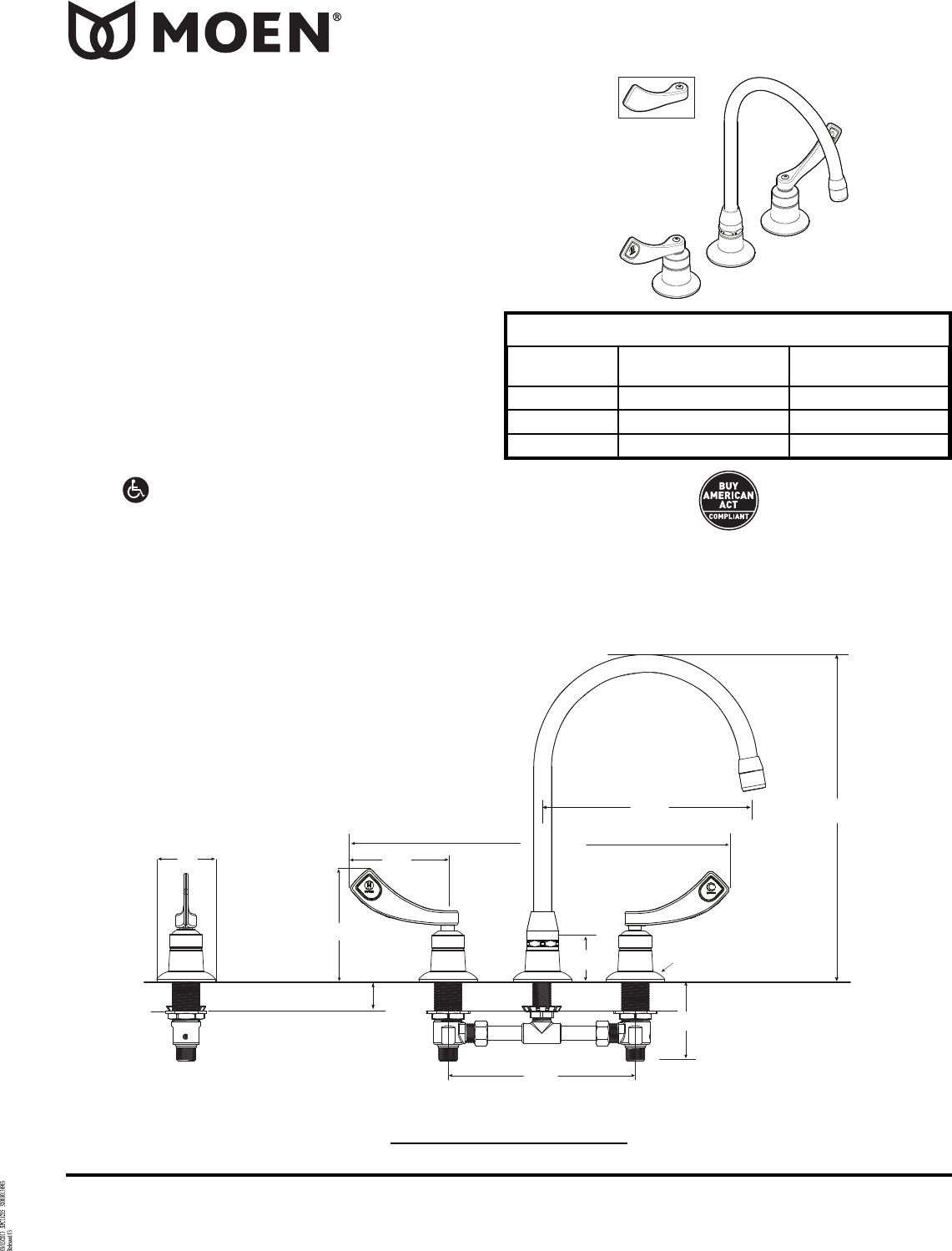

CRITICAL DIMENSIONS

(DO NOT SCALE)

S p e c i f i c a t i o n s

MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158

www.moen.com

Rev. 1/13

C O M M E R C I A L

Two-Handle Bar/Pantry Faucet with Spout

MODEL FLOW (gpm/Lpm) HANDLE STYLE

8225 2.2/8.3 Decal

8225SM 2.2/8.3 Smooth

8225SMF15 1.5/5.7 Smooth

Smooth

Handle
