Page 2 ams Datasheet

Document Feedback [v1-01] 2015-Oct-12

AS-MLV-P2 − Pin Assignment

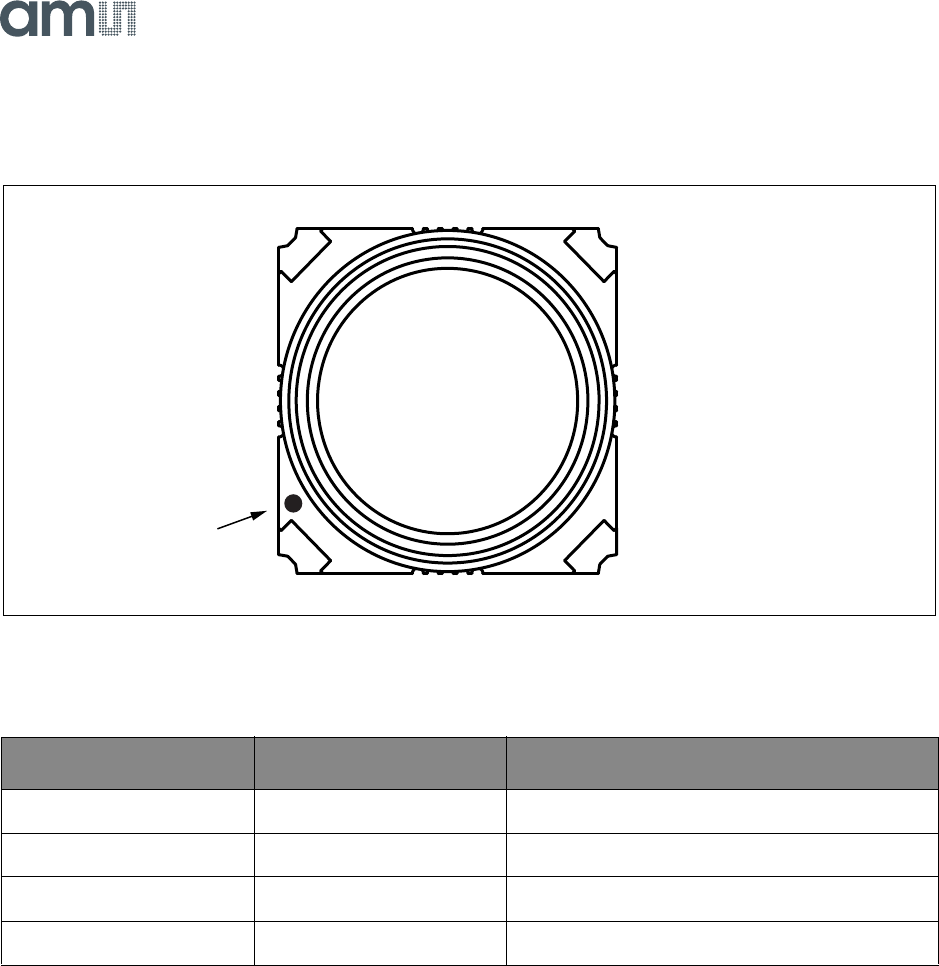

Figure 2:

Pin Diagram

Figure 3:

Pin Description

Pin Number Pin Name Description

1 RS1 Sensor electrode 1

2 RH1Heater 1

3 RS2 Sensor electrode 2

4 RH2 Heater 2

Pin Assignment

1

2

4

3

Pin 1 Indicator
