INSTALLATION INSTRUCTION
386 - Outdoor Wall Sconce
WS-W38608/WS-W38610
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

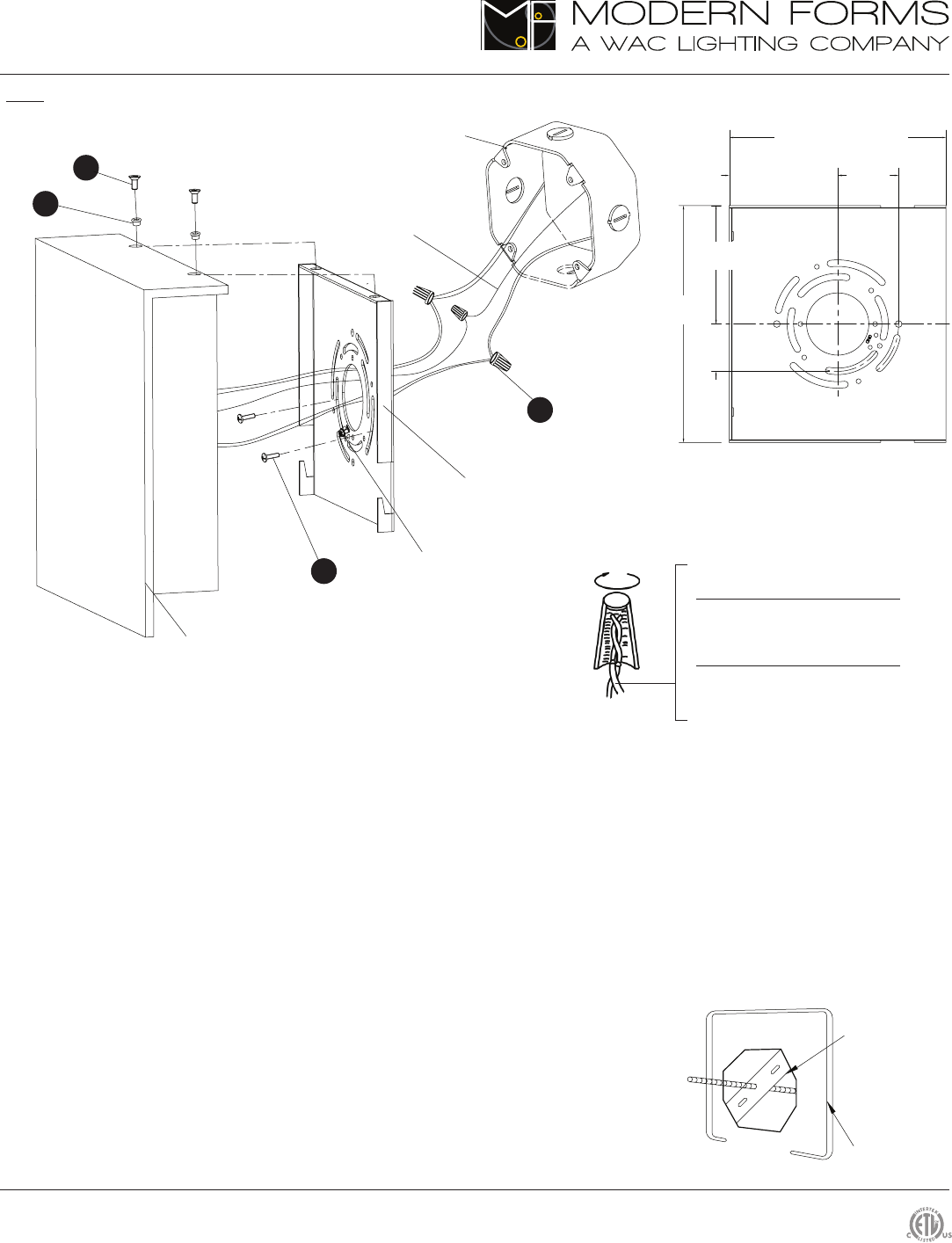

INSTALLATION (Fig. 1)
3. Remove the mounting screw (C1) and gasket (D1) from the mounting back plate.
4. Connect the xture wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A1) are secured. If your outlet box
has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the
back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
5. Secure the mounting plate to the junction box using junction box screws (B1).
The side of the mounting back plate marked “GND” must face out.
6. Place the xture on the mounting plate, and secure it with
mounting screw (C1) and gasket (D1).
7. To prevent moisture from entering the outlet box and causing a short,
use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the outside
of xture back plate where it meets the wall.
Leave a space at the bottom to allow moisture to escape Fig.3.
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig.2 Wiring
C1
D1
A1
B1
FIG.1
Back Plate Dimensions
Mounting Screw
Gasket
Ground Wire
Junction Box
Wire
Connector
Ground Wire
Screw
Mounting Plate
Junction Box
Screw
Fixture
Junction Box
Caulking
Fig.3 Sealing
1 1/2”
1 3/4”
WS-W38608 - 2 1/2”
WS-W38610 - 3 1/4”
WS-W38608 - 5”
WS-W38610 - 6 1/4”
WS-W38608 - 5 1/4”
WS-W38610 - 7 1/4”
WS-W38608 - 2 1/2”
WS-W38610 - 3 1/2”
