INSTALLATION INSTRUCTIONS
819 – LED Wall Sconce
WS-81910/WS-81916
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
FIG. 3 Wiring
FIG. 1
modernforms.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Modern Forms retains the right to modify the design of our products at any time as part of the company's continuous impro
vement program. Jan 2019
JANUARY, 2017
modernforms.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

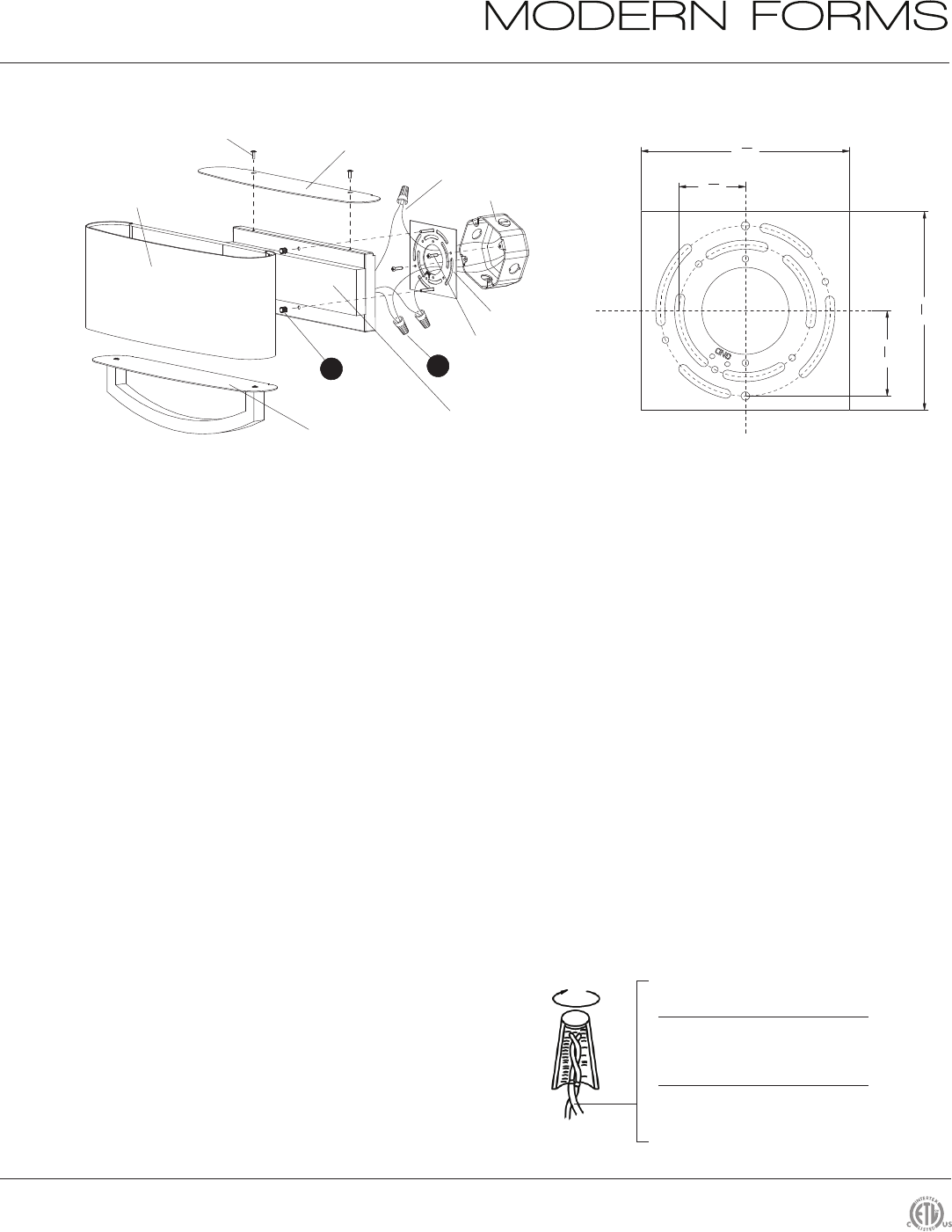

MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting nut (B) and mounting plate from the fixture.
4. Secure the mounting back plate to the junction box using the screws provided with the junction box.
NOTE: The side of the mounting plate marked “GND” must face out.
CONNECTING THE WIRES (Fig. 2)
5. Connect the fixture's wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure.
If your outlet box
has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the
back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
COMPLETING THE INSTALLATION
6. Secure the fixture to the mounting plate using the mounting nut (B) .
7. Remove the top screw and the top diffuser.
8. Tilt the bottom diffuser plate and place it in the fabric shade.
9. Hang the fabric shade over the gap in the lamp body.
10. Fix top diffuser on the lamp body with top screw.
Junction Box
Mounting Plate
Junction Box Screw
Wire Connector
Mounting Nut
Fabric Shade
(WS-81910:RPL-SHA-81910
WS-81916:RPL-SHA-81916)
A
B
Ground Wire
Top Diffuser
(WS-81910:RPL-DIF-81910-01
WS-81916:RPL-DIF-81916-01)
Internal Glass
(WS-81910:RPL-GLA-81910
WS-81916:RPL-GLA-81916)
Bottom Diffuser
(WS-81910:RPL-DIF-81910-02
WS-81916:RPL-DIF-81916-02)
Top Screw
Back Plate Dimensions
4
3
8
″
4
1 8
″
1
3 4
″
1
3
8
″
