Installation Sheet

INSTALLATION INSTRUCTION
208-LED Pendant
PD-64861
PREPARATION
1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts
necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screw (C) from the fixture.
4. Drill holes in the wall aligned with the key holes located in the mounting back plate, insert the plastic anchor (D).
5. Secure back plate to the junction box using junction box screws (B), fasten it to the wall using wood screw (E).The
side of the mounting plate marked “GND” must face out.
6. Connect the two lamp body components with hexagon nuts (F) and nuts (I) (Fig. 3).
7. Then, in turn the third, the fourth Lamp body assembly, after installed, like a circle (Fig. 4).
8. Steel cable through the Lamp canopy cable-gripper.Then braided wire line buckle through the gasket (G) and (H)
hexagonal nut fastening at the Lamp canopy
9. Braided wire can be divided into two groups, the total of two groups, one group connection one drive with wire
connectors (A), another group connection another drive with wire connectors (A);.
10. Adjust the fixture wire length by pushing the cable gripper on the canopy and pulling the wire as desired.

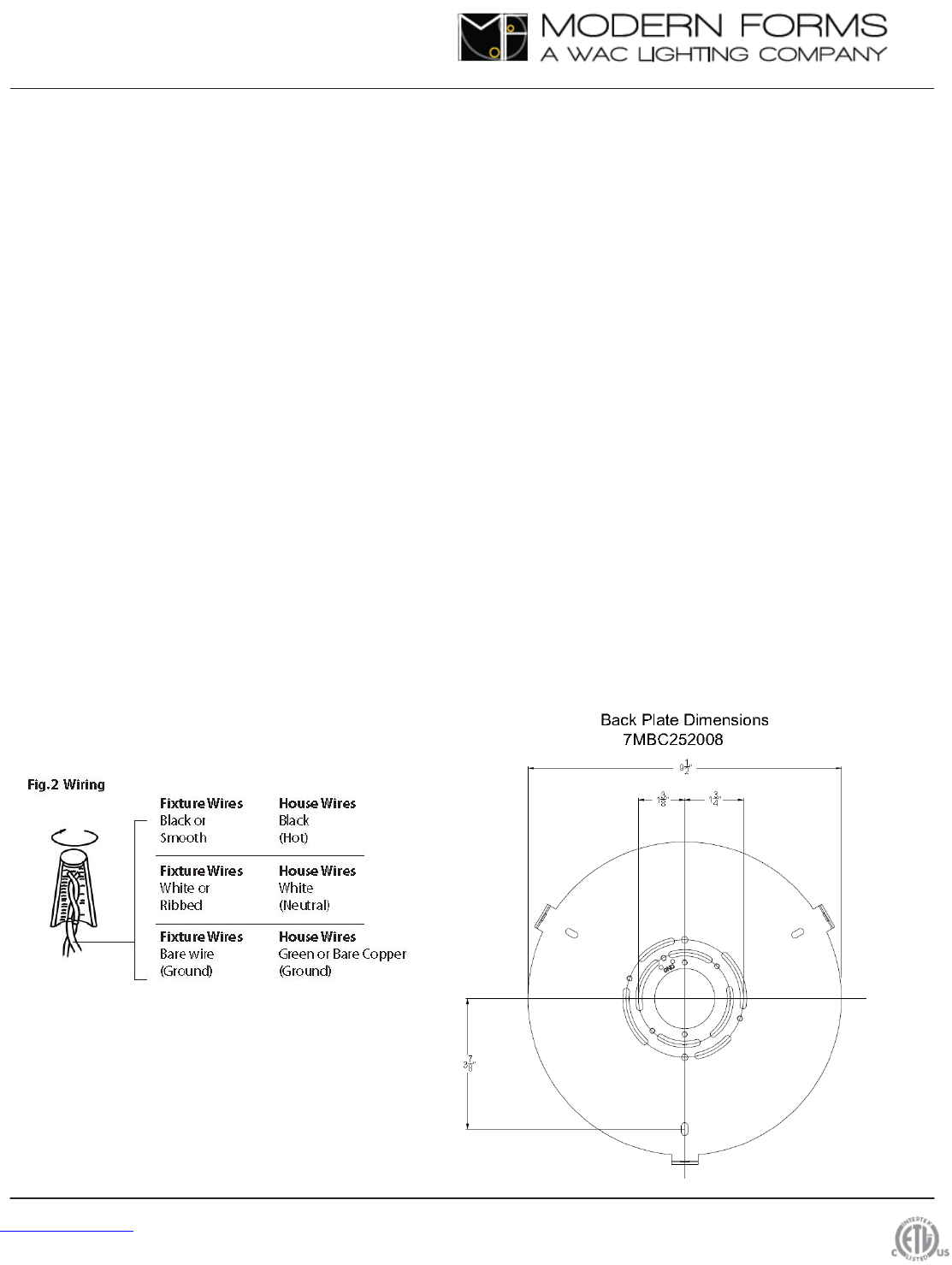

CONNECTING THE WIRES (Fig. 2)
11. Connect the driver input wires with junction box wires as shown in Fig.2, making sure that all wire connectors (A) are
secured. If your outlet box has a green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise,
connect the fixture’s ground wire directly to the mounting plate using the green screw provided. After wires are
connected, tuck them carefully inside the junction box.
12. Hook the four safety cords to the back plate. .
13. Place the fixture over the back plate and secure it with mounting screws (C) .






















