PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
CONNECTING THE WIRES (Fig. 2)
3. Remove the mounting screws (C1) from the xture.
4. Connect the driver input wires with supply wires as shown in Fig. 2, making sure that all wire connectors (A1) are secured. If your outlet box
has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the
mounting plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
*Requires Driver to be recessed within the junction box.

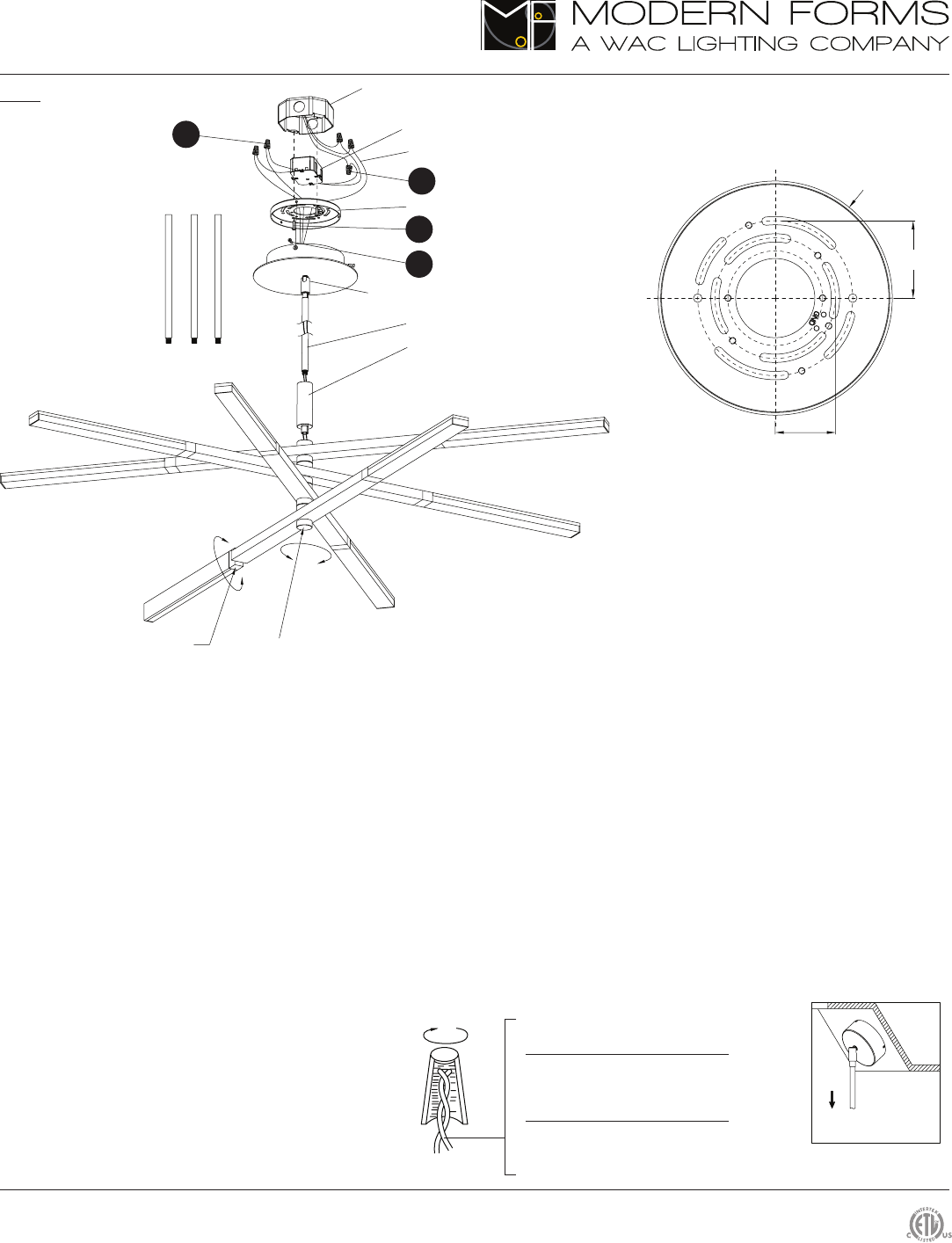

MOUNTING THE FIXTURE (Fig. 1)
5. Secure mounting back plate to the junction box using junction box screws (B1). The side of the mounting plate marked “GND”
must face out. Pull out the driver output wire.
6. Choose the number of down rods suitable of your application.
7. Thread the xture wire through the decorative stem, rods, swivel and canopy. Connect the canopy with swivel, rods, decorative stem and
xture body. Make sure all are tightened.
8. Connect the driver output wires with xture wire as
shown in Fig. 2, making sure that all wire connectors
(D1) are secured.
9. Place the xture over the mounting back plate and
secure it with mounting screws (C1).
10. The lamp arm and connecting rod can rotate 340
degrees; rotate them to your desired angles.
11. For slope ceiling application, rotate swivel at the top
of the stem to ensure luminaries are aiming down
(Fig. 3).
INSTALLATION INSTRUCTION
507 - LED Pendant
PD-50748
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig. 2 Wiring Fig. 3
Turn to down
Ø 5 3/8"
1 3/8"
1 3/4"
Mounting Screw
Junction Box Screw
Wire Connector
Ground Wire
Driver
Junction Box
Mounting Back Plate
Rods (3 x 12")
Rods (1 x 6")
Decorative Stem
Back Plate Dimensions
Swivel
Rotating Connecting Rod 340°
Wire Connector
Rotating Arm 340°
D1
C1
B1
A1
FIG. 1
