PREPARATION
1. Shut o the power at the circuit breaker and
remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all
the parts on a clear area. Be careful not to lose any
small parts necessary for installation.
CONNECTING THE WIRES (Fig. 2)
3. Remove the mounting screw (C) from the xture.
4. Adjust the xture wire length by pushing the cable
gripper on the canopy and pulling the wire as
desired.
5. Connect the Driver’s input wires to junction box
wires as shown in Fig. 2, making sure that all wire
connectors (A) are secured. If your outlet box has
a green or bare copper ground wire, connect the
xture’s ground wire to it. Otherwise, connect the
xture’s ground wire directly to the back plate
using the green screw provided. After wires are
connected, tuck them carefully inside the junction
box.
*Requires Driver to be recessed within the
junction box
MOUNTING THE FIXTURE (Fig. 1)
6. Secure the mounting back plate to the junction
box using junction box screws (B).The side of the
mounting back plate marked “GND” must face out.
7. Place the xture over the mounting plate and
secure it with mounting screws (C).
8. Remove the nut, take apart the cover. Insert the
bracket with LED module into the glass shade;
place the cover back on the top of the glass. Secure
the bracket and cover with nut.
INSTALLATION INSTRUCTION
288- Pendant
PD-28801
G0
Mounting Backplate
7MBC120803
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)

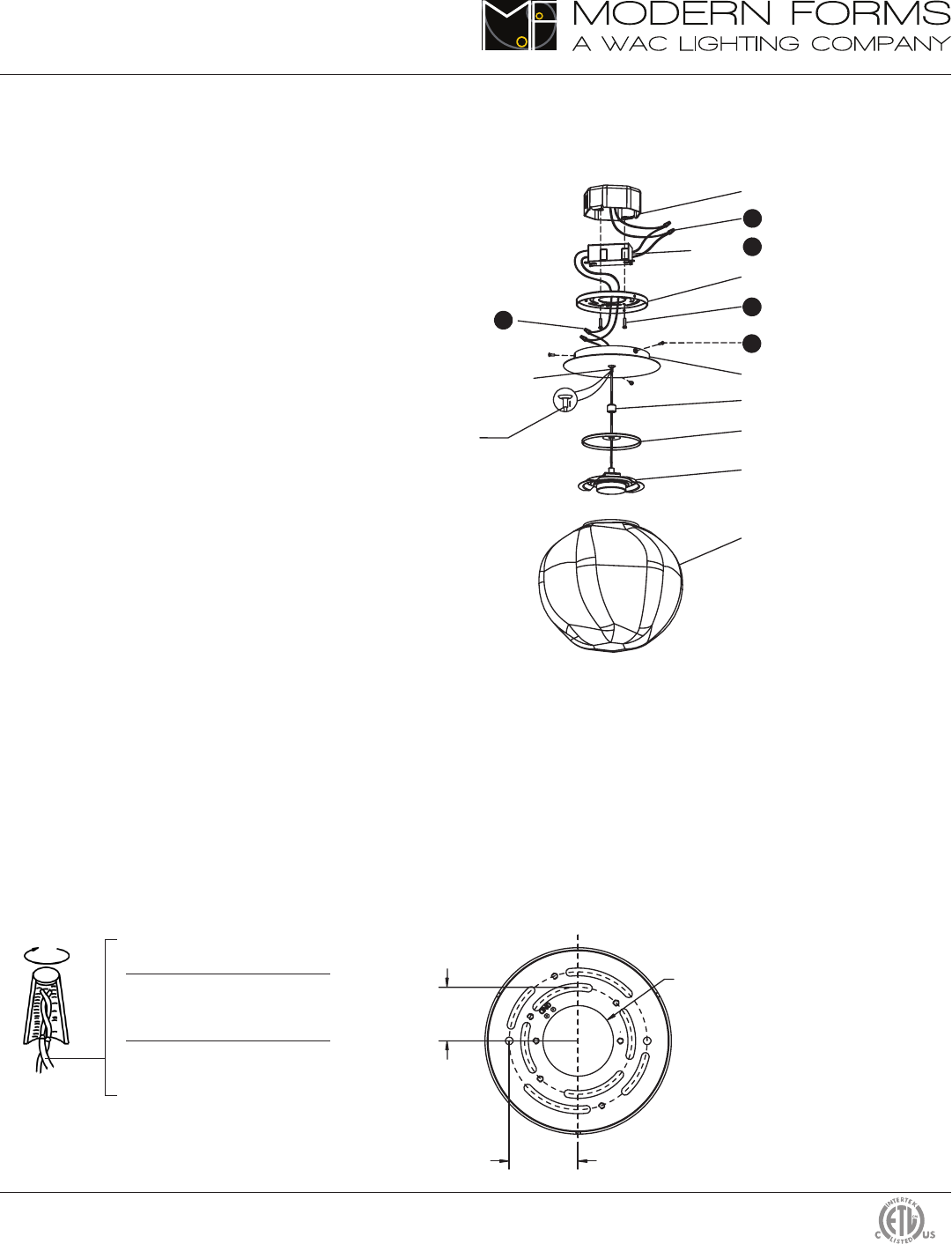

Fig. 2 Wiring
Fig.1 Mount on Switch Box
B

A

C
D
E
Junction Box
Wire Connector
Driver 2 3/4” L X 1 1/4” W X 1 3/16” H
Mounting Back Plate
Junction Box Screw
Mounting Screw
Canopy
Wire Connector
Cable Gripper
Push Up
Instruction: Adjust
the xture wire length
by pushing the cable
gripper on the canopy
and pulling the wire
as desired.
Nut
Cover
Bracket
Glass
RPL-GLA-28801
Ø1 3/4”
1 3/8”
1 3/4”
