Installation & Assembly

9FR-W1811
NOTE: ** denotes nish code of fan
1
10
7
3
4
9
15
6
5
14
2
8
11
12
13
Blade Collector
Ring
Canopy Ring
RPL-CAN-CYL-**
Adapter Plate
(optional)
Decorative
Lower Cap
Coupling
Cover
Safety Cable
6.5” x 19 x 2mm
Flat washer (1pcs)
Safety Cable
10 x 76mm Pan
head Phillips wood
screw (1pc)
Safety Cable
5.2 x 8.4 x1mm
Spring washer (1pc)
Hardware Bag
RPL-F1811-70-PARTS
Blade Screws
1/4” x 1/2mm
Phillips/Slotted pan
head screws (21pcs)
Blade Arm to Motor
1/4” x 11mm
Slotted pan head
screws (10pcs)
Blade Arm to Ring
4*9 Flat self-tapping
screws (11pcs)
Canopy
RPL-CAN-CYL-**
Motor Housing
Fan Blade
RPL-F1811-70-BD-**
Wall Control
F-WCBT-WT

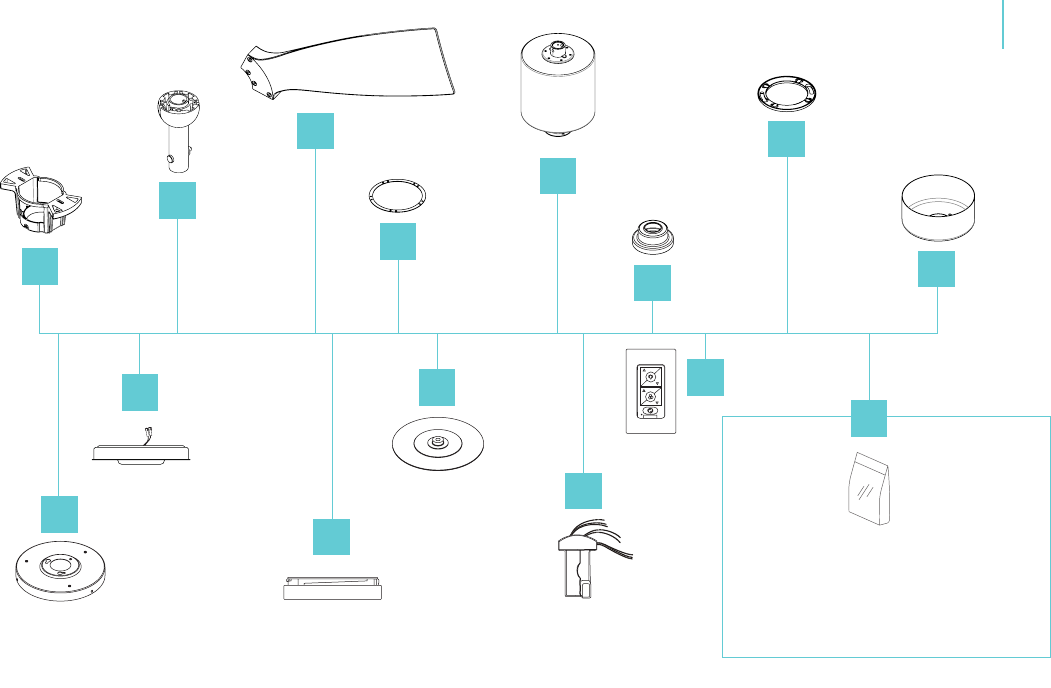

Package Contents
04
Downrod
Assembly
RPL-HGR-ASM-**
Mounting
Bracket
RPL-HGR-ASM-**
Glass Shade
(optional)
RPL-F1811-70-GLA
Luminaire Module
(optional)
F4IN-120V-R1-30
Receiver
F-R3-1811-070
