Installation & Assembly

FR-W181114

WHITE (NEUTRAL)

OUTLET BOX

BLACK (HOT)

BLACK (“AC IN L”)

RED (TO MOTOR)

GRAY (TO MOTOR)

YELLOW (TO MOTOR)

YELLOW (MOTOR)

GRAY (MOTOR)

RED (MOTOR)

RECEIVER

GREEN (GROUND)

TO HANGER BALL

GREEN (GROUND)

TO HANGER BRACKET

GREEN (GROUND)

WHITE (FOR LIGHT)

BLUE (FOR LIGHT)

WHITE (“AC IN N”)

GREEN (GROUND)

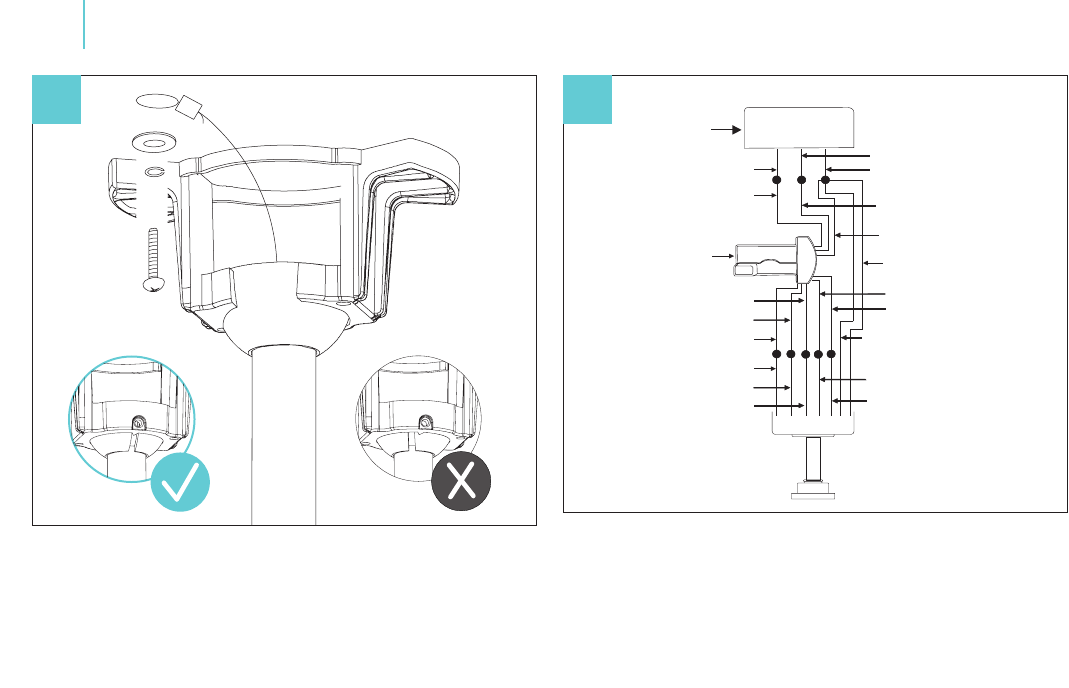

Hanging the Fan

1. Seat all into the mounting bracket. Rotate until ball drops and

locks into hanger bracket screw.

2. Secure safety cable to structure.

1. Connect the wires from fan to the corresponding wires on

the receiver.

2. Connect the wires from the outlet box to the corresponding

wires on the receiver.

NOTE: Follow wiring diagram found on the receive hardware.

Making the Electrical Connections
