Installation & Assembly

13FR-W1811

7 8

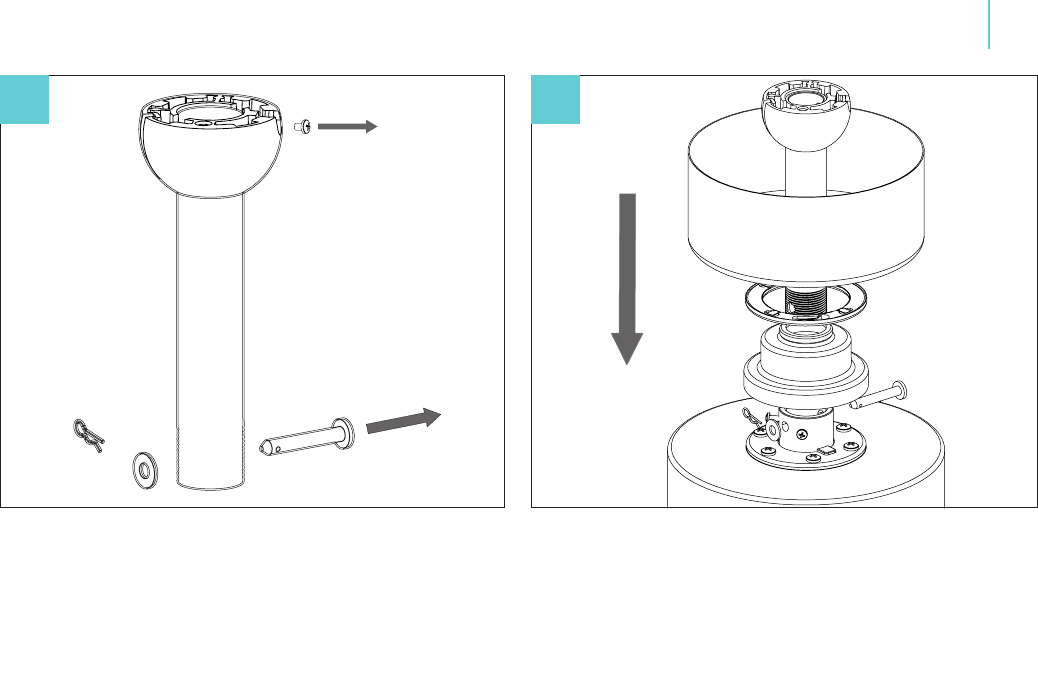

1. Remove screw from hanger ball. Remove hanger ball and

cross pin.

2. Loosen 2 screws, clevis pin and cotter pin.

1. Install coupling cover, canopy screw ring, canopy and downrod

assembly into motor housing as shown.

2. Align downrod and motor collar holes, re-insert pins and screws.

3. Slip up canopy and canopy screw cover. Re-install hanger ball

with cross pin in correct place.

Hanging the Fan
