INSTALLATION INSTRUCTION
608-LED Pendant
PD-60828/PD-60834
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for
installation.
MOUNTING THE FIXTURES (Fig. 1)
3. Remove the mounting screw (C) from the xture.
4. Drill holes in the wall aligned with the key holes located in the mounting back plate, insert the plastic anchor (D).
5. Secure back plate to the junction box using junction box screws (B), fasten it to the wall using wood screw (E).The side of the
mounting plate marked “GND” must face out.
6. Adjust the xture wire length by pushing the cable gripper on the canopy
and pulling the wire as desired.
CONNECTING THE WIRES (Fig. 2)
7. Connect the driver input wires with junction box wires as shown in Fig.2,
making sure that all wire connectors (A) are secured. If your outlet box has
a green or bare copper ground wire, connect the xture’s ground wire to
it. Otherwise, connect the xture’s ground wire directly to the mounting
plate using the green screw provided. After wires are connected, tuck them
carefully inside the junction box.
8. Place the xture over the back plate and secure it with mounting screws (C).
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig. 2 Wiring

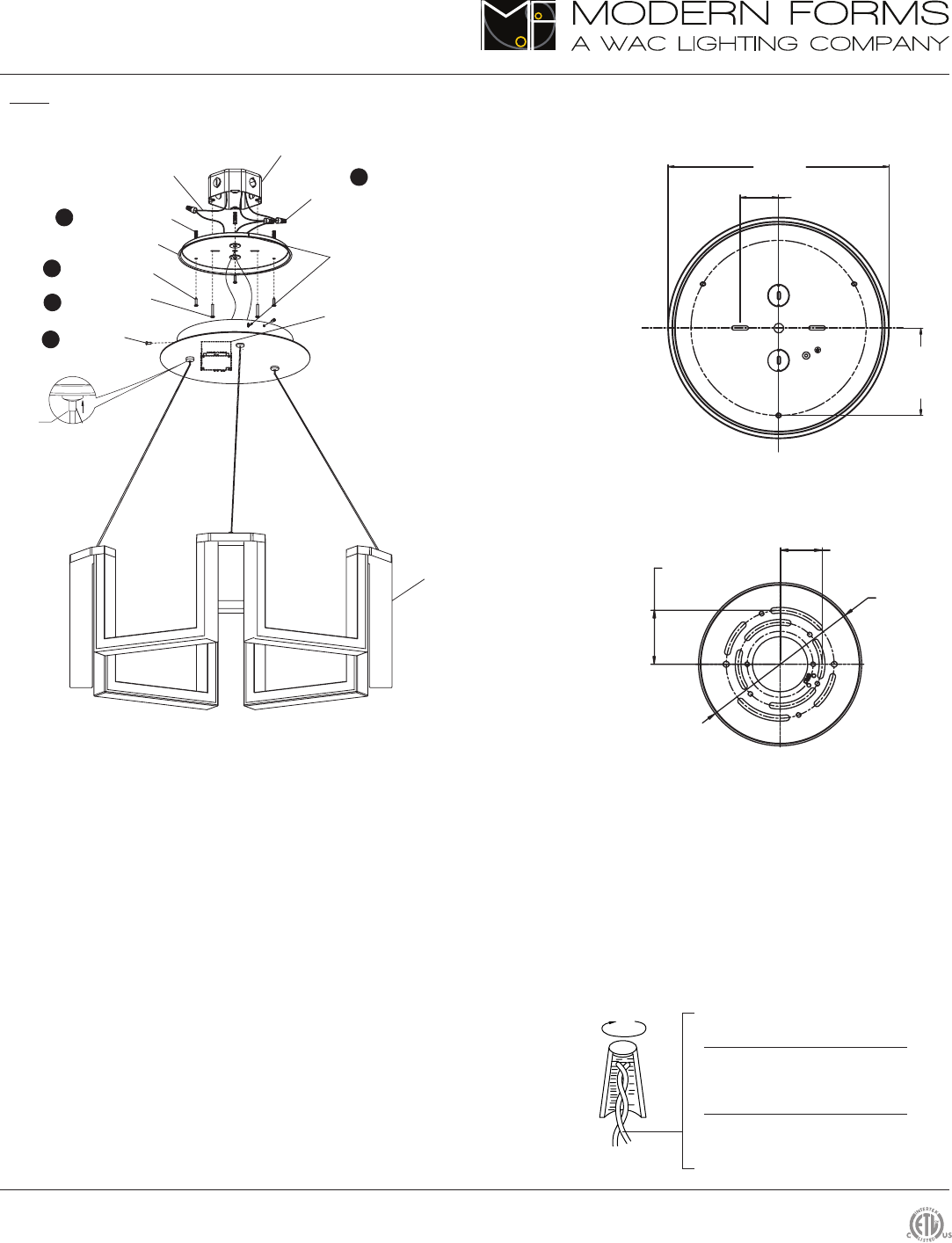

FIG. 1
Junction Box
PD-60834 Back Plate
PD-60838 Back Plate
Wire Connector
Location Label
8 7/8”
1 5/8”
3 1/2”
1 3/4”
1 3/8”
5 3/8”
Driver 3 1/2” L X 2 3/8” W X 1 1/4” H
Fixture
Cable-gripper
Mounting
Screw
Junction Box
Screw
Wood Screw
Back Plate
Plastic Anchor
D
E
B
C
A
Ground Wire
Push up
