PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture,
including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area.
Be careful not to lose any small parts necessary for installation.

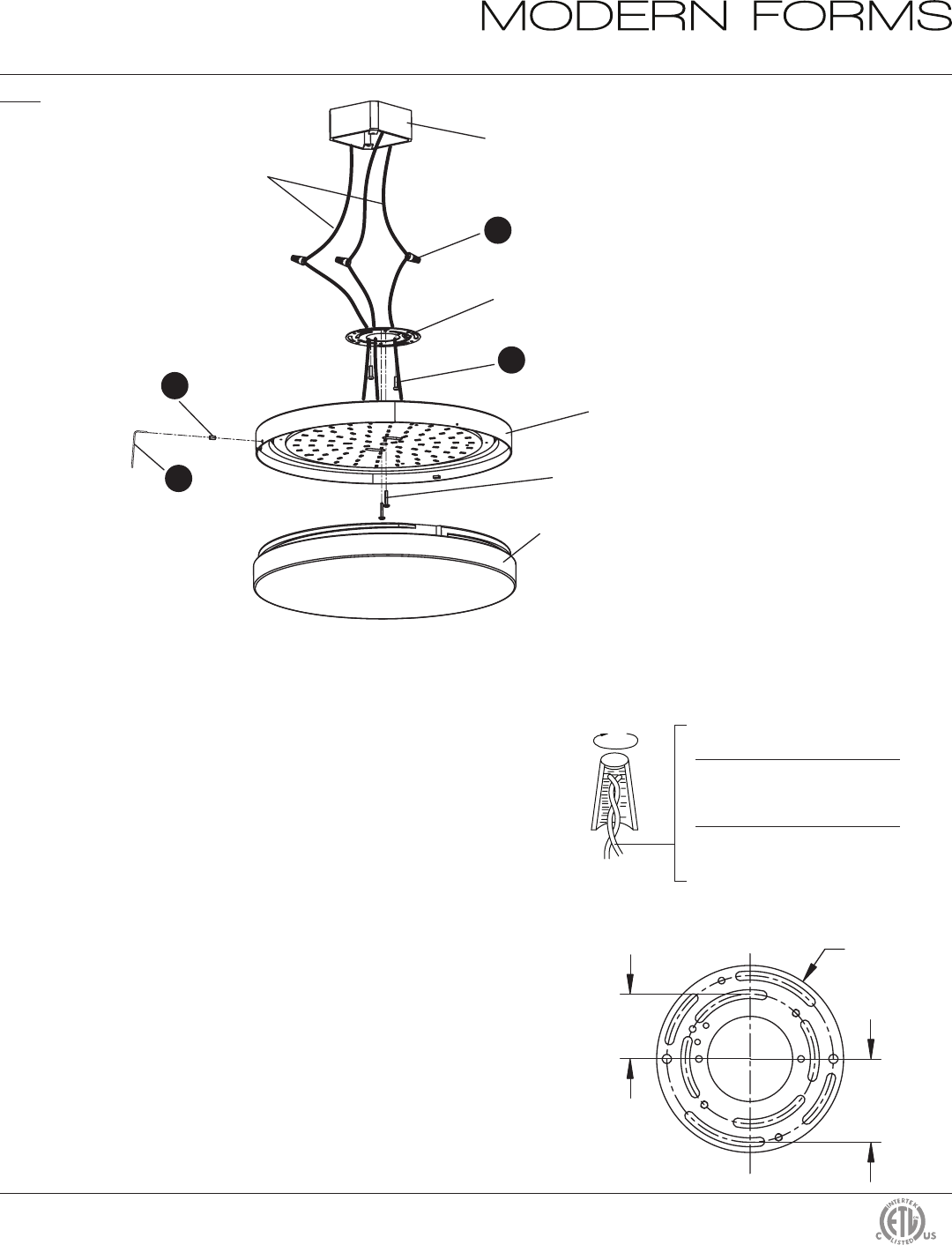

CONNECTING THE WIRES (Fig. 2)
3. Connect the xture wires with supply wires as shown in Fig. 2, making sure
all wire connector(A) are secured. If your outlet box has a green or bare
copper ground wire, connect the xture’s ground wire to it. Otherwise,
connect the xture’s ground wire directly to the mounting plate using the
green screw provided. After all wires are connected, tuck them carefully
inside the junction box.
MOUNTING THE FIXTURE (Fig. 1)
4. Secure mounting plate to the junction box using junction box screws (B).
The side of the mounting plate marked “GND” must face out.
5. Place the canopy over the mounting plate and secure with mounting screws.
6. Twist lock the glass into the canopy, then lock it with allen screw (C) using
allen wench (D).
A
B
C
D
FIG. 1
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Fig. 2 Wiring
Junction Box
Input Wires
Allen Screw
Allen Wrench
Wire Connector
Mounting Plate
Junction Box Screw
Canopy
Mounting Screw
Acrylic Lampshade
(Include Inside Lampshade)
Mounting Plate Dimensions
7MBC101501
4”
1 3/4”
1 3/8”
INSTALLATION INSTRUCTION
Pi - LED Outdoor
FM-W44806/FM-W44809/FM-W44812/FM-W44815
