Datasheet

TYPE OF PRODUCT:

CRIMP TOOL DOCUEMNTS

PRODUCT SPECIFICATION

Rev.: A-1

Page：1

PRODUCT

NAME:

Ratchet Crimp tool DIE SET: 11011

ITEM: 2026-8”(11011) PACKAGING

1.Blister + card

2.PE bag+ white box 3.Bulk

Feature：1. Usable for interchangeable die sets.

2. Ratchet action mechanism providing easy, repeatable and reliable crimps.

3. Usable for 18~30 AWG non-insulated open barrel D-sub RS232 pins & socketspins & sockets.

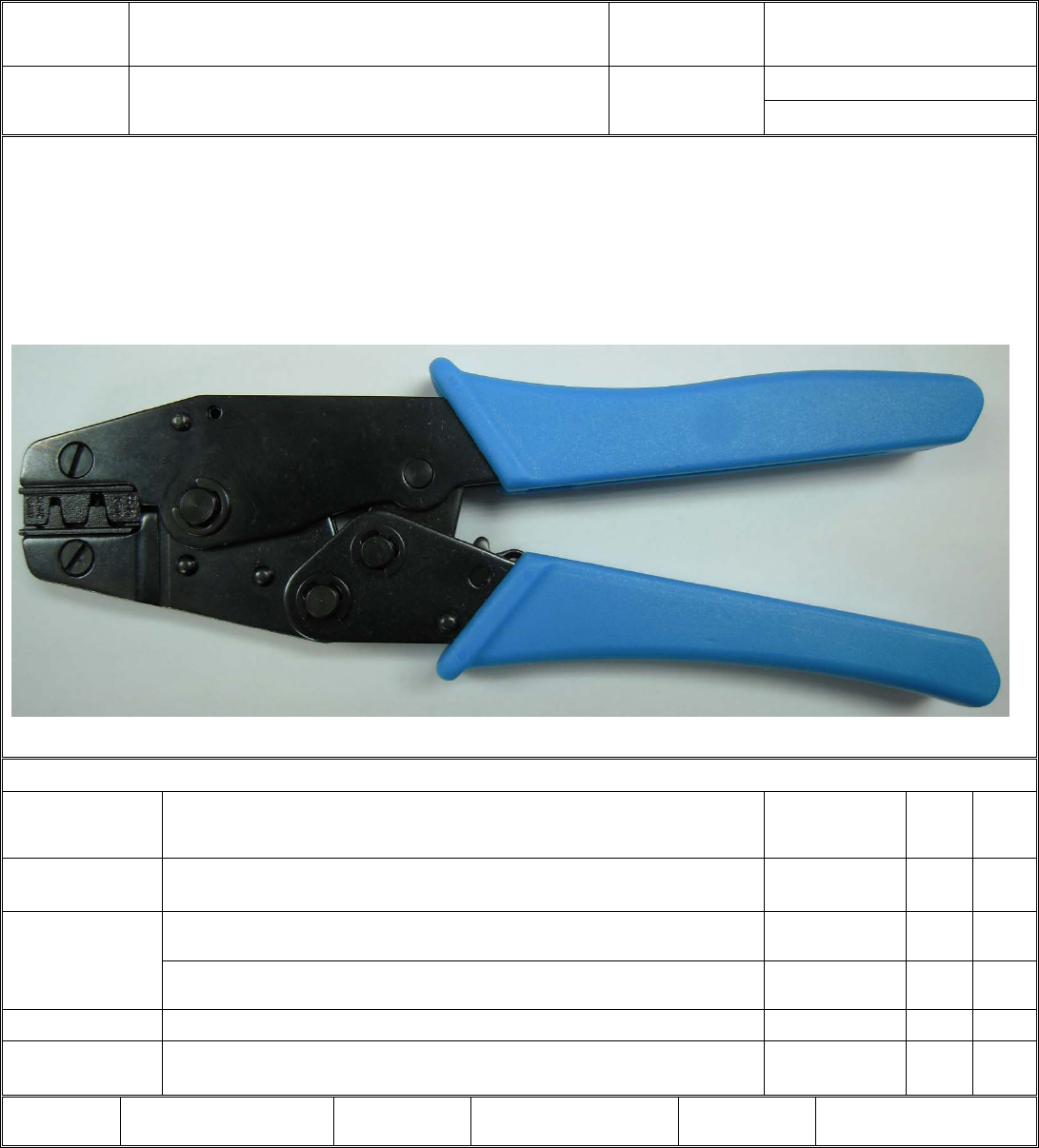

Picture：Frame material: S45C middle carbon, with black oxide finish, HRC45° ± 3°.

Grip material: PP Die set material: 4140 , HRC42°~ 45°

Weight：375 g ± 10g Length：202 mm± 3mm

CONTENT Acceptable level

INSPACTION

WAY

(MACHINE)

MAJ MIN

SURFACE Black color is uniform. No flaw or rust.

VISUAL

■

FUNCTION

Testing w/die set and the hole cannot be off center or too tight.

ACTUAL

OPERATION

■

Ratchet action mechanism operates unhindered.

ACTUAL

OPERATION

■

DIMENSION 202mm ± 3mm NONIUS

■

HARDNESS HRC45° ± 3°

HARDNESS

TEST

■

APPROVED:

ISSUE DATE:

PAGE 1
