User's Manual

Band 12, 17 700MHz Lower
Band Frequency
Band 13 700MHz Upper
Band 5 850MHz
Band 4 1700/2100MHz
Band 2, 25 1900MHz ext
RX High Power Attenuation
Oscillation Attenuation
Orange LED
Green LED
Hp Att
Osc Att

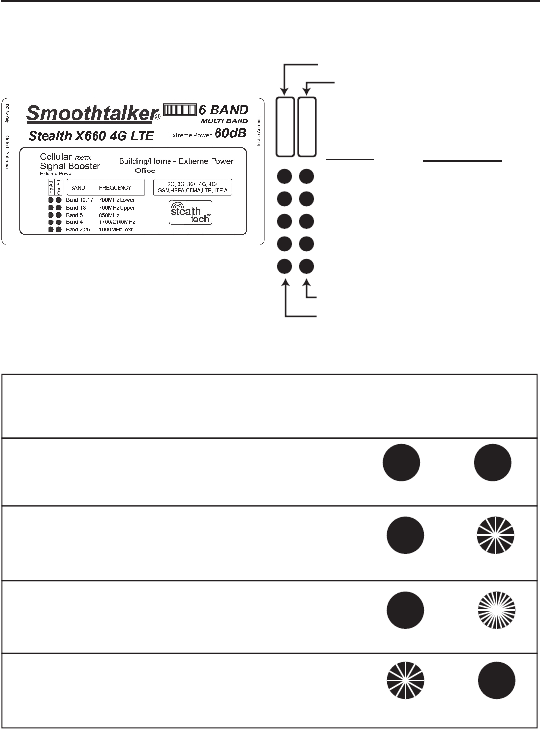

Understanding the LED Indicators
6
LED Lights Status Explanation
ON ON
ON
SLOW FLASHING
SOLID ONSOLID ON
SOLID ON
SOLID ON SLOW FLASHING
FAST FLASHING
OFF
ON/
ORANGE LED
High Power
GREEN LED
Oscilation
Attenuation (Att)
Orange Solid ON = Full Gain & Green Solid ON = Full Gain
Orange Solid ON & Green Slow Flashing = Oscillation Att
Orange O & Green Fast Flashing = Oscillation Shutdown
Orange Slow Flashing & Green Solid ON = RX High Power Att
Each ash indicates up to 3dB of gain reduction also known as gain attenuation.
For example: three ashes equals 9dB of attenuation.
No Flashing = Full Gain
Each Flash = up to 3dB of gain reduction
Each Flash = up to 3dB of gain reduction
Fast Flashing = booster shutdown (pls troubleshoot)
