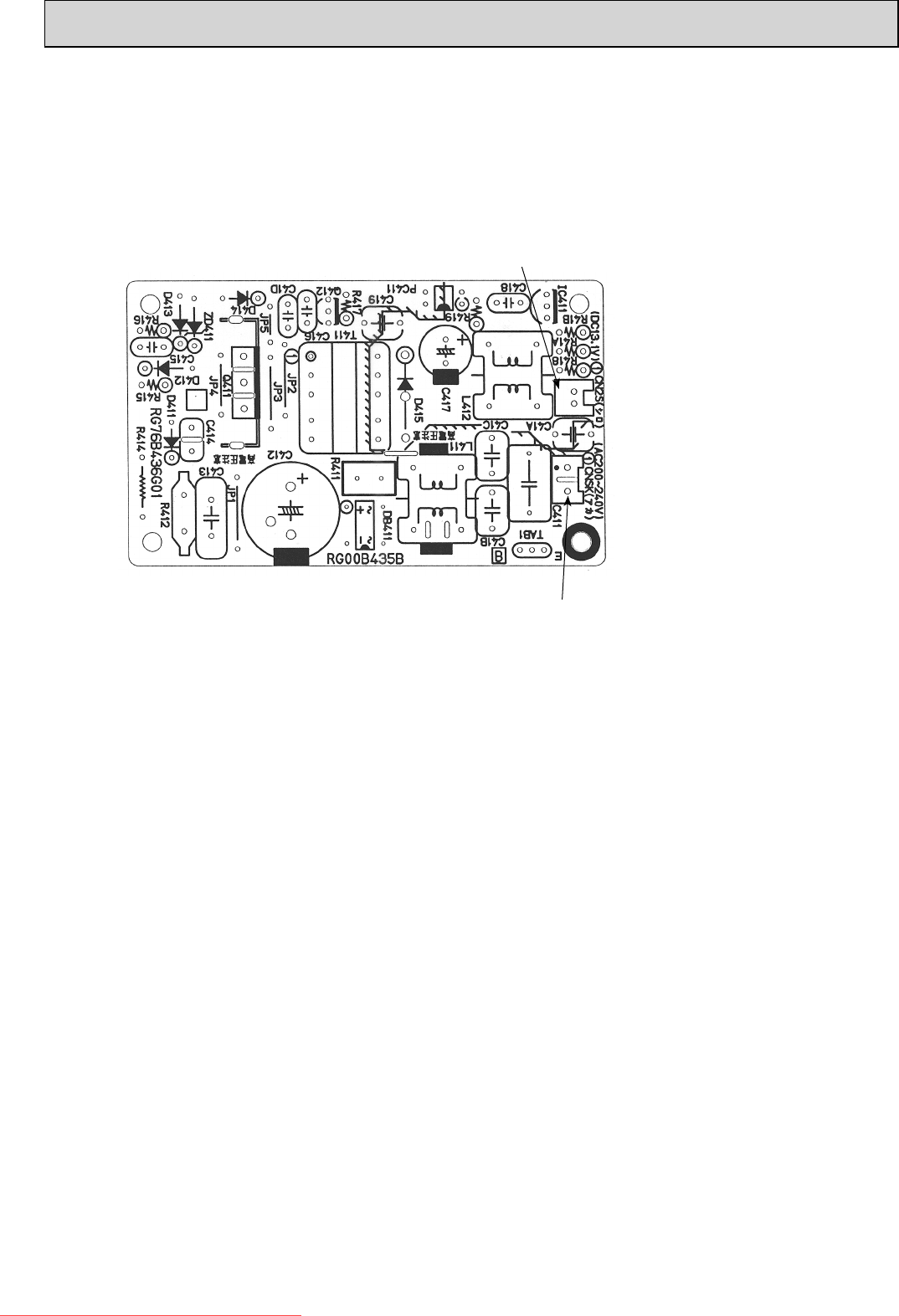

10-6. TEST POINT DIAGRAM
10-6-1. Power board
PCA-RP71HA PCA-RP71HA#1
PCA-RP125HA PCA-RP125HA#1
CNSK
Connect to the indoor controller board
(CNDK)
Between 1 to 3 220-240V AC
CN2S
Connect to the indoor controller board (CN2D)
Between 1 to 3 12.6-13.7V DC (Pin1 (+))
