6 - 11 6 - 11

MELSOFT

6. PROJECT CREATION

6.6 Reading other Format Files

6.6.1 Reading SW1RX/IVD/NX-AD75P / GX Configurator-AP format file

PURPOS

The positioning data, M code comments, block start data, condition data,

parameters, servo parameters are read from the file of the MELSEC-A series

software package (SW1

-AD75P, GX Configurator-AP) as a new project of GX

Configurator-QP. (Note that they cannot be read to the LD75/LD77 project.)

BASIC OPERATIO

1. Click the [Project]

[Import file]

[File reading of SW1RX/IVD/NX-AD75P] /

[File reading of SW0D5C-AD75P] menu.

2. Choose the file in the Open dialog box and click the "Open" button.

3. Click the "OK" button in the read destination confirmation dialog box.

4. Set the QD75 model, project save path, project name and project title in the

Other file type project dialog box. (Refer to Section 6.1 "HELPFUL

OPERATION (PART 1)".)

5. Click the "OK" button.

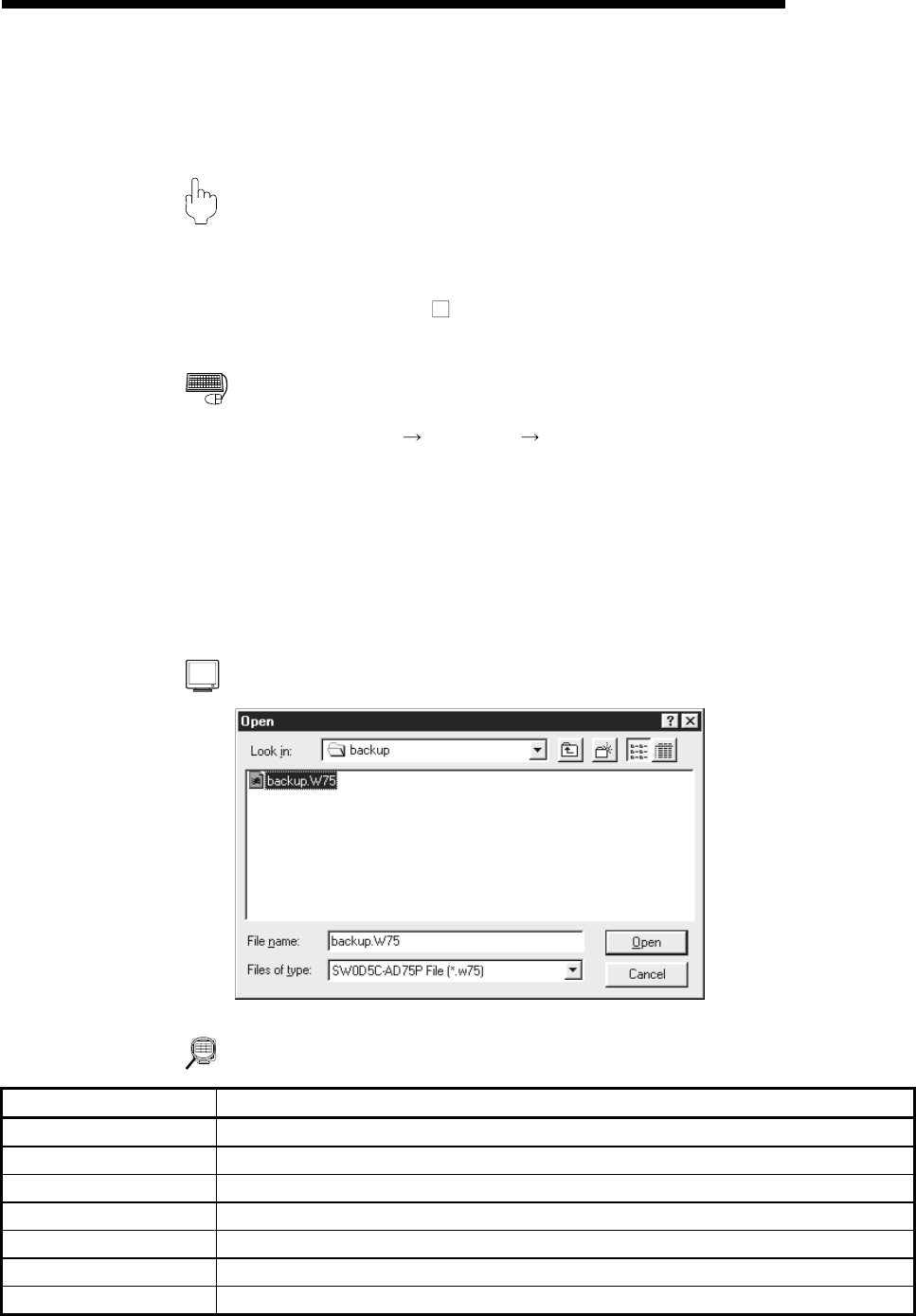

DISPLAY/SETTING SCREE

(The screen shows an example of GX Configurator-AP file read.)

DISPLAY/SETTING DATA

Item Description

Look in Choose the project save path of the file you will read.

File name Set the file name you will read.

Files of type SW1RX/IVD/NX-AD75P File (*.d75) or SW0D5C-AD75P File (*.w75) appears.

"Up One Level" button Click this button to show the folder one level above the currently displayed folder.

"List" button Click this button to list files and folders.

"Details" button Click this button to display the file and folder in detail.

"Open" button Click this button to read the file.
