MELSOFT

6. PROJECT CREATION

6.1 Creating a New Project

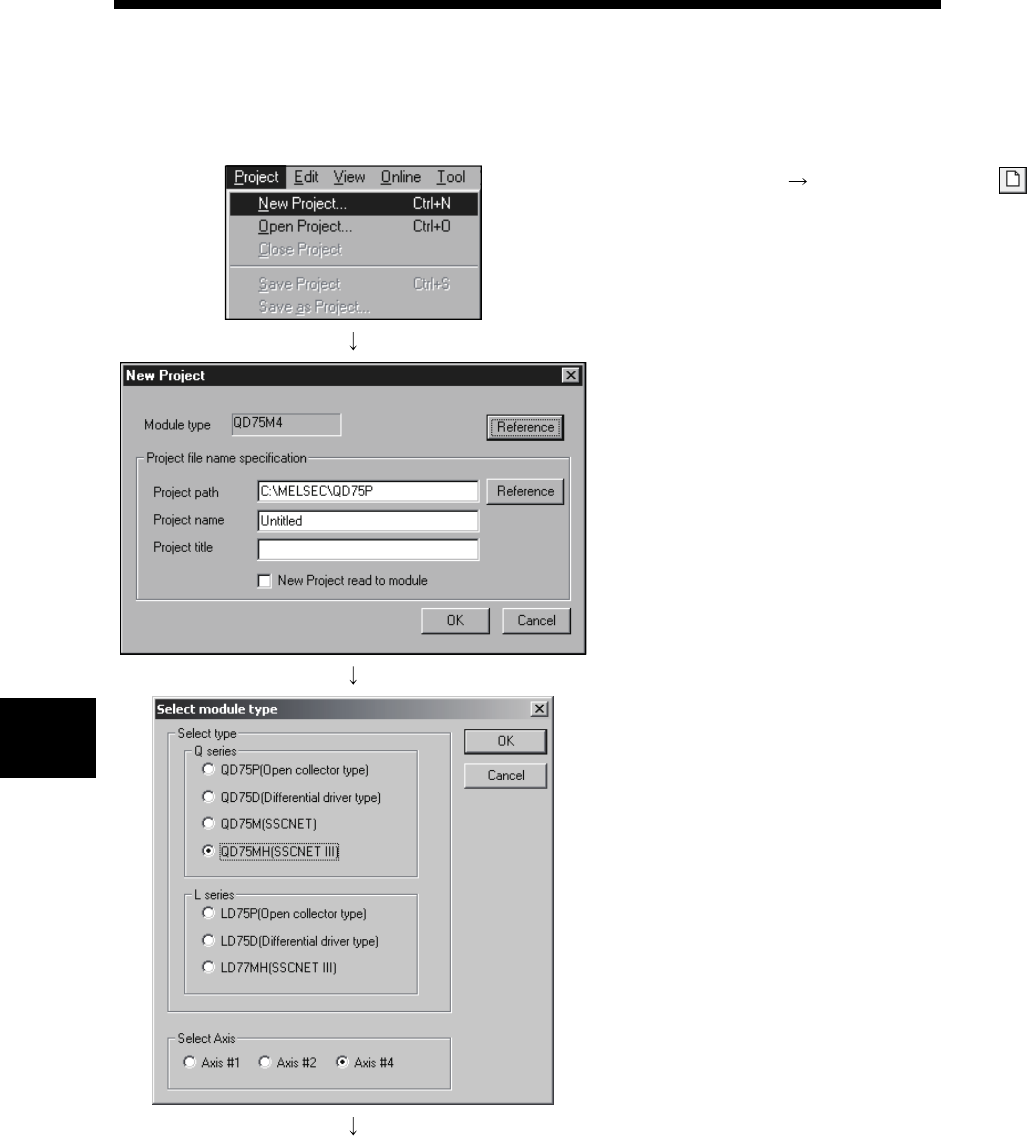

Set the QD75/LD75/LD77 model used to create a new project and the project items.

1) Click the [Project]

[New Project] menu ( ).

2) Click the "Reference" button of the Module type in

the [New Project] dialog box.

(To the next page)

3) Choose the Select type and Select Axis radio

buttons.

4) Click the "OK" button.
