4 - 26 4 - 26

MELSOFT

4. INSTALLATION AND UNINSTALLATION

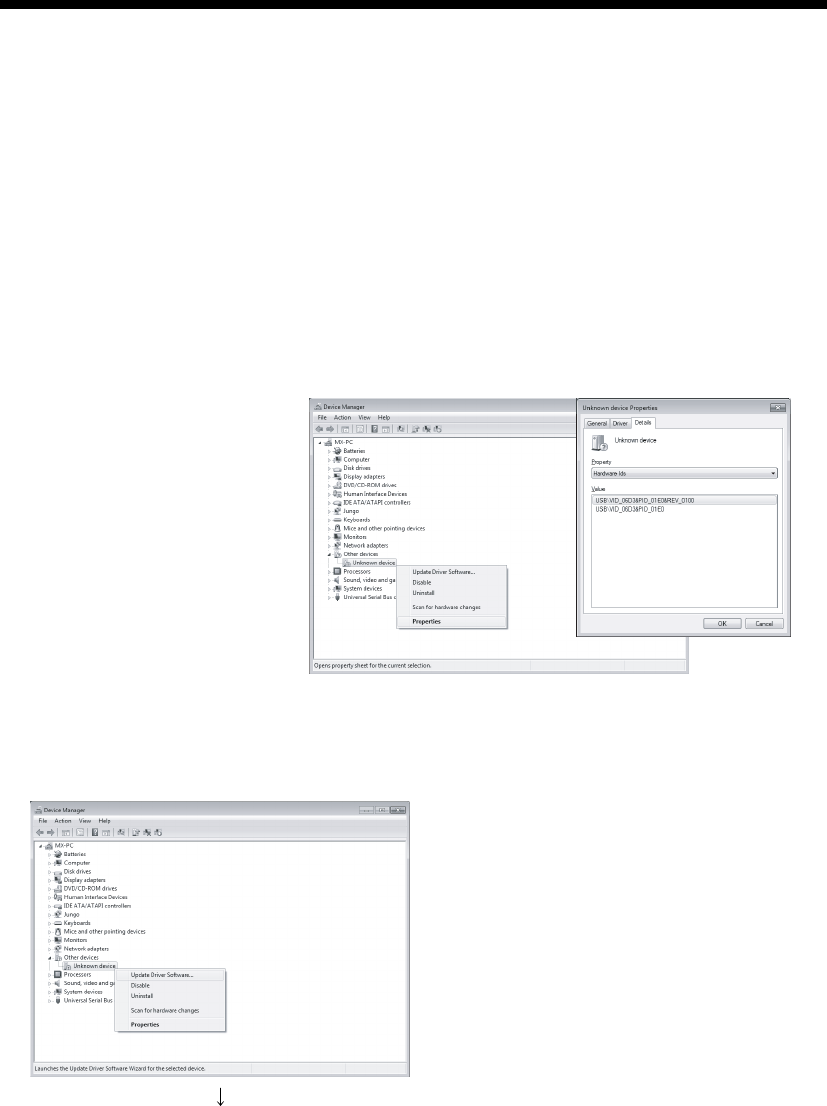

(2) Procedure for upgrading the USB driver for GOT connection

(a) Check method

While the personal computer is connected to GOT with USB, power off and

then on the GOT and then start the Windows Device Manager.

If "MITSUBISHI GOT1000 USB Controller" is not displayed under

"Universal Serial Bus controllers", and "Unknown device" is displayed under

"Other devices", the driver needs to be upgraded.

The "Unknown device", whose "Hardware Ids" is

"USB\VID_06D3&PID_01E0" in the "Details" tab of the "Unknown device

Properties" dialog box, is the upgrade target.

(b) Upgrade procedure

1) Connect the personal computer to the GOT with USB

cable.

(To the next page)

2) Start the Windows Device Manager, right-click

"Unknown device", and select "Update Driver

Software…".
