MELSOFT

4. INSTALLATION AND UNINSTALLATION

(From the previous page)

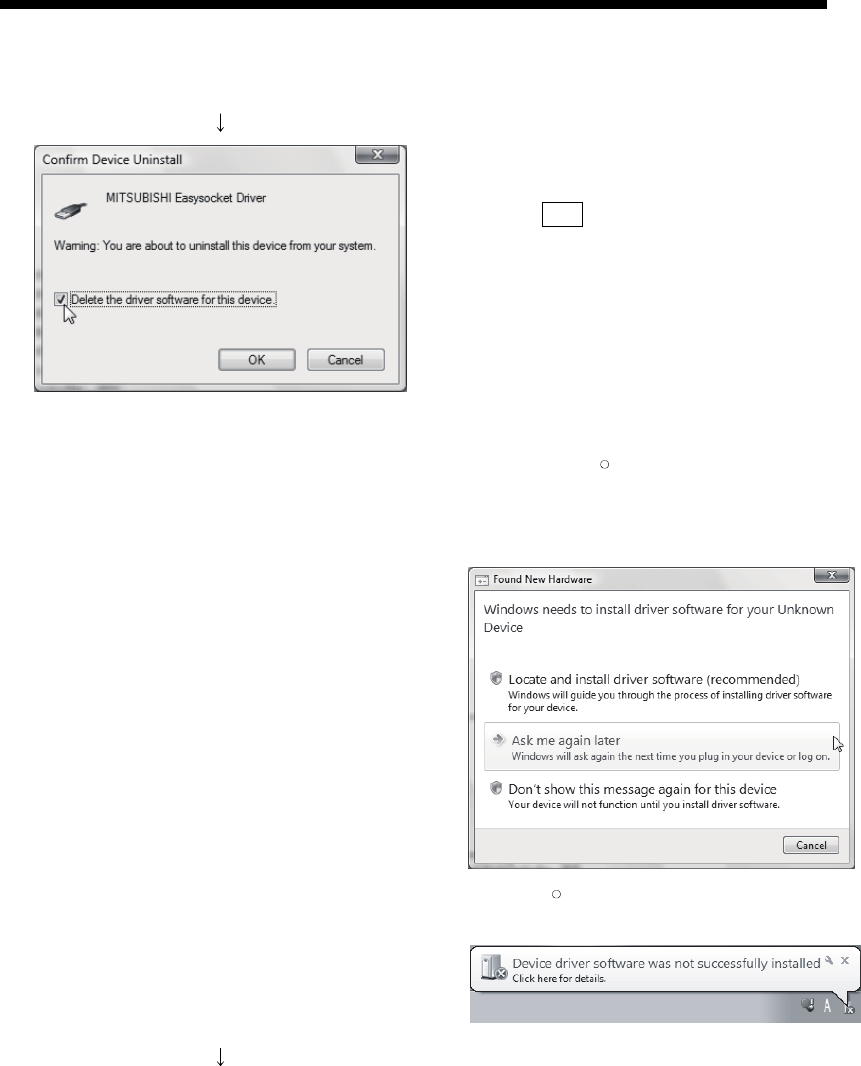

3) The warning dialog box shown on the left appears.

Select "Delete the driver software for this device." and

click the OK button.

4) Disconnect the USB cable and reconnect it to the same

USB port after 5 seconds.

[Windows Vista

]

The confirmation dialog box the following screen

appears.

Select "Ask me again later".

[Windows

The following balloon appears for a little while.

(To the next page)
