4. INSTALLATION AND UNINSTALLATION

(From the previous page)

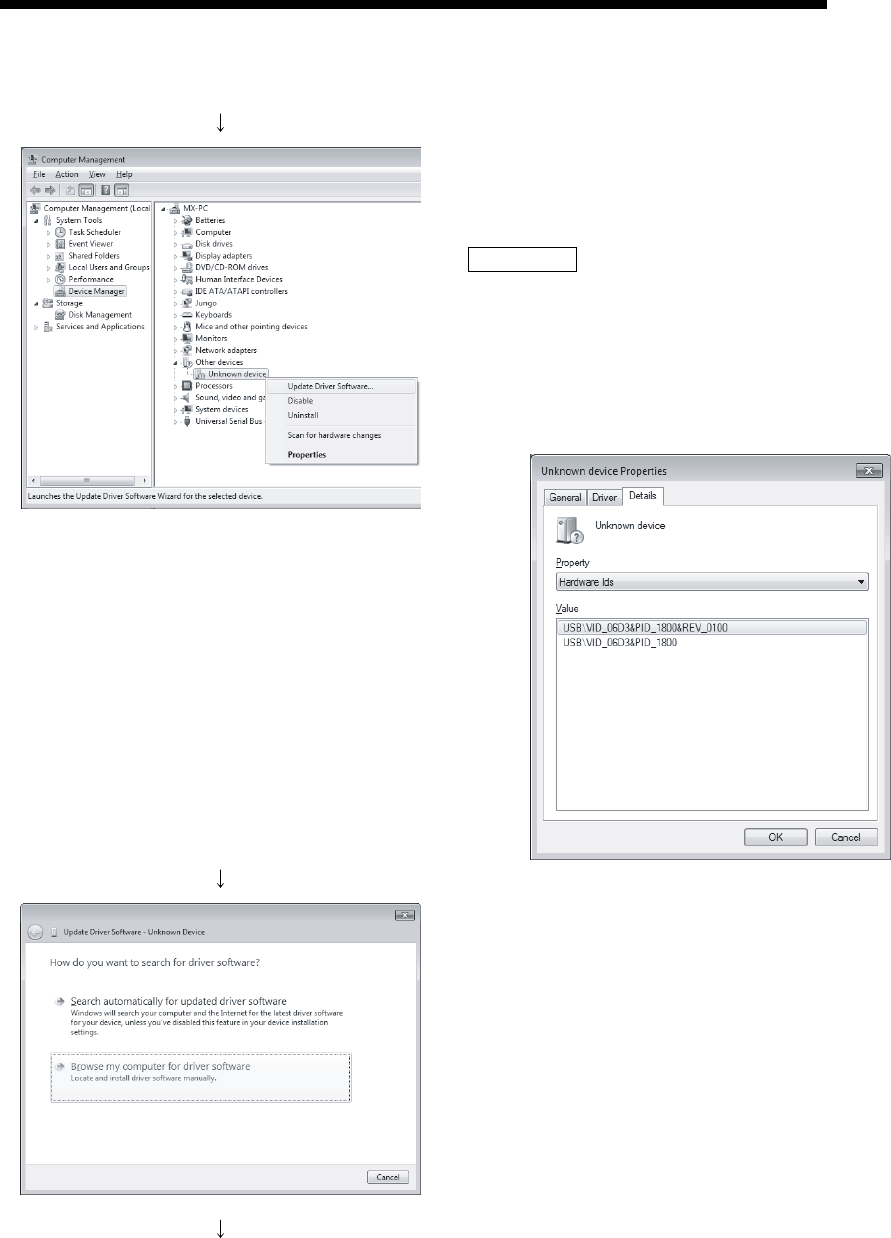

5) Right-click "Unknown device" in the Windows Device

Manager as shown left, and select "Update Driver

Software…".

REMARKS

If multiple 'Unknown devices' exist therefore cannot be

specified, right-click "Unknown device" as shown left and

select "Properties". The "Unknown device", whose

"Hardware Ids" is "USB\VID_06D3&PID_1800" on the

<<Details>> tab of the properties screen, is the update

target.

6) The screen shown on the left appears. Select "Browse

my computer for driver software".

(To the next page)
