4 - 16 4 - 16

MELSOFT

4. INSTALLATION AND UNINSTALLATION

[3] When Windows Vista

is used

The following shows installation procedure of USB driver when using Windows Vista

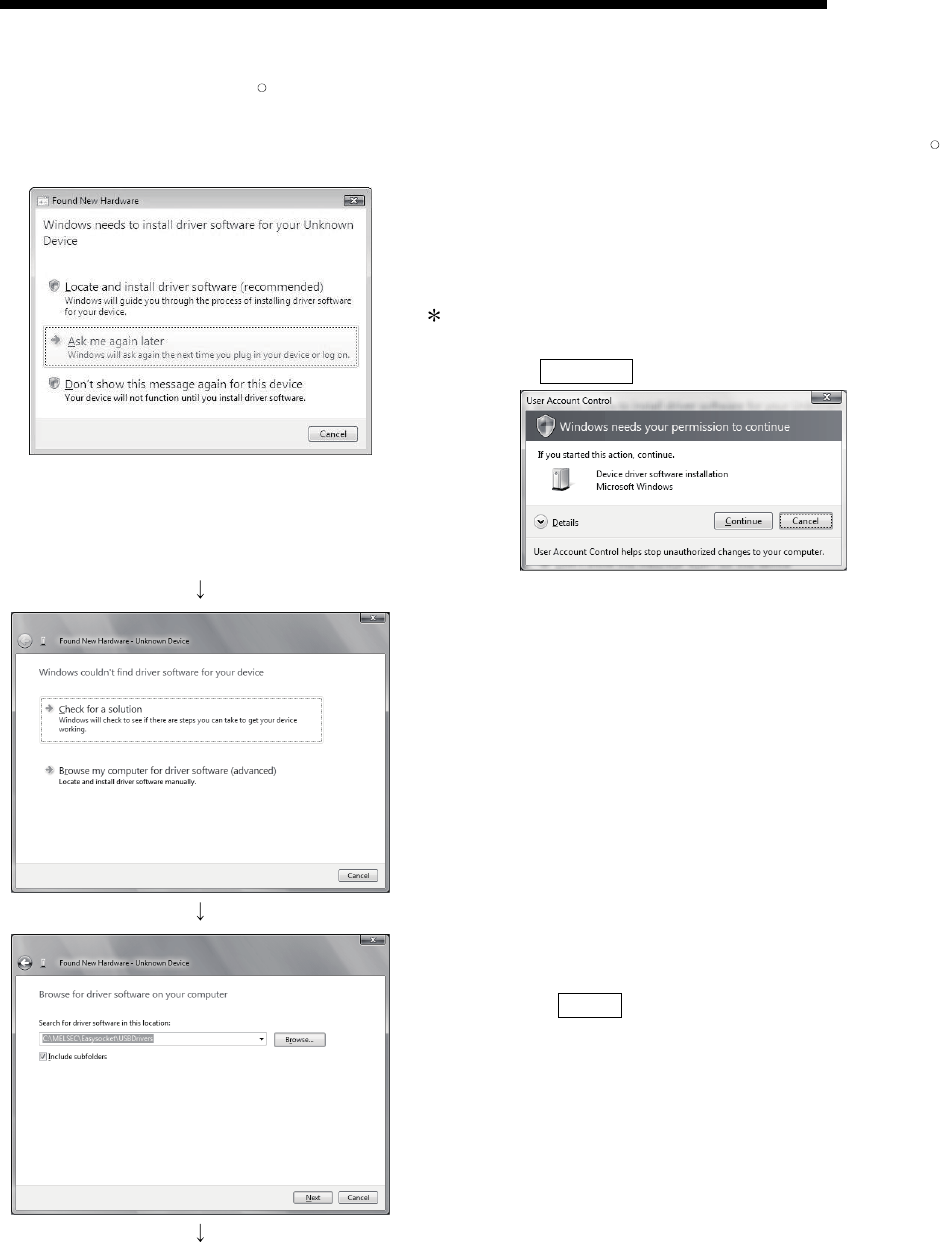

1) The screen shown on the left appears when the personal

computer and the CPU module is connected with USB cable.

Choose "Locate and install driver software

(recommended)" and wait until searching ends.

: When user account control is enabled, the following

screen appears.

Click the Continue button.

2) The left screen appears. Choose "Browse my computer for

driver software (advanced)".

3) The left screen appears. Set installation location of GX

Developer, "Easysocket\USBdrivers".

Then, click the Next> button.

The left screen shows an example when

C:\MELSEC\Easysocket\USBdrivers is set.

If multiple MELSOFT products have been

installed, refer to the installation location of the first

installed product.

(To the next page)
