4 - 12 4 - 12

MELSOFT

4. INSTALLATION AND UNINSTALLATION

4.1.3 Installing the USB Driver

To communicate between the personal computer on which Windows

2000

Professional, Windows

XP, Windows Vista

, or Windows

7 has been installed and

the CPU module with USB, install a USB driver.

The following is the USB driver installation procedure.

If the USB driver cannot be installed, check the following setting.

• When Windows

2000 Professional is used

If you have selected "Block-Prevent installation of unsigned files" after [Control

Panel] - [System] - [Hardware] - [Driver Signing], the USB driver may not be

installed.

Choose "Ignore-Install all files, regardless of file signature" or "Warn-Display a

message before installing an unsigned file" for [Driver Signing], and install the

USB driver.

• When Windows XP used

If you have selected "Block-Never install unsigned driver software" after [Control

Panel] - [System] - [Hardware] - [Driver Signing], the USB driver may not be

installed.

Choose "Ignore-Install the software anyway and don't ask for my approval" or

"Warn-Prompt me each time to choose an action" for [Driver Signing], and install

the USB driver.

[1] When Windows

2000 Professional is used

The following indicates the procedure for installing the USB driver when using

Windows

2000 Professional.

(To the next page)

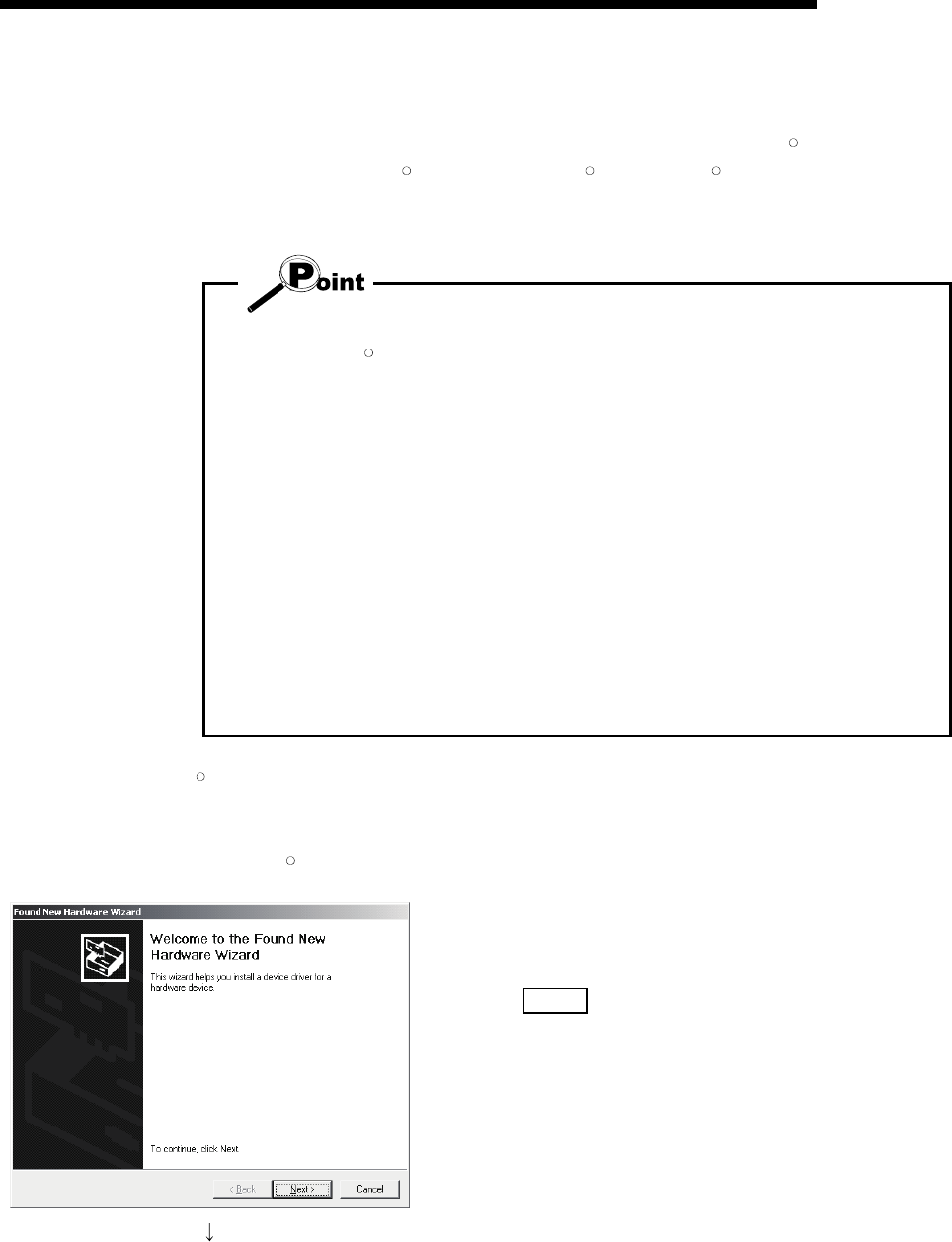

1) The screen shown on the left appears when the personal

computer and the CPU module is connected with USB

cable.

Click the Next> .
