MELSOFT

2. SYSTEM CONFIGURATION

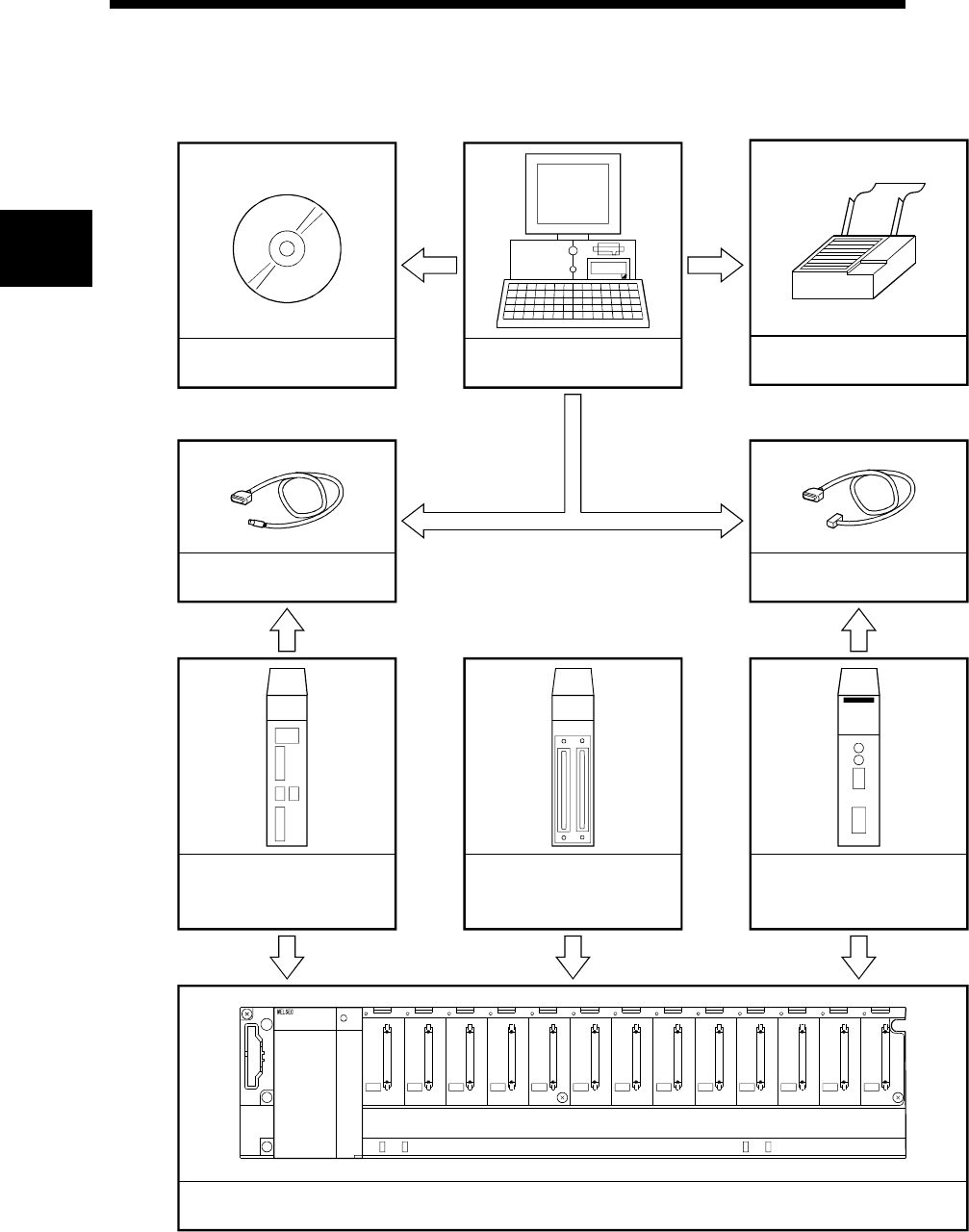

(b) Connecting to Q corresponding MELSECNET/H network remote

I/O module directly

Peripheral device

Printer

QC30R2 cable

(user-prepared)

RS-232 cable

(user-prepared)

Q corresponding serial

communication module

(QJ71C24(N),QJ71C24(N)-R2)

POWER

Main or extension base unit

and power supply module

Q corresponding MELSECNET/H

Network remote I/O module

(QJ72LP25-25, QJ72BR15,

QJ72LP25G,QJ72LP25GE)

GX Configurator-QP (CD-ROM)

QD75P1/P2/P4

QD75D1/D2/D4

QD75M1/M2/M4

QD75MH1/MH2/MH4
