MELSOFT

11. USEFUL FUNCTIONS

11.7.2 Positioning data test edit

PURPOS

Change the positioning data or block start data in the test mode and write them to

the QD75/LD75/LD77.

BASIC OPERATIO

1. Click unchecked Write data enable flag in Option. (Refer to Section 11.5.)

2. Click the [Online]

[Test]

[Test On/Off] menu (

3. The positioning data/block start data edit window appears. (Refer to Section

8.3.1/Section 8.5.1.)

4. Click the [Online]

[Test]

[Edit positioning data] menu (

5. Edit the positioning data/block start data. (Refer to Section 8.3.1. / 8.5.1.)

6. Clicking the [Online]

[Test]

[Edit positioning data] menu ( ) shows the

dialog box which confirms whether to write the edited data to the

QD75/LD75/LD77 or not.

7. Click the "OK" button to write to the QD75/LD75/LD77 the positioning data or

block start data changed in the test mode.

When you click [Cancel], write to QD75/LD75/LD77 is not performed.

If the Write data enable flag in Option is not made valid, the data changed or set in

the test mode are not retained.

Make the Write data enable flag invalid when you do not change the positioning

data on the peripheral device.

DISPLAY/SETTING SCREE

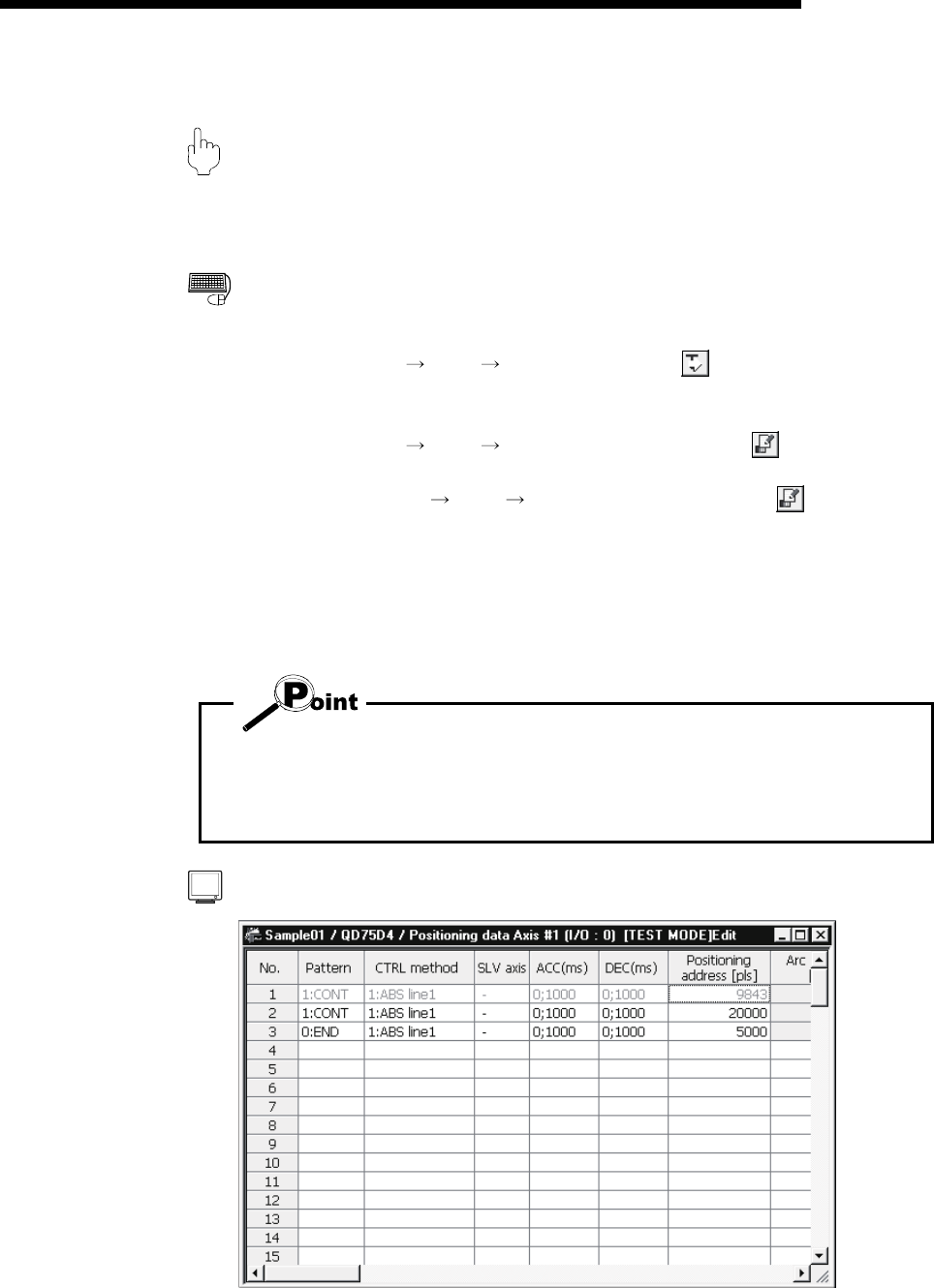

The data changed in the test mode are shown in green letters.
