11 - 18 11 - 18

MELSOFT

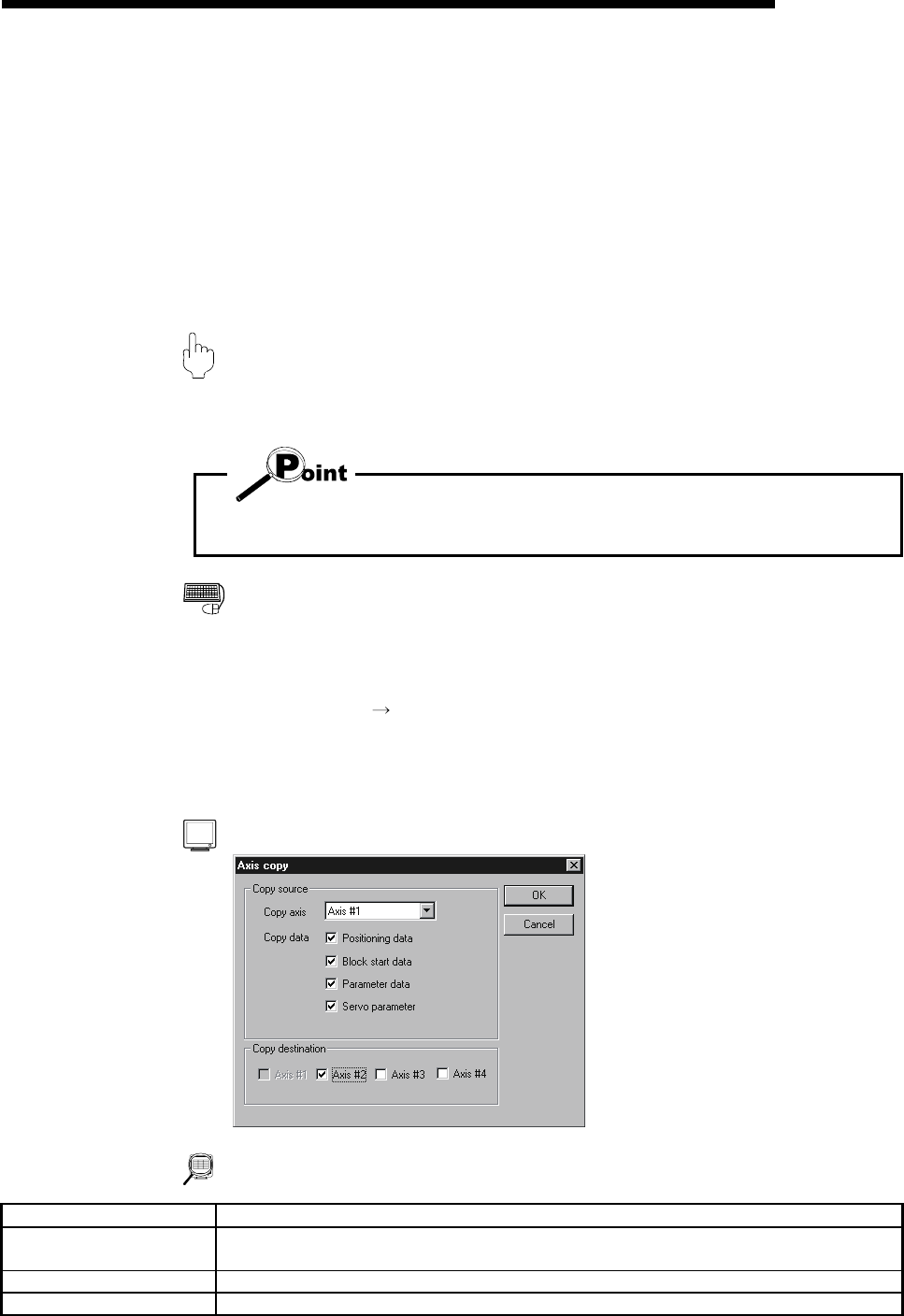

11. USEFUL FUNCTIONS

11.3 Copying the Data

Copy the positioning data, block start data, parameters and servo parameters, set to

the project axis-by-axis.

Also, copy the set block start data to another block.

When copying data to another project, use copy/paste of the edit function. (Refer to

Section 11.2.1.)

11.3.1 Copying the data on an axis basis (Axis copy)

PURPOS

Using the axis copy function, copy the positioning data, block start data,

parameters and servo parameters of any axis to another axis of the same project.

When the axis copy is performed, data may not match between the axes. After

performing the axis copy, please carry out an error check (refer to Section 8.6).

BASIC OPERATIO

1. Display any of the parameters (refer to Section 8.1), servo parameters (refer to

Section 8.2),positioning data (refer to Section 8.3) and block start data (refer to

Section 8.5) edit windows.

2. Click the [Edit]

[Axis copy] menu.

3. Set the axis of the copy source, the types of the data to be copied, and the axis

of the copy destination.

4. Click the "OK" button.

DISPLAY/SETTING SCREE

DISPLAY/SETTING DATA

Item Description

Copy source data

Choose the axis of the copy source and set the data to be copied.

The block start data includes condition data.

Copy destination Set the axis of the copy destination.

"OK" button Click this button to copy the data.
